eX-9042 13 Digital Outputs, Isolated, for RS485

Scaled Prices
starting 127,33
including VAT plus shipping
min Quantity
1 piece
Unit price
base price
Variants
technical Question?
recommend by email
close
Please fill in all fields.
Question Type
Your E-mail Adress
My Question:
Please validate that you are not a robot.
Description
Accessories
Files/Downloads

Benefits of the eX-9042 with 13 Isolated Digital Outputs

  • 13 digital outputs, isolated.
  • Detachable screw terminal connectors.
  • Compact modules, DIN-rail/wall mountable.

eX-9042 13 Digital Outputs, Isolated, for RS485

The eX-9042 industrial modules are the ideal solution for decentral/distributed, PC-controlled acquisition or output of digital signals. They are compact, rugged and have a high noise immunity - ideal for decentral remote-I/O DAQ and control networks. They are DIN-rail or wall-mountable. RS485 is used for simple and inexpensive 2-wire connectivity.

  • Industrial modules with RS485, MODbus-RTU for decentral/remote networking applications.
  • 13 digital outputs, isolated.

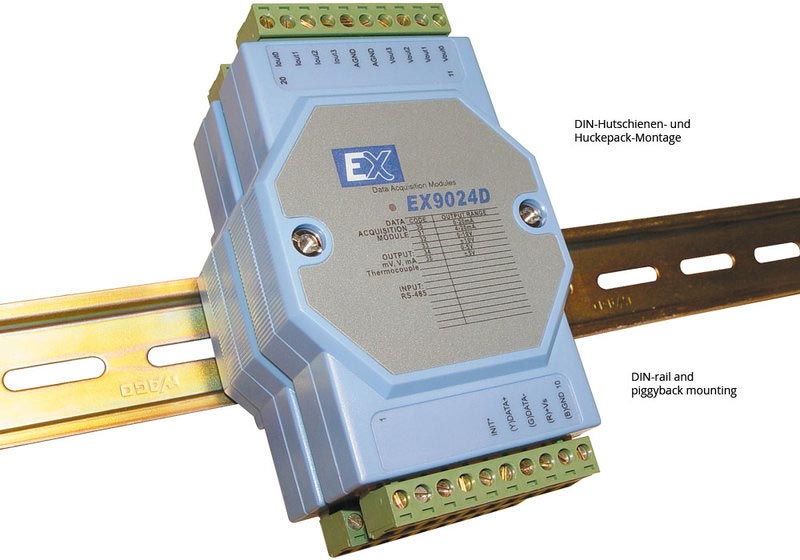

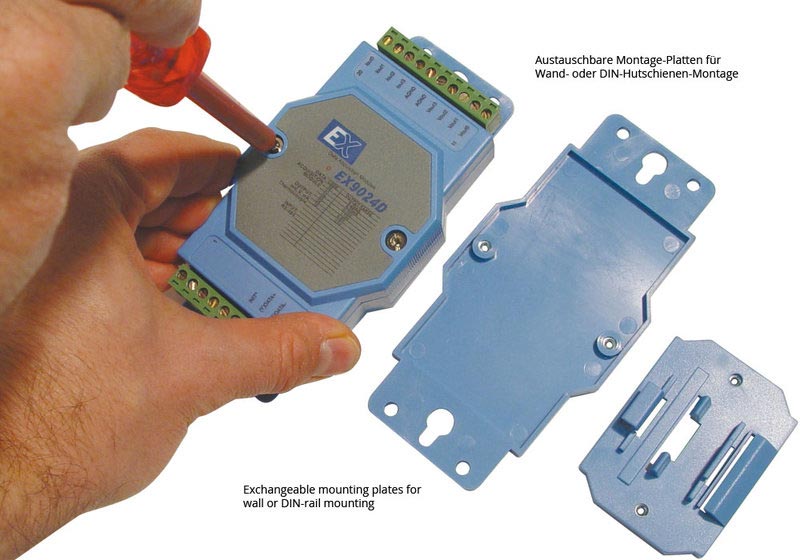

  • DIN-rail or wall mountable - DIN-rail and wall mounting kit both included.
  • Pluggable screw terminals (signal connections, RS485, "INIT").
  • "INIT" input: Module reset.
  • Extended temperature range (-25...+70°C).
  • Galvanic isolation of input to output.
  • Configuration: Manual or with software (included).
  • Power supply 10...30 VDC.
  • Sizen (cm, without connectors) approx. 7 (W) x 10 (L) x 2 (H). Rugged plastiv housing.
  • Hard- and software watchdog.

Model Overview

ModeleX-9042
Available versionseX-9042DeX-9042D-M
Digital outputs13 open-collector, max. load DC 100 mA/30 V
Isolation3750 V with common source
Power consumption1.7 W
LED display for channels
CommunicationRS485, 300...115200 bpsModbus-RTU RS485, 300...115200 bps

Included: Module, DIN-rail and wall mounting kit, user manual, driver CD.
