Benefits of the eX-9041 with 14 Isolated Digital Inputs

  • 14 digital inputs, isolated.
  • Pluggable screw connection terminal.
  • Module für Wand-/DIN-Hutschienen-Montage.

eX-9041 14 Digital Inputs, Isolated, for RS485

The eX-9041 industrial modules are the ideal solution for decentral/distributed, PC-controlled acquisition or output of digital signals. They are compact, rugged and have a high noise immunity - ideal for decentral remote-I/O DAQ and control networks. They are DIN-rail or wall-mountable. RS485 is used for simple and inexpensive 2-wire connectivity.

  • Industrial modules with RS485, MODbus-RTU for decentral/remote networking applications.
  • 14 digital inputs, isolated.

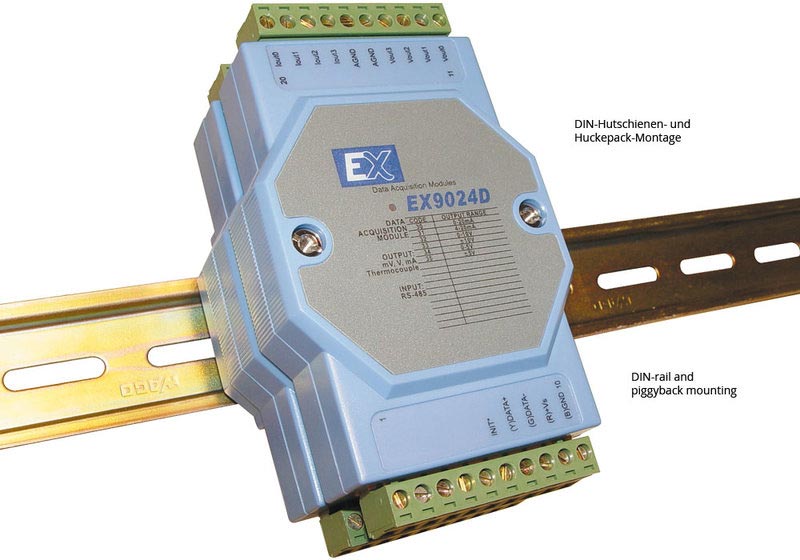

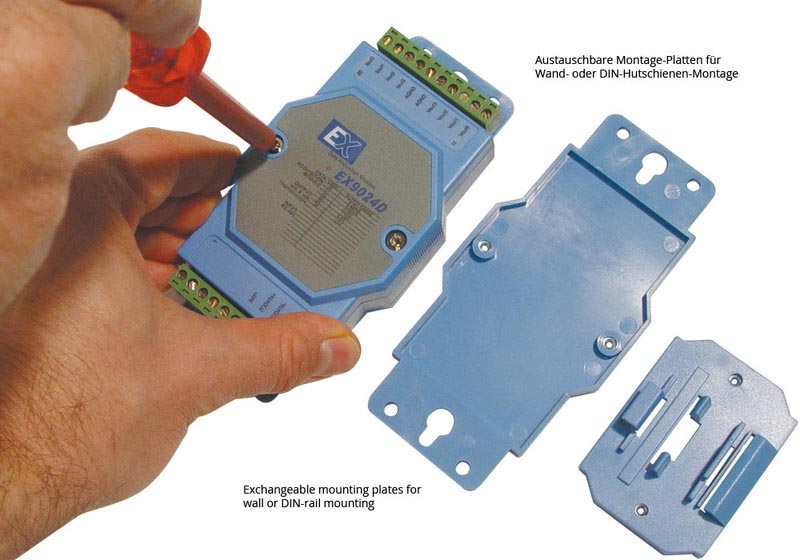

  • DIN-rail or wall mountable - DIN-rail and wall mounting kit both included.
  • Pluggable screw terminals (signal connections, RS485, "INIT").
  • "INIT" input: Module reset.
  • Extended temperature range (-25...+70°C).
  • Galvanic isolation of input to output.
  • Configuration: Manual or with software (included).
  • Power supply 10...30 VDC.
  • Sizen (cm, without connectors) approx. 7 (W) x 10 (L) x 2 (H). Rugged plastiv housing.
  • Hard- and software watchdog.

Model Overview

ModeleX-9041
Available versionseX-9041DeX-9041D-M
Digital inputs14 single-ended, log. 0: 0...1 V, log. 1: 4...30 V, input resistance 3 kΩ
Isolation3750 V with common source
Power consumption0.9 W
LED display for channels
CommunicationRS485, 300...115200 bpsModbus-RTU RS485, 300...115200 bps

Included: Module, DIN-rail and wall mounting kit, user manual, driver CD.
