Keysight E3634A Power Supply 200W
EOL/this product is obsolete and not available anymore from the manufacturer. You can find the current Keysight power supplies ▸here.
Benefits of the E3634A 1-Channel Universal Power Supply with GPIB, RS232
- Reliable, proven 1-channel DC power supply, 200 W.
- Voltage 0...25/50 V, current 0...4/7 A.
- GPIB and RS232 interface.

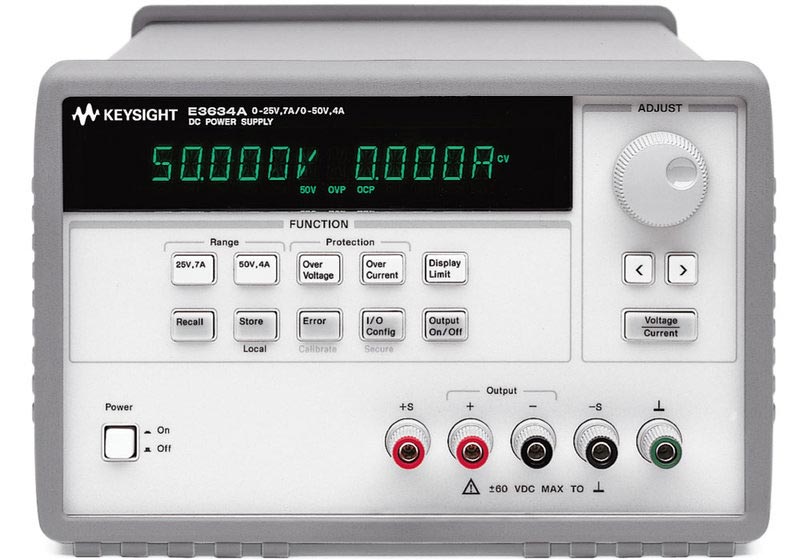

Keysight E3634A Power Supply 200W
The E3634A series are Keysight's versatile, universal, low-cost power supplies. These reliable devices are a good choice for labs, industrial test systems, R&D and more. 1 channel, 200 W power, GPIB, RS232.
- Low-cost, space saving power supplies. 1 channel, 200 W power, GPIB, RS232.
- High quality from Keysight (originally designed by Hewlett-Packard, also known as HP E36340A series or Agilent E3634A series).
- Made for long lasting, reliable operation.
Model Overview
| Model | Channels | Interface(s) | Range(s) | Max. power | Size (mm) |
| E3634A | 1 | GPIB, RS232 | Range 1: 0...25 V; 7 A Range 2: 0...50 V; 4 A |
200 W | 213 x 133 x 348 |
Included: Power supply E 3634A, user and service guide, product reference CD, AC power cord.
Software: Keysight I/O Library, IVI-COM, software support for VEE and LabVIEW.
Note: The recommended calibration interval for these devices is 12 months. Call or send an E-Mail for more information on calibration!
Agilent’s Electronic Measurement Group is now Keysight Technologies.
