Keysight E36313A Programmable DC Power Supply 160W, 3 Channel
Benefits of the E36313A Tripple DC Power Supply/Source
- Rugged, reliable quality from Keysight. Power up to 160 W.
- Large, color display.
- LAN (LXI), USB, digital-I/O port, GPIB optional.
Keysight E36313A Programmable DC Power Supply 160W, 3 Channel
The Keysight E36313A is a programmable DC power supply with 3 channels. The maximal power is 160 W. Due to the color coding of the channels and a large display, the power supply is intuitive and easy to use. It can be controlled from a PC via LAN (LXI), USB, and optional GPIB. The device has a high accuracy and a variety of versatile functions.
- 3 outputs.
- 6 V, 10 A and 2x 25 V, 2 A, 160 W.

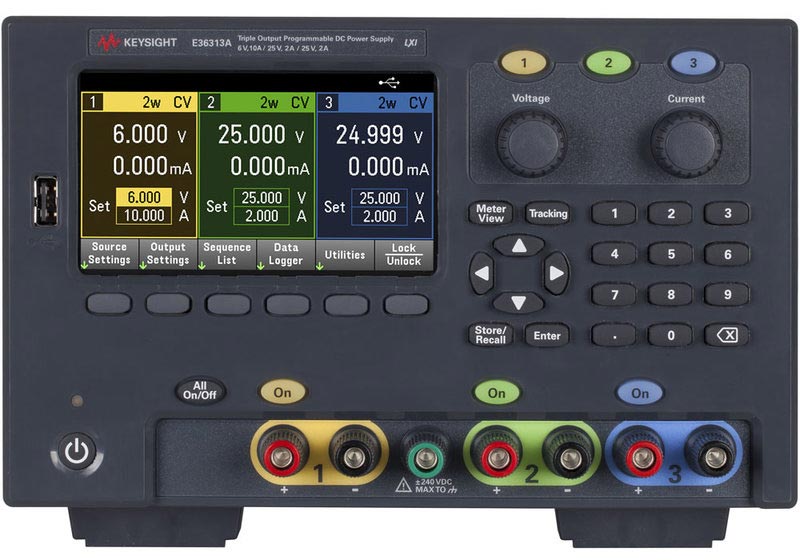

- Easy to use due to color coded channels and individual knobs for currrent/voltage.
- LAN (LXI), USB, optional GPIB, digital-I/O port.
- Supported by BenchVue. BenchVue makes it simple to connect, control instruments, and automate test sequences.
- Individual on/off on all channels.
- Electrically isolated channels.

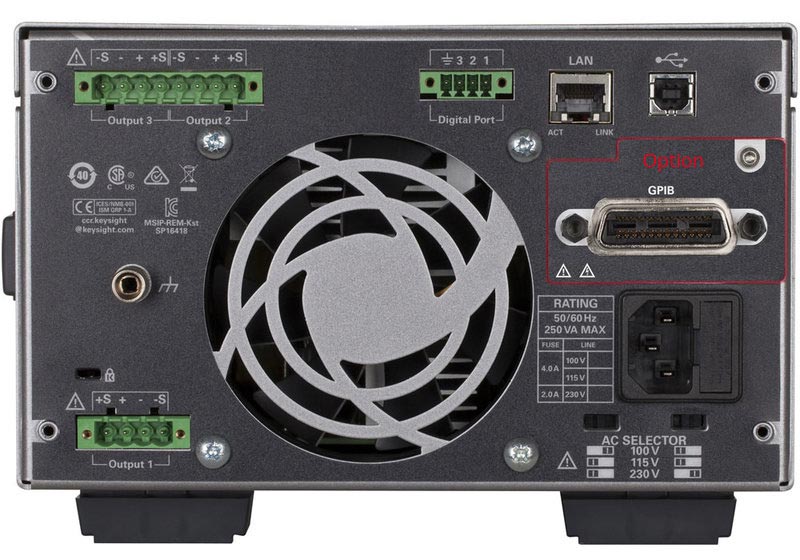

- Front and rear output terminals.
- Programming/readback accuracy: as low as 0.03%.
- Output ripple and noise: <2 mVpp/350 µVRMS.
- Line/load regulation: 0.01%.
- Transient response time: <50 µsec.
- Low current measurement: <80 µA.
- Low acoustic noise.
- Auto series/parallel connections.
- 2-wire or 4-wire remote sense.
- Additional functions: Data logging, output sequencing, output LIST, output coupling, tracking, triggering.
- Over voltage, over current and over temp protection.
Model Overview
| Model | E36313A | ||
| Power | 160 W | ||
| Channels | 1 | 2 | 3 |
| Voltage | 0...+6 V | 0...+25 V | 0...+25 V |
| Current | 0...10 A | 0...2 A | 0...2 A |
| Output ripple and noise (20 Hz...20 MHz) | <350 µVRMS/2 mVPP | <1 mVRMS/5 mVPP | |
| Accuracy* - voltage | 0.03% +3 mV | 0.03% +5 mV | |
| Accuracy* - current | 0.05% +4 mA | 0.04% +3 mA | |
| Up full load | 15 ms | 50 ms | |
| Up no load | 15 ms | 25 ms | |
| Interfaces | USB, LAN, optional GPIB | ||
| Size (HxWxD, mm) | 145 x 216 x 367, 9.8 kg | ||
Options
| Option | Description |
| Opt. 0E3 | Standard: 230 VAC ±10% - AC 230 V single-phase 3-wire. 230 VAC ±23 V operation, 50/60 Hz. |
| Opt. 0EM | On request: 115 VAC ±10% - AC 230 V single-phase 3-wire. 230 VAC ±23 V operation, 50/60 Hz. |
| Opt. 0E9 | On request: 100 VAC ±10% - AC 100 V single-phase 3-wire. 100 VAC ±10 V operation, 50/60 Hz. |
* 12 months (25ºC +5ºC); programming accuracy ±(% of output + offset)
Included: Device, power cable, user documentation, Connector kit (E36312-89001) with 1x 10 A, 3.5 mm female 4-pin terminal block connector, 1x 12 A, 5 mm female 4-pin terminal block connector, 1x 15 A, 5 mm female 8-pin terminal block connector.
Note: The recommended calibration interval for these devices is 12 months. Call or send an E-Mail for more information on calibration!
Agilent's Electronic Measurement Group is now Keysight Technologies.
