Benefits of the Keysight E36104B 1-Channel DC Power Supplies for Accurate, Reliable Power

  • Large OLED, USB and Ethernet/LXI standard.
  • Compact and quiet - the ideal soliution for rack and benchtop.
  • New generation "B" with improved ripple noise performance.

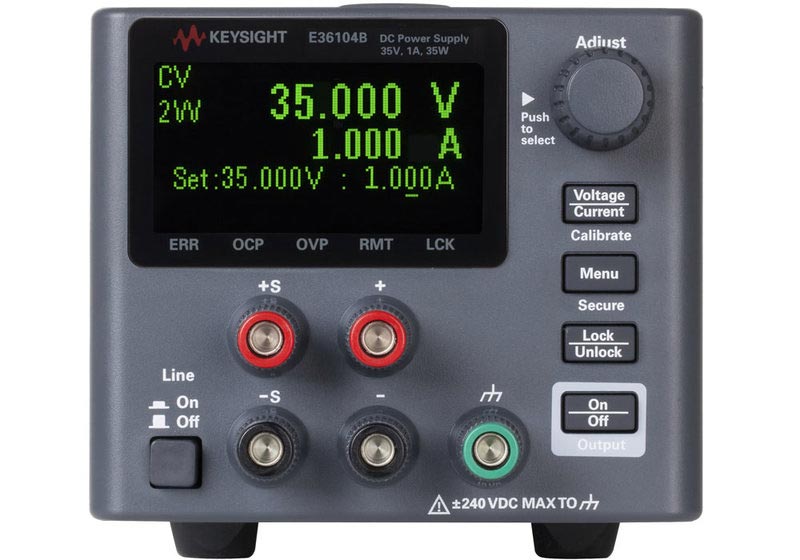

Keysight E36104B Programmable DC Power Supply 35 W/35 V/1 A

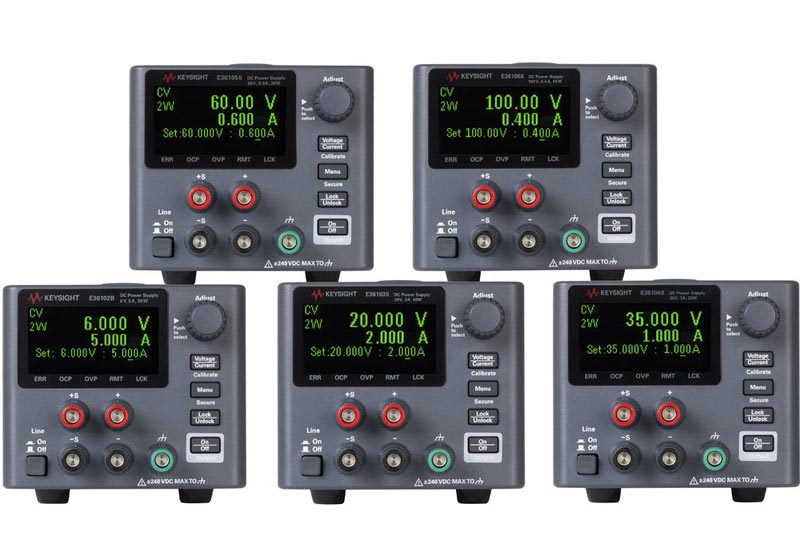

The Keysight E36100B Series DC power supplies let you power your device...

  • via manual front-panel operation,
  • remote soft front panel operation,
  • or with semi-automatic or fully automatic procedures.

Power your DUT with excellent voltage and current programming and readback accuracy: 1 channel, 35 W/35 V/1 A. Use the power supply's highly accurate low-current measurement feature for demanding measurements. Protect your DUT with built-in overvoltage and overcurrent protection, and count on the built-in overtemperature protection to keep your power supply safe.

  • Modern I/O - USB and LAN (LXI Core).
  • Ease of use, intuitive menuing.
  • Easy to read: High contrast OLED display - clear from even sharp angles.
  • Ability to measure small currents.
  • Full BenchVue support. BenchVue makes it simple to connect, control instruments, and automate test sequences.

Model Overview

Model E36104B
Output channels 1
Max. voltage 35 V
Max. current 1 A
Power 35 W
Resolution - program* 2.1 mV | 60 µA
Resolution - readback* 1.4 mV | 40 µA | 280 nA
Resolution - program (meter)* 2 mV | 1 mA
Resolution - readback (meter)* 1 mV | 1 mA | 1 µA
Output ripple and noise (20 Hz to 20 MHz) RMS/Peak-Peak1,2 mV/20 mV
Interfaces LAN (LXI Core), USB 2.0 FS (TMC488)
Size (HxWxD, mm) Overall dimension 2 U, ¼ rack 102 x 106 x 365; 3.7 kg. Net dimension (without feet, strap handle and binding posts) 89 x 106 x 339; 3.6 kg

* Voltage, current, small current.

Included: Programmable DC power supply, AC power chord.

3Y Warranty & Keysight CARE

Agilent’s Electronic Measurement Group is now Keysight Technologies.
