DT9829 USB Multi-Sensor Measurement Module (6069-410-263)

Benefits of the DT9829 Software-Selectable Precision Measurement for Any Sensor

• Various sensors supported, software-selectable per channel.
• Thermocouples, RTDs, thermistors, resistance, bridge-based sensors, strain gauges supported.
• 24 bit A/D conversion up to 960 S/s.

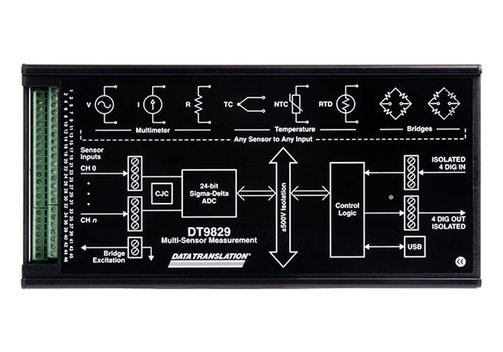

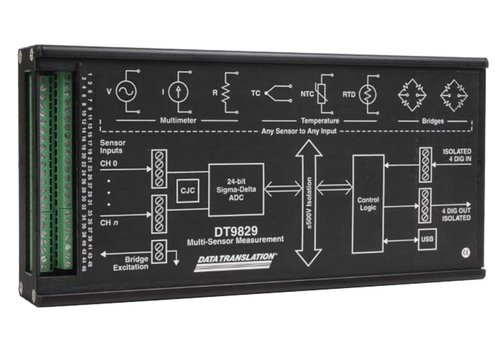

DT9829 USB Multi-Sensor Measurement Module

The DT9829 is an USB data acquisition and measurement module for multiple sensors. The DT9829 software is used to select from many sensor types and their parameters: voltage inputs, current, thermocouples, RTDs, thermistors, resistance, bridge-based sensors, and strain gauges.

• 8 analog input channels.
• Direct connection of many types of sensors - software-selectable per channel:
  • Thermocouples: B, E, J, K, N, R, S, and T types.
  • RTD: Pt100, Pt500, Pt1000 - 2-, 3-, and 4-wire.
  • Thermistors: 2-, 3-, and 4-wire.
  • Bridge-based sensors: internal 3.0 VDC excitation, ±200 mV input range.
  • Voltage: ±10 V,±2 V, ±200 mV input range.
  • Current: ±25 mA.
  • Resistance: 0 to 200 kΩ, 2-, 3, and 4-wire.
  • 3-wire configurations provide lead wire compensation
• Software-selectable sensor type and parameters to configure, record and analyze each channel.
• Each input channel independent - no interactions between sensors on any channel.
• Sample rates up to 960 S/s.
• 24 bit sigma-delta A/D converter eliminates aliasing for extremely accurate measurements.
• Thermocouple CJC and open circuit detection.
• 4 isolated digital inputs and 4 isolated digital outputs.
• ±500 V galvanic isolation to PC and ground.
• USB 2.0 powered, no extra power supply needed.
• Terminal block/screw terminals connections.
• Connects to a PC via USB 2.0 high-speed.
