Digilent DT9824 Isolated USB Data Acquisition Module

€ 2.569,21

including VAT free shipping (Germany)

min/max Quantity

1 - 1 piece

Unit price

base price

Item available at short notice. Delivery Time ~7-14 workdays

technical Question?

Please fill in all fields.

Question Type

Your E-mail Adress

My Question:

Please validate that you are not a robot.

I accept the Privacy Policy

Description

Files/Downloads

Benefits of the DT9824 (6069-410-135) With High Stability and High Accuracy

4 simultaneous, isolated analog inputs with 24 bit resolution.
8/8 isolated digital I/O channels.
High accuracy and high stability.

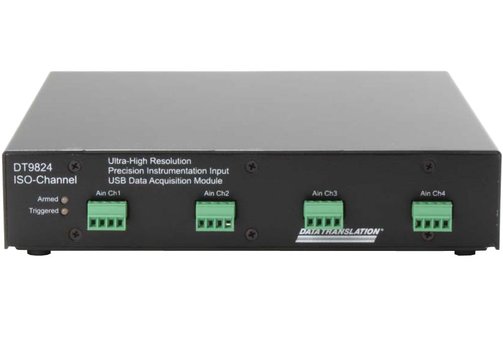

Digilent DT9824 Isolated USB Data Acquisition Module

The Digilent DT9824 is an USB data acquisition (DAQ) module with high stability and accuracy for measuring analog signals. Every signal input, both analog and digital, is fully isolated from each other, which guarantees that all signals are protected from any environmental or system noise.

4 simultaneous analog inputs with 24 bit delta sigma A/D converters.
±10 V input range.
Sampling rates up to 4800 S/s per channel.
±500 V galvanic channel-to-channel isolation for high noise immunity.
8 digital inputs, 8 digital outputs, isolated up to 250 V.
Compatible with LabVIEW and MATLAB.
Includes free QuickDAQ software for quick setup.
Connects to PC via USB 2.0, powered via USB.

Model Overview

Model		DT9824 (6069-410-135)
Analog input channels	Number	4, simultaneous, ±500 V galvanic isolation (channel-to-channel for high noise immunity)
	Resolution	24 bit
	Ranges	±10 V, ±1.25 V, ±0.625 V, ±0.3125 V
	Sample rate	Up to 4800 S/s per channel
	Triggers	External, software
	Accuracy etc.	10 ppm accuracy; temperature coefficient ±0.05 µV/°C; CMRR greater than 150 dB; 1.5 ppm maximum noise
Digital-I/O	Inputs	8, opto-isolated to 250 V; read the digital input port through analog input range +3 VDC to +28 VDC; switching time max. 2 ms
Digital-I/O	Outputs	8, opto-isolated to 250 V; solid state relays, ±30 V and 400 mA_peak (AC or DC); switching time max. 2 ms
Connectivity	USB	USB 2.0; USB LED indicator; USB-powered
	Digital-I/O	37-pin D-sub connector (incl. trigger)
	Analog inputs	4 individual pluggable connectors

Included: DT 9824, software and user manual via download.
