Benefitsof the Keysight DSOX3000A Series Digital Storage Oscilloscopes

2- or 4-channel digital storage oscilloscope up to 1 GHz.
High waveform capture rate of 1,000,000 Wfms/s for more signal details.
Optional arbitrary waveform generator and voltmeter.

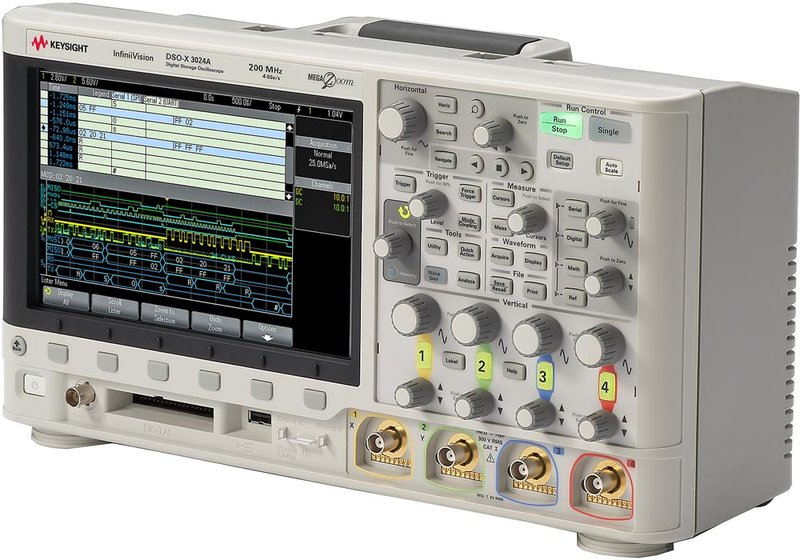

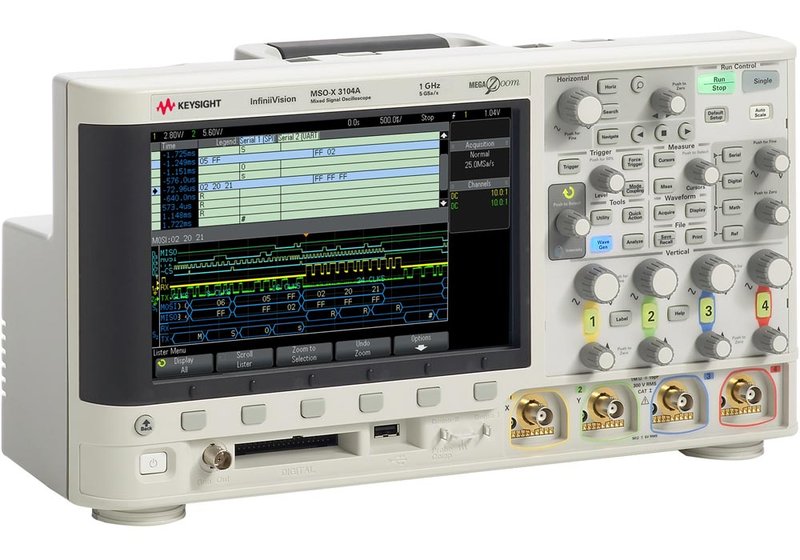

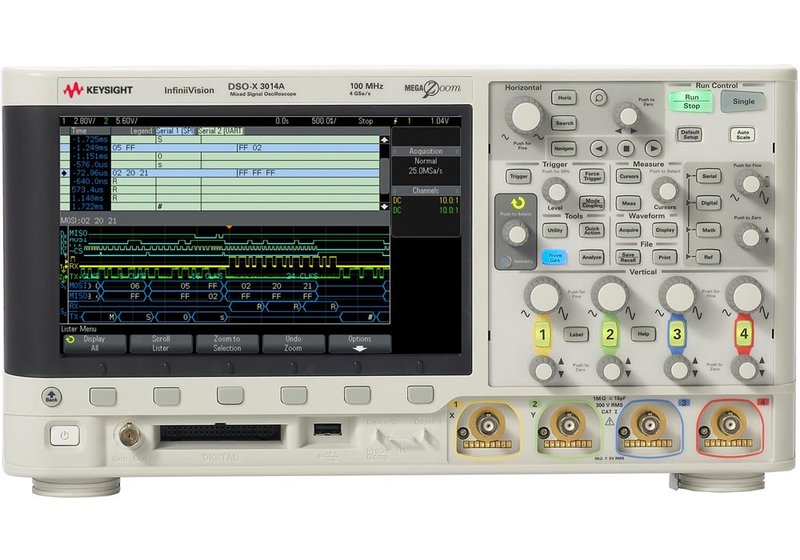

Keysight InfiniiVision DSOX3000A Series - 2-/4-Channel Oscilloscope up to 1 GHz

DSOX 3012A, 3014A, 3024A, 3032A, 3034A, 3052A, 3054A, 3102A, 3104A

The Keysight DSO/digital storage oscilloscopes from the InfiniiVision 3000A X-series offer an excellent performance and all the important functions and options you'll need for your measurement projects at a fair price. Various versions are available according to different requirements and budgets. The devices offer 2 or 4 analog channels and a bandwidth of up to 100, 200, 350, 500 MHz, or 1 GHz.

Bandwidth: 100, 200, 350, 500 MHz, or 1 GHz.
2 or 4 analog channels.
Sample rate: Up to 4 GS/s half-channel (5 GS/s for the 1-GHz-model), 5 GS/s all channels (2.5 GS/s for the 1-GHz-model).
Memory: 2 Mpts per channel (optional 4 Mpts).
Display: 8.5"/21.6 cm WVGA.
Update rate: 1,000,000 Wfms/s.
Waveform mathematics incl. FFT (windowing: Hanning, Flat Top, Rectangular, Blackman-Harris), automatic measurements, versatile trigger features.
Integrated 5 digit frequency counter (max. frequency = max. oscilloscope frequency).
Flexible upgrades, for example bandwidth, serial protocol analysis, DSO to MSO, warranty.
Optional segmented memory and mask/limit test.
Optional integrated arbitrary waveform generator up to 20 MHz with modulation functions.
Integrated 3 digit digital voltmeter.

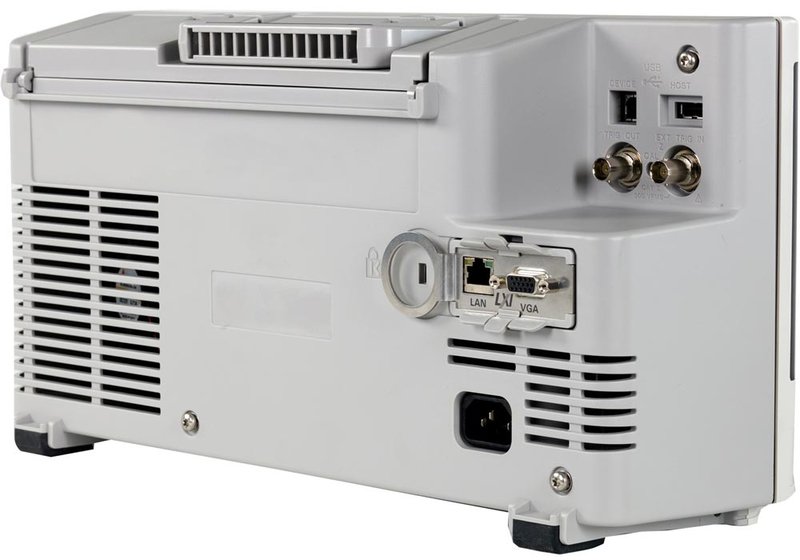

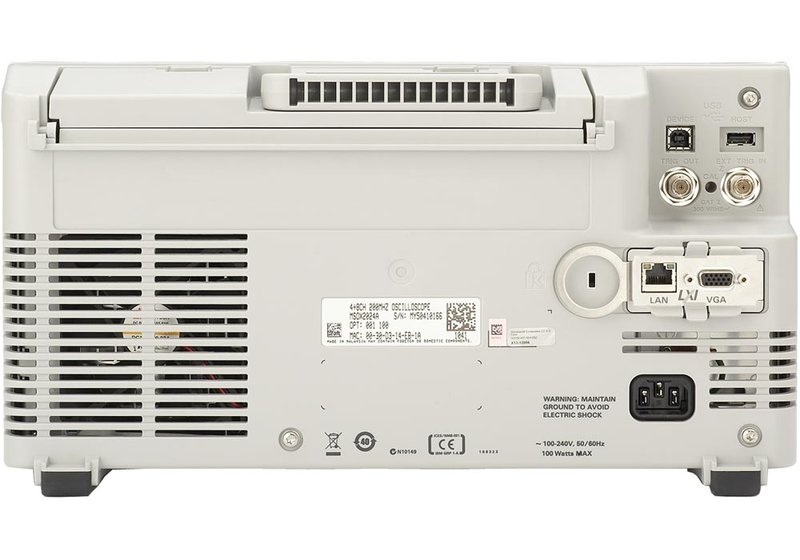

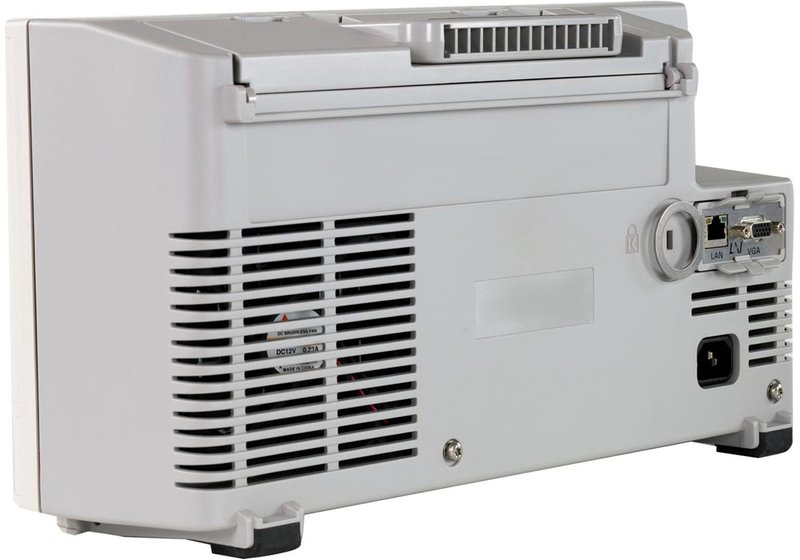

Interfaces: USB 2.0 Highspeed Host (2x) & Device (1x), optional Ethernet/LAN, optional VGA video Out.
BenchVue-ready. BenchVue makes it simple to connect, control instruments, and automate test sequences

Model Overview

Model	InfiniiVision X3000A Series
	DSOX3012A	DSOX3014A	DSOX3024A	DSOX3032A	DSOX3034A	DSOX3052A	DSOX3054A	DSOX3102A	DSOX3104A
Analog channels	2	4	4	2	4	2	4	2	4
Bandwidth	100 MHz		200 MHz	350 MHz		500 MHz		1 GHz
Sample rate	4 GS/s half-channel, 2 GS/s all channels		4 GS/s half-channel, 2 GS/s all channels	4 GS/s half-channel, 2 GS/s all channels		4 GS/s half-channel, 2 GS/s all channels		5 GS/s half-channel, 2.5 GS/s all channels
Waveform update rate	1,000,000 Wfms/s		1,000,000 Wfms/s	1,000,000 Wfms/s		1,000,000 Wfms/s		1,000,000 Wfms/s
Memory depth	2 Mpts standard, optional 4 Mpts max.		2 Mpts standard, optional 4 Mpts max.	2 Mpts standard, optional 4 Mpts max.		2 Mpts standard, optional 4 Mpts max.		2 Mpts standard, optional 4 Mpts max.
MegaZoom	✓		✓	✓		✓		✓
Logic analysis (mixed-signal)	- (upgradeable)		- (upgradeable)	- (upgradeable)		- (upgradeable)		- (upgradeable)
Signal generator	Optional: Standard waveforms sine (20 MHz), square/pulse (10 MHz), rampe/triangle (200 kHz), DC, noise (20 MHz), Sinc (1 MHz), exponential ries/fall (5 MHz), Cardiac (200 kHz), Gaussian pulse (5 MHz); arbitrary waveform: 1...8 kPoints, 10 bit resolution, sample-rate 100 MS/s, filter bandwidth 20 MHz; modulation: AM, FM, FSK
Voltmeter	Optional: AC_eff, DC, DC_eff, frequency; resolution ACV/DCV: 3 digits, frequency: 5.5 digits; measurement rate: 100 times per s
Counter	Source: Any analog or digital channel; resolution: 5 digits; max. frequency: Oscilloscope bandwidth
Display	8.5" (approx. 21.6 cm) WVGA (800 x 480)
Connectivity	USB Host & Device, optional Ethernet/LAN, optional GPIB

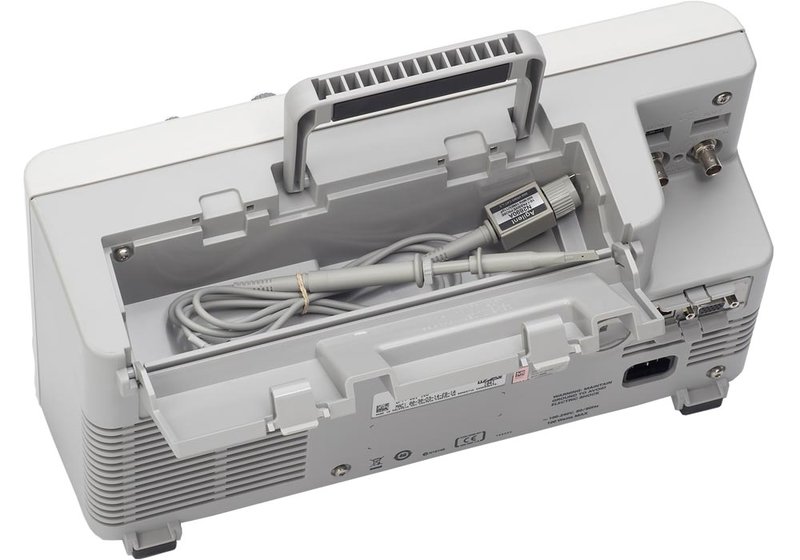

Included: InfiniiVision oscilloscope from the DSOX3000A series, power cord, 1 matching passive 10:1 probe per channel, standard SEC mode (secure environment), documentation CD, calibration certificate.

Software: Keysight I/O library, IVI-COM. Supported by the Keysight software BenchVue. BenchVue makes it simple to connect, control instruments, and automate test sequences

Note: The recommended calibration interval for these devices is 2 years. Call or send an E-Mail for more information on calibration!

3Y Warranty & Keysight CARE

Agilent's Electronic Measurement Group is now Keysight Technologies.
