DSCA47 Isolated Linearized Thermocouple Measurement Amplifiers
Description
Files/Downloads
DIN-Rail Mountable Transducers, Industrial Signal-Conditioning
DSCA47 Isolated Linearized Thermocouple Measurement Amplifier Module with Bandwidth 3 Hz
Like the 5B or 8B series, the DSCA47 from the DSCA series are modules for industrial signal conditioning. The difference is, that they don't require a backpanel, but can directly be mounted on DIN-rails.
- Imput for thermocouples type J, K, T, E, R, S, B, N min. -100°C to max. +1800°C.

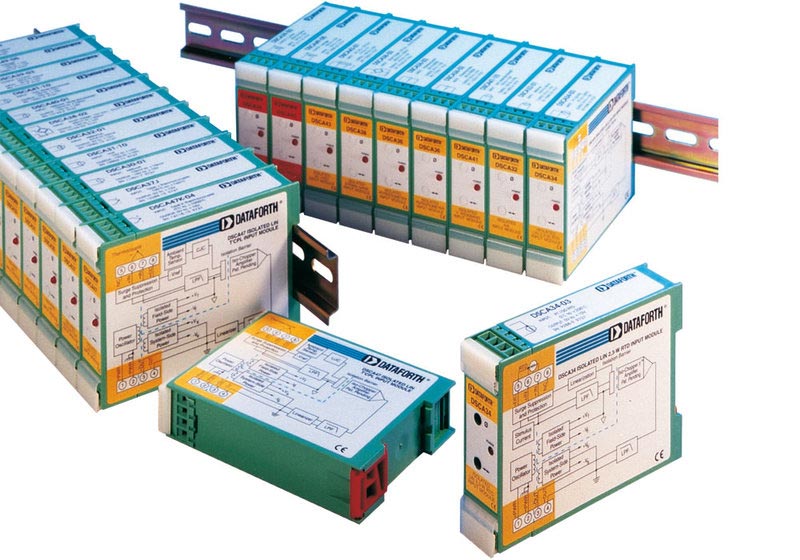

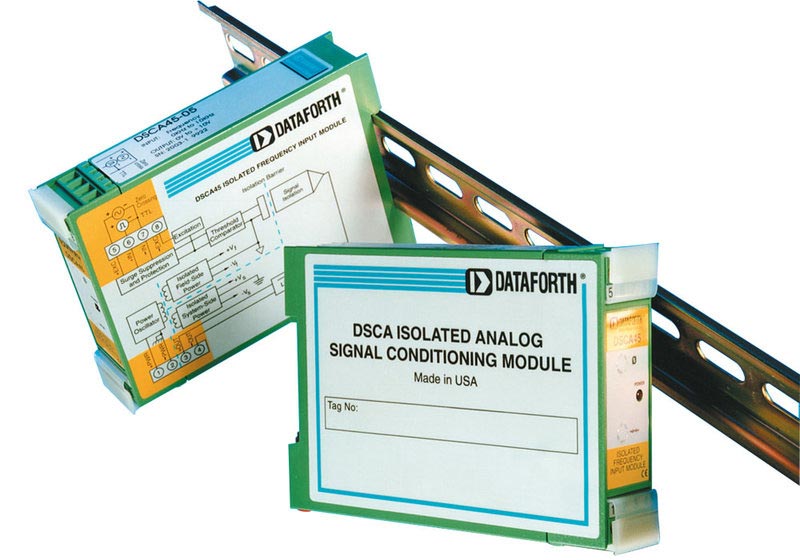

- 35 mm DIN-rail mountable.
- Pluggable screw terminals for signals and power.

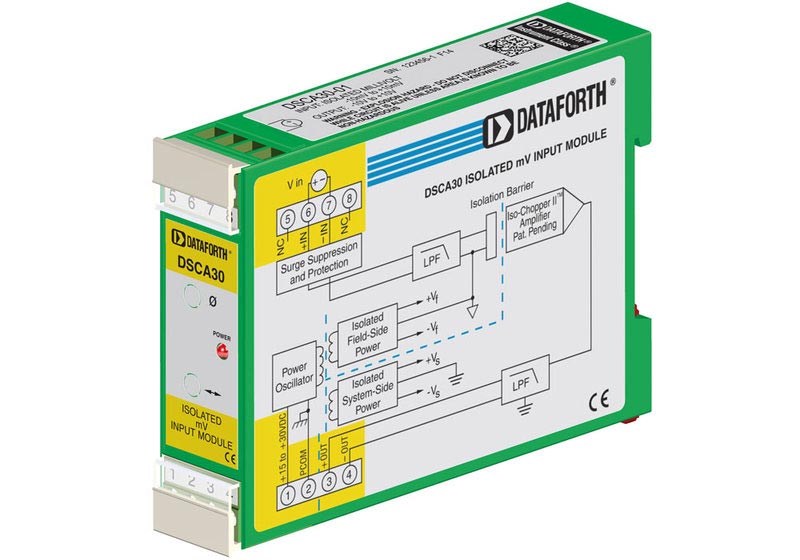

- Functional block diagram printed on the modules' enclosures.
- Power-on LED.
- High longtime stability.
- 3-way isolation up to 1.5 kV.
Model Overview
| Model | Thermocouple | Input | Output |
| DSCA47B-11 | B | +500...+1800°C | 0...10 V |
| DSCA47B-11C | B | +500...+1800°C | 4...20 mA |
| DSCA47B-11E | B | +500...+1800°C | 0...20 mA |
| DSCA47E-08 | E | 0...+1000°C | 0...10 V |
| DSCA47E-08C | E | 0...+1000°C | 4...20 mA |
| DSCA47E-08E | E | 0...+1000°C | 0...20 mA |
| DSCA47J-01 | J | 0...+760°C | 0...10 V |
| DSCA47J-01C | J | 0...+760°C | 4...20 mA |
| DSCA47J-01E | J | 0...+760°C | 0...20 mA |
| DSCA47J-02 | J | -100...+300°C | 0...10 V |
| DSCA47J-02C | J | -100...+300°C | 4...20 mA |
| DSCA47J-02E | J | -100...+300°C | 0...20 mA |
| DSCA47J-03 | J | 0...+500°C | 0...10 V |
| DSCA47J-03C | J | 0...+500°C | 4...20 mA |
| DSCA47J-03E | J | 0...+500°C | 0...20 mA |
| DSCA47K-04 | K | 0...+1000°C | 0...10 V |
| DSCA47K-04C | K | 0...+1000°C | 4...20 mA |
| DSCA47K-04E | K | 0...+1000°C | 0...20 mA |
| DSCA47K-05 | K | 0...+500°C | 0...10 V |
| DSCA47K-05C | K | 0...+500°C | 4...20 mA |
| DSCA47K-05E | K | 0...+500°C | 0...20 mA |
| DSCA47K-13 | K | -100...+1350°C | 0...10 V |
| DSCA47K-13C | K | -100...+1350°C | 4...20 mA |
| DSCA47K-13E | K | -100...+1350°C | 0...20 mA |
| DSCA47K-14 | K | 0...+1200°C | 0...10 V |
| DSCA47K-14C | K | 0...+1200°C | 4...20 mA |
| DSCA47K-14E | K | 0...+1200°C | 0...20 mA |
| DSCA47N-15 | N | -100...+1300°C | 0...10 V |
| DSCA47N-15C | N | -100...+1300°C | 4...20 mA |
| DSCA47N-15E | N | -100...+1300°C | 0...20 mA |
| DSCA47R-09 | R | +500...+1750°C | 0...10 V |
| DSCA47R-09C | R | +500...+1750°C | 4...20 mA |
| DSCA47R-09E | R | +500...+1750°C | 0...20 mA |
| DSCA47S-10 | S | +500...+1750°C | 0...10 V |
| DSCA47S-10C | S | +500...+1750°C | 4...20 mA |
| DSCA47S-10E | S | +500...+1750°C | 0...20 mA |
| DSCA47T-06 | T | -100...+400°C | 0...10 V |
| DSCA47T-06C | T | -100...+400°C | 4...20 mA |
| DSCA47T-06E | T | -100...+400°C | 0...20 mA |
| DSCA47T-07 | T | 0...+200°C | 0...10 V |
| DSCA47T-07C | T | 0...+200°C | 4...20 mA |
| DSCA47T-07E | T | 0...+200°C | 0...20 mA |
