DSCA43 Isolated LVDT Measurement Amplifiers
Description
Files/Downloads
DIN-Rail Mountable Transducers, Industrial Signal-Conditioning
DSCA43 Isolated LVDT Measurement Amplifier (Linear Variabel Differential Transformer) with 3 kHz Bandwidth

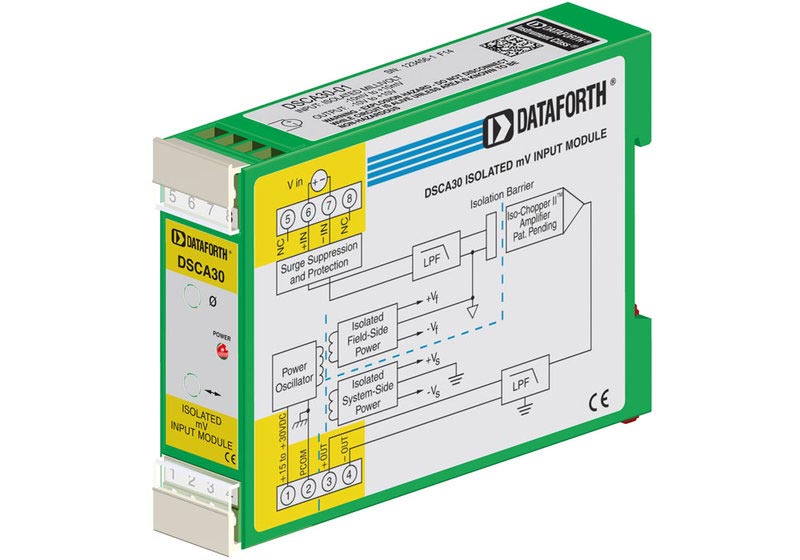

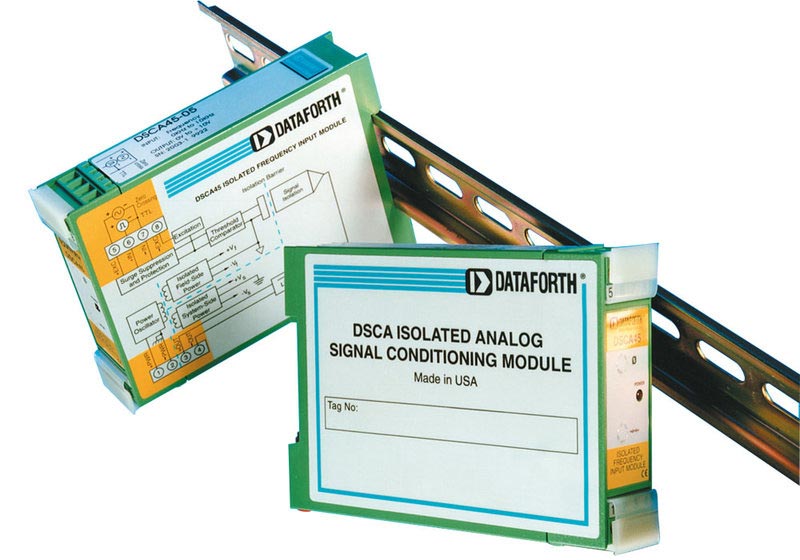

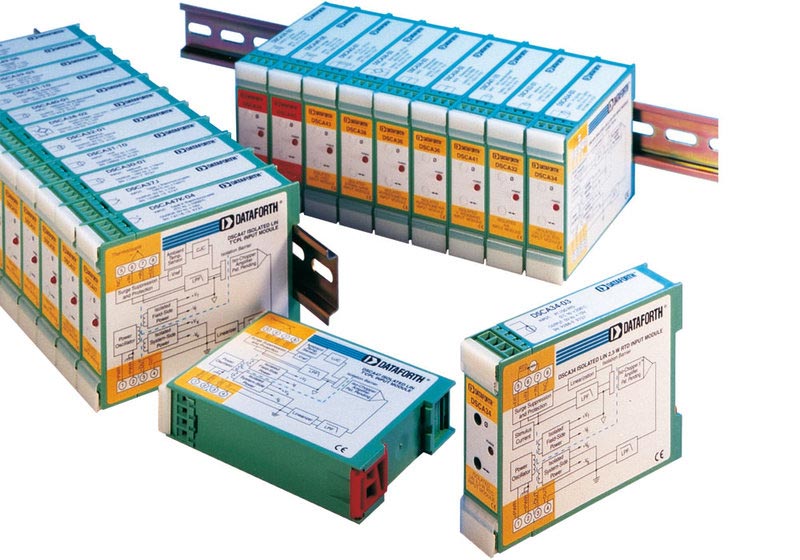

Like the 5B or 8B series, the DSCA43 from the DSCA series are modules for industrial signal conditioning. The difference is, that they don't require a backpanel, but can directly be mounted on DIN-rails.
- Input LVDT, ranges between ±1 and ±10 V.
- 35 mm DIN-rail mountable.
- Pluggable screw terminals for signals and power.
- Functional block diagram printed on the modules' enclosures.
- Power-on LED.
- High longtime stability.
- 3-way isolation up to 1.5 kV.
Model Overview
| Model | Input | Output |
| DSCA43-01 | ±1 V | ±10 V |
| DSCA43-02 | ±2 V | ±10 V |
| DSCA43-03 | ±3 V | ±10 V |
| DSCA43-04 | ±4 V | ±10 V |
| DSCA43-05 | ±5 V | ±10 V |
| DSCA43-06 | ±6 V | ±10 V |
| DSCA43-07 | ±7 V | ±10 V |
| DSCA43-08 | ±8 V | ±10 V |
| DSCA43-09 | ±9 V | ±10 V |
| DSCA43-10 | ±10 V | ±10 V |
| DSCA43-11 | ±1 V | 0...10 V |
| DSCA43-11C | ±1 V | 4...20 mA |
| DSCA43-11E | ±1 V | 0...20 mA |
| DSCA43-12 | ±2 V | 0...10 V |
| DSCA43-12C | ±2 V | 4...20 mA |
| DSCA43-12E | ±2 V | 0...20 mA |
| DSCA43-13 | ±3 V | 0...10 V |
| DSCA43-13C | ±3 V | 4...20 mA |
| DSCA43-13E | ±3 V | 0...20 mA |
| DSCA43-14 | ±4 V | 0...10 V |
| DSCA43-14C | ±4 V | 4...20 mA |
| DSCA43-14E | ±4 V | 0...20 mA |
| DSCA43-15 | ±5 V | 0...10 V |
| DSCA43-15C | ±5 V | 4...20 mA |
| DSCA43-15E | ±5 V | 0...20 mA |
| DSCA43-16 | ±6 V | 0...10 V |
| DSCA43-16C | ±6 V | 4...20 mA |
| DSCA43-16E | ±6 V | 0...20 mA |
| DSCA43-17 | ±7 V | 0...10 V |
| DSCA43-17C | ±7 V | 4...20 mA |
| DSCA43-17E | ±7 V | 0...20 mA |
| DSCA43-18 | ±8 V | 0...10 V |
| DSCA43-18C | ±8 V | 4...20 mA |
| DSCA43-18E | ±8 V | 0...20 mA |
| DSCA43-19 | ±9 V | 0...10 V |
| DSCA43-19C | ±9 V | 4...20 mA |
| DSCA43-19E | ±9 V | 0...20 mA |
| DSCA43-20 | ±10 V | 0...10 V |
| DSCA43-20C | ±10 V | 4...20 mA |
| DSCA43-20E | ±10 V | 0...20 mA |
