Benefits of the USB-200 Series Single Gain Multifunction USB DAQ Device
- Very compact multi-I/O boxes for USB, USB-powered.
- 12-bit resolution of A/D and D/A conversion; up to 100 or 500 kS/s.
- Versatile out-of-the box and driver software included.
Digilent USB-200 Series USB DAQ Mini-Lab for Small Budgets

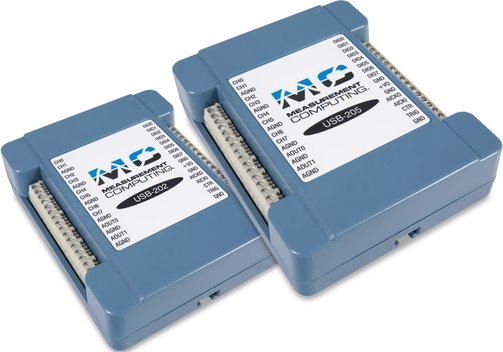

Digilent/MCC USB-202 and USB-205 Multifunctional USB DAQ Boxes
The Digilent/MCC USB-200 Series modules are very compact multifunctional DAQ boxes. They offer powerful measurement and control functions at a very low price. The modules have 8 single-ended analog inputs and 8 digital-I/O lines with TTL level as well as 2 analog output channels. The Screw terminals make wiring easy and flexible. Versatile support software for Windows is included.
- Compact USB multifunctional boxes for data acquisition and control.
- 8 single-ended analog input-channels.

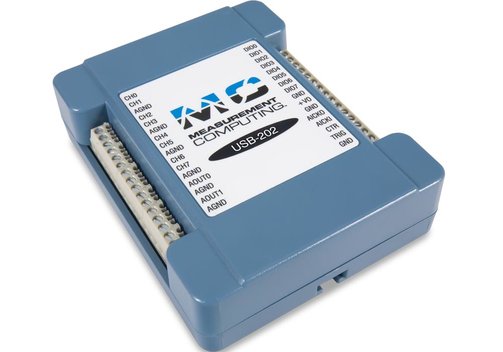

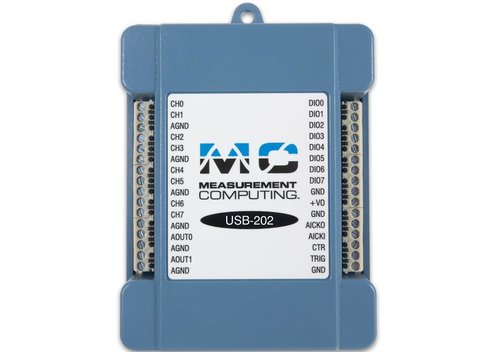

- USB-202: 12 bit, 100 kS/s sample rate.

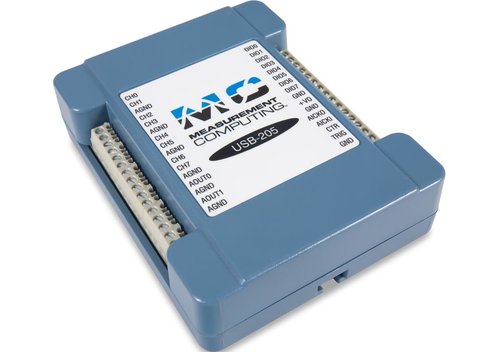

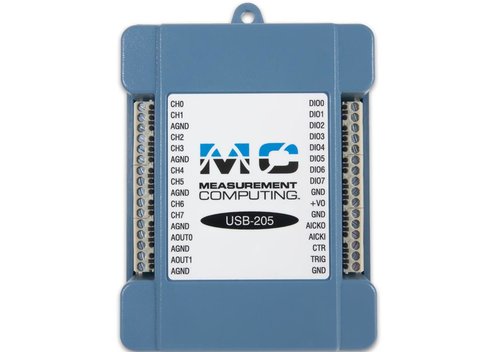

USB-205: 12 bit, 500 kS/s sample rate. - ±10 V input range.
- Two analog outputs with 12 bit resolution.
- 8 digital I/O lines.
- One 32 bit event counter input.
- External pacer I/O.
- USB-powered, no external power required.
- On request: OEM-versions, remove enclosure and screw terminals and add headers.
Model Overview
| Model | USB-202 | USB-202-OEM | USB-205 | USB-205-OEM(EOL/obsolete | |
| 6069-410-008 | on request | 6069-410-009 | on request | ||
| Analog input channels | Number | 8, single-ended | 8, single-ended | ||
| A/D conversion (resolution, max. rate) | 12 bit, 100 kS/s; internal or external pacer | 12 bit, 500 kS/s; internal or external pacer | |||
| Range | ±10 V | ±10 V | |||
| Analog output channels | Number | 2, single-ended | 2, single-ended | ||
| D/A conversion (resolution, update rate) | 12 bit, up to 125 S/s per channel, one output up to 250 S/s | 12 bit, up to 125 S/s per channel, one output up to 250 S/s | |||
| Range | 0...5 V | 0...5 V | |||
| Digital-I/O channels | Number, output current per pin | 8 discrete channels (each individually programmable as input ort output), TTL level, ±24 mA | 8 discrete channels (each individually programmable as input ort output), TTL level ±24 mA | ||
| Counters | Type, characteristics | 32 bit event counter input; input up to 1 MHz | 32 bit event counter input; input up to 1 MHz | ||
| Connectors | Screw terminals | Header connectors | Screw terminals | Header connectors | |
| USB and power | USB 2.0 FullSpeed, USB-powered | USB 2.0 FullSpeed, USB-powered | |||
| Dimensions(mm) | 118 x 83 x 29 | 98 x 77 x 15 | 118 x 83 x 29 | 98 x 77 x 15 | |
| Software | DAQami: Out-of-the-box application for data logging, visualization, and signal generation. Data can be viewed in real-time or post-acquisition on user-configurable displays. Drivers are included for the most popular applications and programming languages including Visual C++, Visual C#, Visual Basic.NET, DASYLab, LabVIEW, MATLAB, Linux, and Python | ||||
Included: USB 202 or 205, USB cable, printed insert: DAQami software quick start.
