Digilent Impedance Analyzer for Analog Discovery

Digilent Impedance Analyzer for Analog Discovery

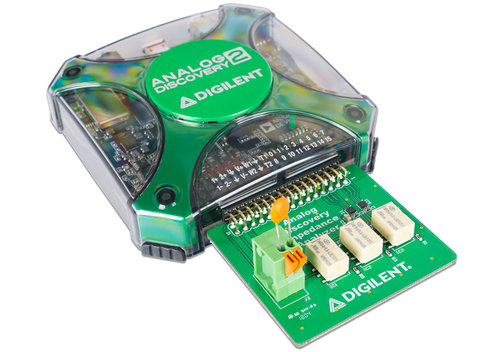

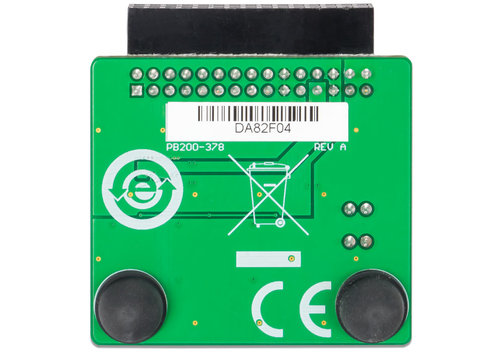

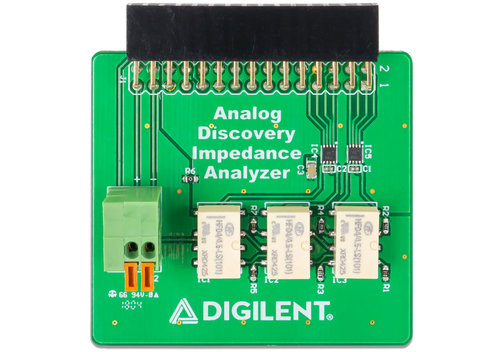

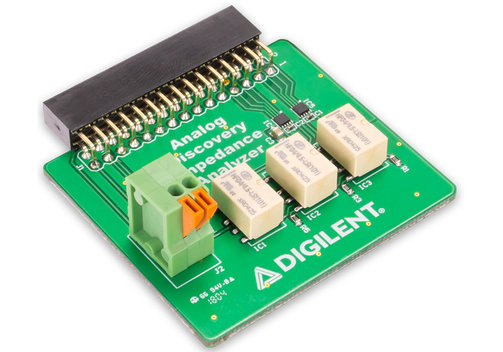

Easily connect your Analog Discovery's signals to a breadboard: The Digilent Impedance Analyzer (410-378) for Analog Discovery was designed with automatically adjusting reference resistors and relays to aid in use of the Impedance Analyzer tool in WaveForms. With the Impedance Analyzer accessory, the Analog Discovery will automatically select the most appropriate configuration for the attached unknown impedance. The Impedance Analyzer is loaded with the 2x15 Analog Discovery connector, which makes it compatible with Analog Discovery 2 as well as Analog Discovery Legacy.

• 2-wire Impedance Analyzer integrates with the Impedance Analyzer tool in WaveForms.
• 50 pF...500 µF capacitance measurement range.
• 10 µH...1000 mH inductance measurement range.
• 1 Hz...15 MHz excitation frequency range.
