Description
Files/Downloads

Benefits of the DPS3340 DC Power Supply up to 30 W Total

  • 3-channel USB-controlled programmable power supply.
  • Total 30 W (all channels, shared) - 15 W, 7.5 W, 7.5 W.
  • Supported by the WaveForms software application.

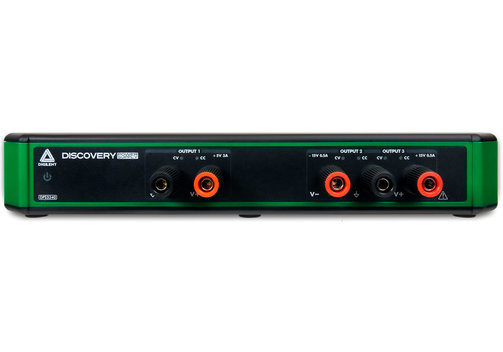

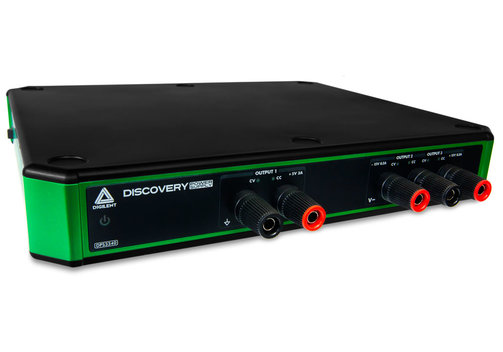

Digilent DPS3340 Discovery 3-Channel Programmable Power Supply

The Digilent Discovery DPS3340 is 3-channel an USB programmable power supply. Providing both constant voltage and constant current modes with built in readback sensors and optional tracking for the output channels, you can confidently power your circuits according to your requirements.

  • 3-channel USB-controlled programmable power supply.
  • +1 V to 5 V/10 mA to 3 A output.
    -1 V to -15 V/-10 mA to -500 mA output.
    +1 V to 15 V/10 mA to 500 mA output.
  • Optional tracking between the -15 V and 15 V outputs.
  • Overcurrent protection options provided through WaveForms softwar application.
  • Auxiliary powered 19 V ±5%, 3.2 A max., 60 W max.
  • USB 2.0 HiSpeed.
  • Supported by the WaveForms software application.

Model Overview

ModelDPS3340
410-395
DC output123
Voltage+1...+5 V-1...-15 V+1...+15 V
Current+10 mA...+3 A-10 mA...-500 mA+10 mA...+500 mA
Max. power30 W (all channels, shared)
15 W7.5 W7.5 W
Programming resolution, voltage/current0.36 mV/0.19 mA0.97 mV/0.03 mA0.97 mV/0.03 mA
Programming accuracy, voltage/current±15 mV/15 mA±15 mV/8 mA±15 mV/5 mA
Readback resolution, voltage/current7.8 mV/0.81 mA7.8 mV/0.15 mA7.8 mV/0.15 mA
Readback accuracy, voltage/current±30 mV/±10 mA±20 mV/±5 mA±20 mV/±5 mA
Load regulation, voltage±Iout 0.06 V/A±Iout 0.15 V/A±Iout 0.15 V/A
Ripple and noise, 20 MHz bandwidth, voltage/current<30 mVPP/<7 mAPP<10 mVPP/<5 mAPP<25 mVPP/<3 mAPP

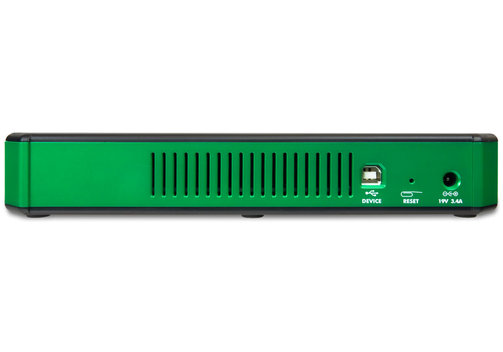

Interface to PCUSB 2.0 HiSpeed, type-C
Power requirementsAuxiliary powered, 19 V ±5%, 3.2 A max., 60 W max.; external power supply included (5.5 mm x 1.65 mm, center positive)
Dimensions (mm)234 x 194 x 38; 704 g

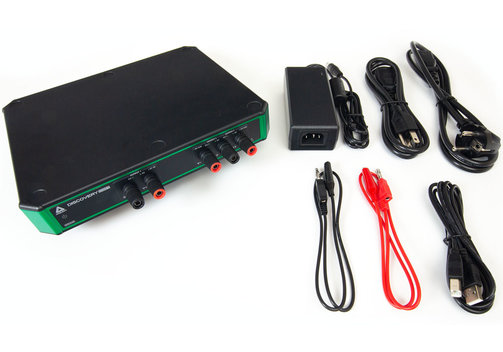

Included: DPS 3340, 1x red and 1x black alligator clip to banana plug cable, 19 V/3.4 A power supply, European and US IEC cables, USB A-to-B cable.

Information on product safety:

Manufacturer:
Digilent (now a part of Emerson), 1300 NE Henley Ct. Suite 3, Pullman, WA 99163/USA
www.digilent.com

Responsible person:
Meilhaus Electronic GmbH, Am Sonnenlicht 2, 82239 Alling/DEU
