Digilent DD Digital Discovery Multifunctional Digital-I/O Instrument
Benefits of the Digital Discover Logic Analyzer, Pattern Generator, and Digital-I/O Instrument
- 24 digital inputs and 16 digital-I/O channels.
- Rates with High Speed Adapter up to 800 MS/s.
- Supported by the WaveForms software application.
Digilent DD Digital Discovery Multifunctional Digital-I/O Instrument

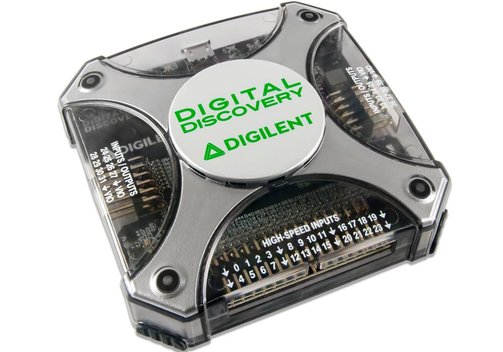

Digilent DD Digital Discovery combines multi-purpose digital-I/O channels, logic analyzer, pattern generator, and programmable power supply in a compact USB module. Makers, hobbyists, engineers and designers can use Digital Discovery to debug, visualize, and simulate digital signals for embedded projects.

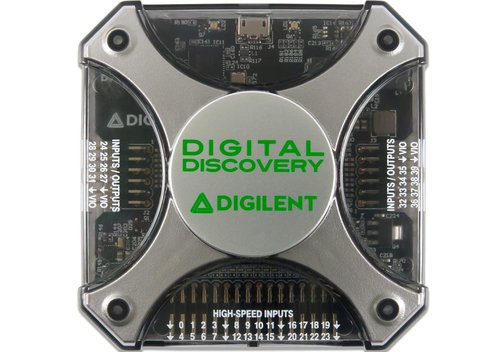

- 24 high-speed input pins, 100 MHz bandwidth, 560 kΩ||10 pF. Use as logic analyzer.
- 2 Gbit DDR3 acquisition buffer.
- 16 digital-I/Os. Use a smultipurpose I/O and/or pattern generator.
- Output buffer: 32 kSamples/channel.
- Automatic or manual strength and slew settings for outputs.
- User programmable DIN and DIO LVCMOS voltage levels from 1.2 V to 3.3 V (5-V compatible).
- User power supplies, 1.2 V to 3.3 V (100 mA max.).

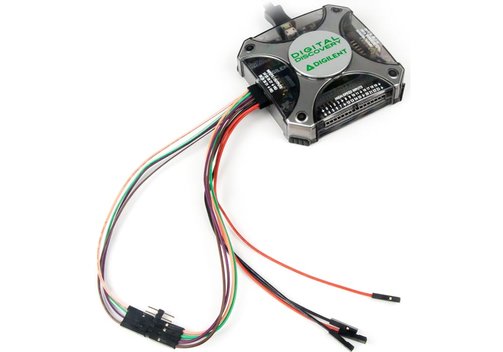

- Digital inputs and outputs can be connected to a circuit using simple wire probes or breadboard wires; alternatively, the Digital Discovery High Speed Adapter and impedance-matched probes can be used to connect and utilize the inputs and outputs for more advanced projects.
- Used as an alternative to the 2X16 flywire assembly.

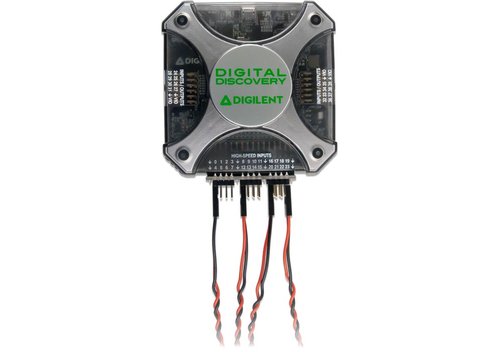

- Provides access for up to 24 high speed logic probes and allows increased sample rates for up 800 MS/s:
32-channel digital logic analyzer, 8 channels at 800 MS/s, 16 channels at 400 MS/s, and 32 channels at 200 MS/s.
- USB 2.0 connectivity, USB-powered.
- Supported by the WaveForms software.
Supported Instruments
| Supported instruments | Main features |
| Logic analyzer | 24 input channels, up to 200 MS/s, 800 MS/s with high-speed adaptor |
| Digital-I/O | 16 I/O channels, 100 MS/s |
| Pattern generator | 16 channels, shared with digital-I/O, 100 MS/s |
| Power supplies | see specifications below |
Model Overview
| Model | DD | DD High Speed Adapter Bundle | |
| 410-338 | 240-127 | ||
| Digital inputs | Number | 24 | Up to 24 high-speed; alternative to the 2x16 fly-wire assembly; provides access for 24 twisted cables |
| Functions | Logic analyzer | ||
| Specifications | Sample rate 32 channels: Up to 200 MS/s, 16 channels: Up to 400 MS/s, 8 channels: Up to 800 MS/s; in order to achieve sample rates higher than 200 MS/s, the high speed adapter and logic probes must be used; bandwidth 100 MHz; voltage range +1.2...+3.3 V (5-V compatible when used as inputs); buffer 2 Gbit DDR3 acquisition | ||
| Bus analyzers | UART, SPI, I2C, CAN, I2S, parallel, and custom | ||
| Digital-I/O | Number | 16 | |
| Functions | Multi-purpose digital-I/O, pattern generator | ||
| Sample rate | 100 MS/s | ||
| Bandwidth | 50 MHz max. output frequency | ||
| Voltage range | +1.2...+3.3 V (5-V compatible when used as inputs) | ||
| Buffer | 32 kS/ch; pattern generator: Algorithmic pattern generator (no buffers used) | ||
| Protocol analyzer | Channels | 16-32 | |
| Voltage range | +1.2...+3.3 V (inputs 5-V compatible) | ||
| Bus analyzers | UART: send and receive; SPI: read and write; I2C: read and write; CAN: Rx and Tx | ||
| Power supply | 2 channel, +1.2...+3.3 V, 100 mA max. output current | ||
| Interface | USB 2.0 HiSpeed to PC, USB-bus powered | ||
| Dimensions (mm) | 80 x 80 x 25; 80 kg | ||
| Software | WaveForms software application, SDK (supports Python, C, LabVIEW and others) | ||
Included: Digital Discovery, USB cable, fly-wire accessory (2x6 MTE cable, 2x16 MTE cable). Or High Speed Adapter Bundle
