Digilent Breadboard and Blank Canvas

The Digilent Breadboard and Blank Canvas offer a replaceable physical interface for the Analog Discovery Studio. The large surface features solderless breadboards or soldering protoyping.

Model Overview

Model	Breadboard Canvas	Blank Canvas	Blank Canvas with two solderless breadboards	Digital Trainer Canvas
	410-385	410-391	471-032	410-428

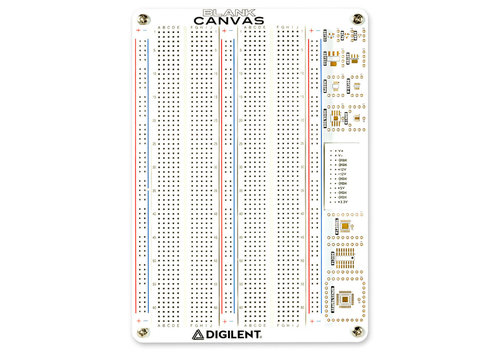

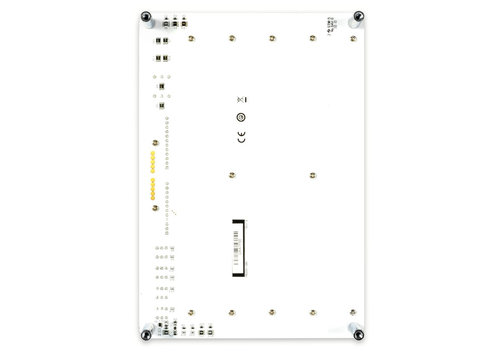

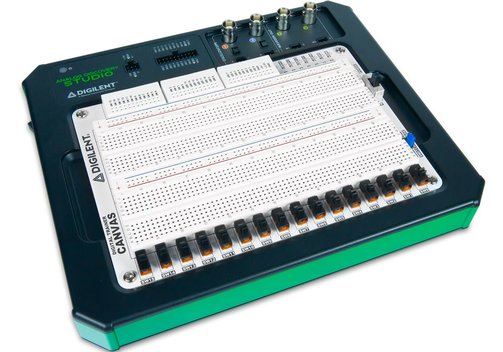

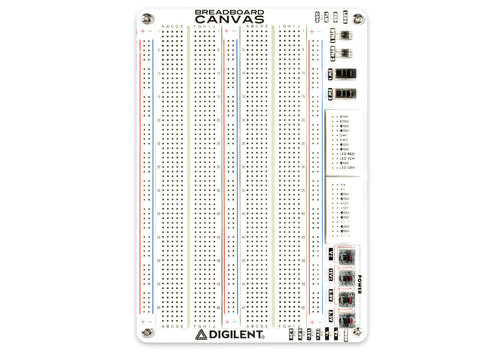

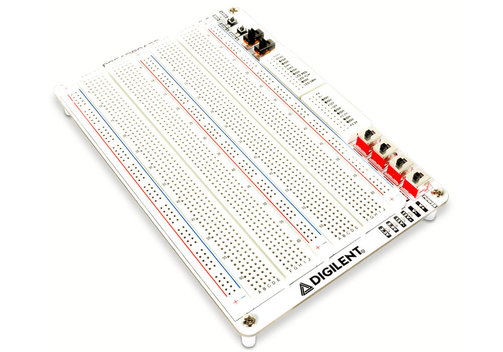

Description	The Breadboard Canvas adds a large breadboard surface, breadboard access to Analog Discovery Studio pins, power switches, and a variety of common devices to the Analog Discovery Studio	The Blank Canvas adds a large prototyping surface, power supply breakouts, and a variety of IC breakouts, all solderable, to the Analog Discovery Studio. Version 471-032 with two solderless breadboards		The Digital Trainer Canvas adds a large breadboard surface, breadboard access to Analog Discovery Studio pins, power switch, and a variety of built-in components to the Analog Discovery Studio

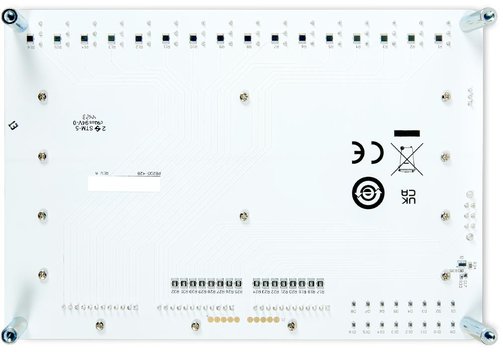

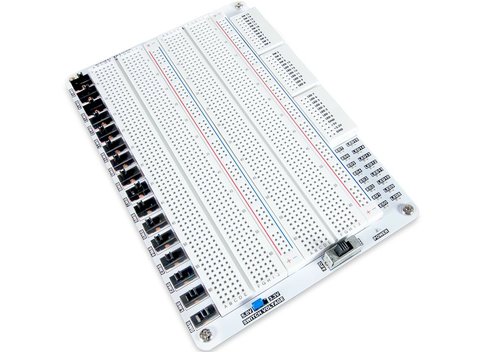

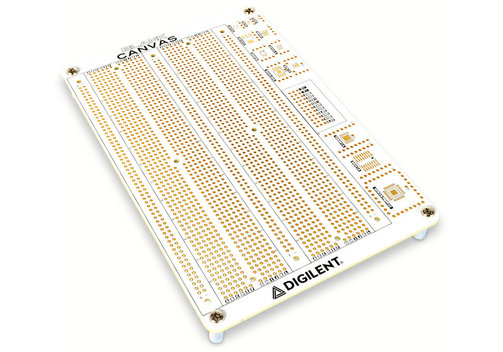

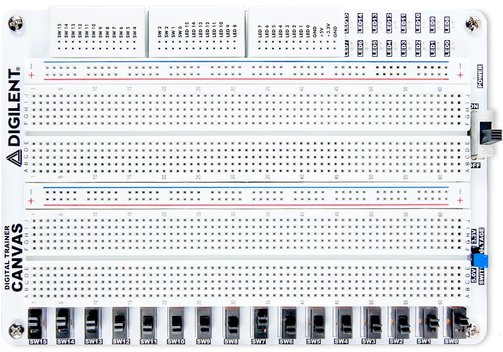

Specifications	Breadboard surface: Two regular-sized breadboards; three power rails. Mini breadboards: Direct access to power supplies/supply pins, fixed ±12 V, +5 V, +3.3 V, and variable ±5 V, with enable switches and indicator LEDs; ground reference pins. Power switches. Power indicator LEDs. Two switches, LEDs, and buttons.	Solderable prototyping surface wired as two regular-sized breadboards and three power rails. Direct access to fixed ±12 V, +5 V, +3.3 V, and variable ±5 V supply pins. SMT breakouts for common IC packages		Two regular-sized breadboards. Integrated LEDs and switches. Voltage selection jumper for array of switches. Two power rails. Direct access to fixed +5 V and +3.3 V supply pins. Canvas power enable switch and LED indicator.

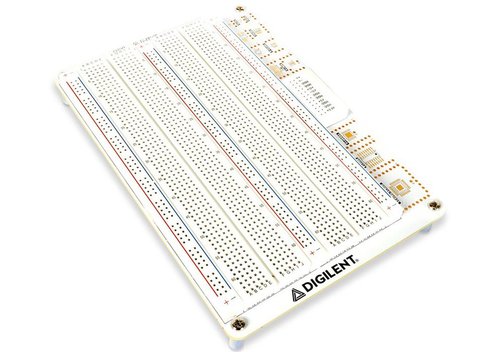

			Two solderless breadboards. The two optional solderless breadboards come unattached and can be affixed via the included sticky back. Once they are attached they cannot be removed. The power supply breadboard is included (not attached) and can be soldered on.
