Digilent Analog Discovery Audio Adapter

Digilent Analog Discovery Audio Adapter

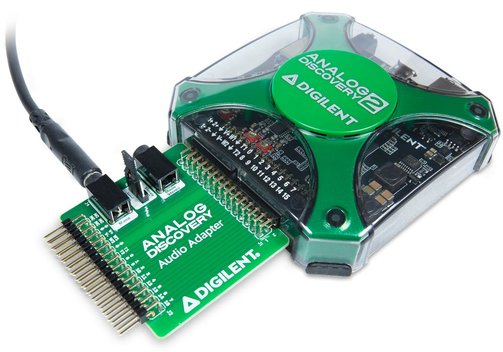

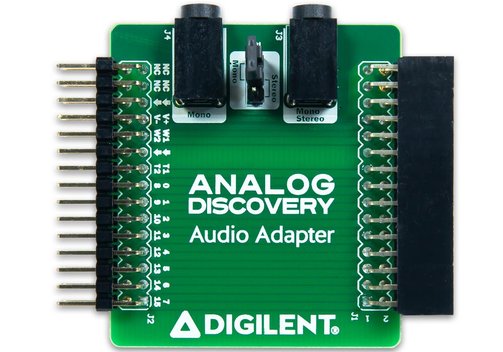

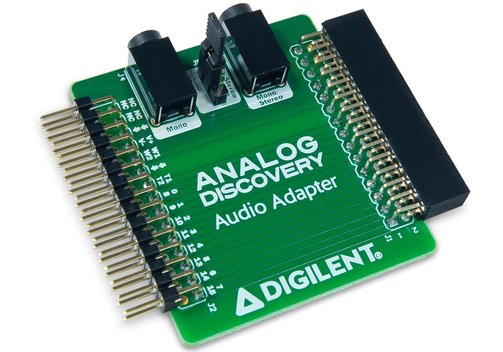

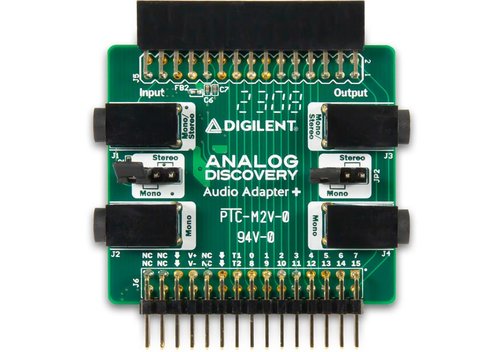

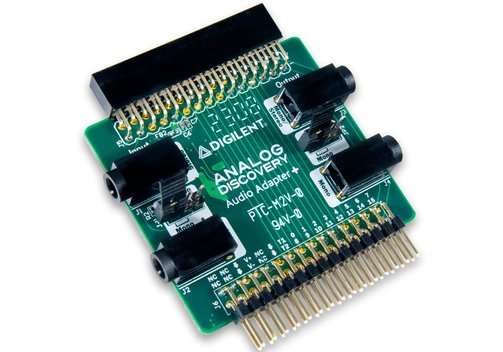

The Digilent Audio Adapter (410-405) and Audio Adapter+ (410-418) for Analog Discovery provide an easy method of connection to analyze audio signals with the Analog Discovery instruments. They are equipped with one or two mono and one or two mono/stereo jack connectors connected to the inputs of the oscilloscope (both versions) and outputs of the waveform generator on 410-418. An additional 2x15 MTE connector is used to pass through all other signals.

• Audio extension for Analog Discovery.
• Compatible with Analog Discovery 2 and Analog Discovery Legacy (410-405) and Analog Discovery 3 (410-418).
• 2x15 Analog Discovery connector.
  2x15 Analog Discovery pass through connector (for digital-I/O signals, power supplies, and triggers).
• 1x or 2x 3.5 mm mono/stereo audio jack connector and 1x or 2x 3.5 mm mono audio jack connector.
  Inputs on 410-405, inputs and outputs on 410-418.
• 1x/2x selection jumper(s) 2 mono vs. 1 stereo.
• Active circuitry powered by the Analog Discovery power supplies.

Model Overview
