Benefits of the ADP3450 and ADP3250 up to 125 MS/s

Powerful multifunctional instrument, 2 or 4 inputs 55 MHz, 1 output 15 MHz, 16 digital-I/O.
Oscilloscope/MSO, voltmeter, wavefom generator, spectrum/network/impedance analyzer.
Compact module, USB 2.0 PC-connectivity and LAN/Ethernet.

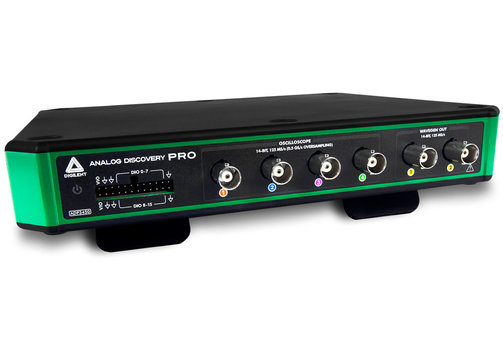

Digilent ADP3450/3250 Analog Discovery Pro Multifunctional Instrument, 55 MHz

The Digilent ADP3450 and ADP3250 Analog Discovery Pro are 4- or 2-channel an all-in-one multifunctional instruments combining a 100/125 MS/s 55 MHz mixed-signal oscilloscope (MSO), voltmeter, waveform generator (function generator up to 15 MHz, and AWG), and programmable digital power supply. The device is connected to a PC via USB 2.0 and is supported by the WaveForms software application, as well as an SDK for custom applications.

Combines oscilloscope, voltmeter, logic analyzer/MSO, protocol analyzer, waveform generator, static I/O , power supplies, spectrum analyzer, network analyzer, and impedance analyzer in one USB device.
Compact and rugged design.
Supported by the WaveForms software application and SDK.
PC-connectivity: USB 2.0 and LAN/Ethernet.
Powered from auxiliary power suppply adaptor.

Supported Instruments

Supported instruments	Main features
Oscilloscope	2 or 4 channels, 14 bit, 55 MHz, 100 MS/s per channel default, up to 125 MS/s, memory depth up to 32,768 Samples per channel; MSO/mixed-signal: 16 digital channels, 100 MS/s or max. 125 MS/s per channel
Waveform generator	Function and arbitrary waveform generator, 2 channels, resolution 14 bit, sample rate 100 MS/s or max. 125 MS/s, bandwidth >15 MHz; standard waveforms: Sine, square, triangle, sawtooth, ramp up/down, DC voltage, noise, trapezium, others; advanced waveforms: Sweep, modulation (AM, FM), math, play mode, custom
Spectrum analyzer	0 to 50 MHz; display modes magnitude, average, peak hold, min hold, count; windowing functions rectangular, triangular, Hamming, Hann, cosine, Blackman-Harris, flat top, Kaiser
Logic analyzer	see oscilloscope, MSO/mixed-signal and/or digital-I/O
Static I/O	see specifications below, digital-I/O
Network analyzer	Frequency range 10 µHz...10 MHz, up to 10,001 Samples; display modes: Magnitude, phase; plots: Time, FFT, Nichols, Nyquist
Impedance analyzer	Uses analog inuts and outputs, see specifications below
Power supplies	see specifications below

Model Overview

Model		ADP3450	ADP3450 BNC Probe Bundle	ADP3250	ADP3250 BNC Probe Bundle
		410-394	471-040	410-394-1	471-041
Analog inputs	Number	4, BNC, single-ended, input impedance 1 MΩ\|\|15 pF		2, BNC, single-ended, input impedance 1 MΩ\|\|15 pF
	Functions	Oscilloscope, voltmeter, network analyzer, spectrum analyzer, impedance analyzer
	Analog bandwidth	≥55 MHz at -3 dB
	A/D conversion	Resolution 14 bit, max. sampling rate 100 MS/s per channel (default), 125 MS/s per channel (max.), 400 MS/s per channel (ETS/oversamping, default), 0.5 GS/s per channel (ETS/oversampling, max.); buffer size 32,768 samples per channel, 128 MS total in record mode
	Max. input range	±25 V
	Accuracy	(DC to 1 kHz, integrative measurements) ±10 mV ±0.5% (scale=200 mV/div, V_inCM=0 V); ±100 mV ±0.5% (scale >200 mV/div, V_inCM=0 V
Analog outputs	Number	2, single-ended, BNC
	Functions	Waveform generator, impedance analyzer, network analyzer
	Analog bandwidth	Max. 15 MHz at 3 dB
	D/A conversion	Resolution 14 bit, sample rate 100 MS/s by default, 125 MS/s maximum
	AC amplitude	±5 V with open circuit or high-Z load, ±3.5 V at maximum current
Digital-I/O	Number	16
	Functions	MSO/logic analyzer, pattern generator, static I/O
	Levels	Input voltage 0...+3.3 V (5-V tolerant); input threshold 0...+2.0 V, dependent on adjustable supply rail; input type LVCMOS (1.2...3.3 V, 5-V tolerant), dependent on adjustable supply rail; input logic level low V_IL min. 0 V/max. 0.8 V, high V_IH min. 2.0 V/max. 5.25 V; output type adjustable 1.2...3.3 V set through adjustable supply rail, LVCMOS (3.3 V, 8 mA); output logic level low V_OL sinking 8 mA min. 0 V/max. 0.4 V, high V_OH sourcing 8 mA min. 2.4 V/max. 3.456 V
	Protocols	SPI, I2C, UART, CAN, I2S, 1-Wire, HDMI CEC, Manchester codes, custom (see WaveForms software)
	Pattern generator	Constant, clock, pulse, random, number, binary counter, Gray counter, Johnson counter, decimal counter, walking 0/1, custom (see WaveForms software)
Triggering	Source	Oscilloscope analog channels, function generator start, digital I/O lines, external triggers (TRIG1/TRIG2), manual
	Modes	Normal, auto, manual/force, single; analog trigger: Edge, pulse, transition, condition, level, hysteresis, hold-off; digital trigger: Edge, level, pattern, glitch

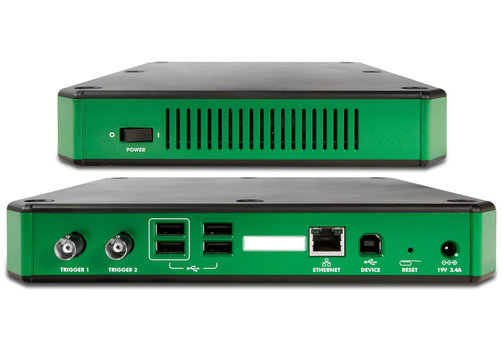

	External trigger	2 channels, input voltage 3.3 V, 5-V tolerant; input type LVCMOS (3.3 V, 5-V tolerant); output type LVCMOS (3.3 V, 8 mA)
Additional features		Protocol analysis (see digital-I/O channesl) Math channels, automatic measurements
Power supplies		Digital supply, 1 channel, 1.2 to 3.3 V, 300 mA
Interface		USB 2.0 HiSpeed to PC, Ethernet/LAN up to 1000Base-TX (RJ45)
Power supply		External power supply adaptor 19 V/3.4 A/max. 45 W
Dimensions (mm)		234 x 194 x 38; 450 g
Software		WaveForms software application, SDK (supports Python, C, LabVIEW and others)

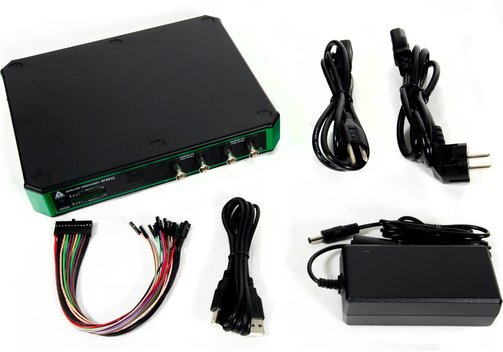

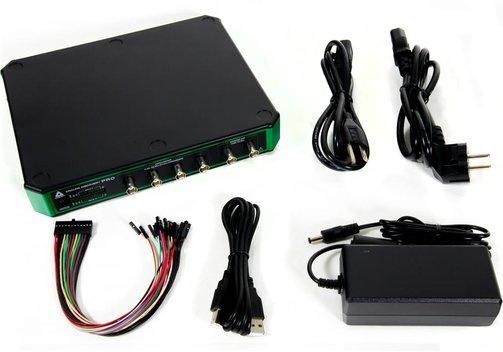

Included: Multifunctional instrument ADP 3450 or 3250, USB A-to-B cable, external power supply, US and EU IEC cable, 2x12 MTE cable; bundles 471-040/014 additional: 4x BNC to mini-grabber cables, 2x/4x P2150 oscilloscope probes.
