Digilent Analog Discovery Studio - The Portable Circuits Laboratory
Description
Accessories
Files/Downloads
Benefits of the Analog Discovery Studio Benchtop Combination Measurement Instrument
- "Pop-up" electronics benchtop laboratory anywhere.
- 13 test and measurement instruments included.
- Oscilloscope, waveform generator, logic/protocol/spectrum analyzer, power supplies, etc.
Digilent Analog Discovery Studio - The Portable Circuits Laboratory for Everyone

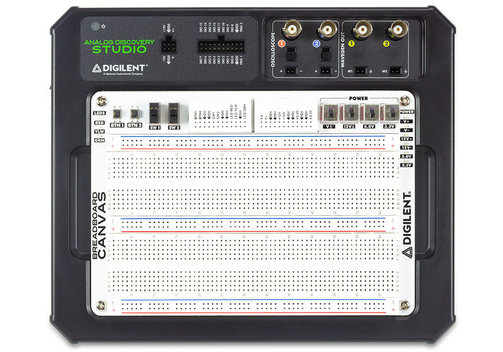

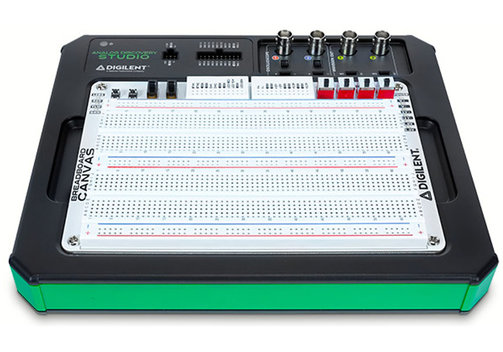

The Digilent Analog Discovery Studio provides an entire stack of benchtop instruments with a convenient breadboardable interface. The Analog Discovery Studio is a fully-functional portable test and measurement device that can turn any cross-functional space into a pop-up electronics laboratory. Equipped with 13 instruments including an oscilloscope, logic analyzer, spectrum analyzer, waveform generator, and more, the Analog Discovery Studio is perfect for enabling circuit design anywhere. Users can access the oscilloscope and waveform generators via breadboardable MTE cables, or industry standard BNC cables, and the logic analyzer, pattern generator, and triggers can be accessed via MTE cables. Circuits or designs can be built on the included, magnetically connected breadboard canvas and conveniently swapped out or removed for transit. The breadboard canvas also includes power supply outputs controlled by physical switches, common I/O built-in, and a large breadboardable surface.
- Combines 13 instruments, including oscilloscope, waveform generator, logic analyzer, protocol analyzer, spectrum analyzer, and power supplies, in a compact benchtop setup.
- Included, magnetically connected breadboard canvas for circuits or designs.
- Access to oscilloscope and waveform generators: Breadboardable MTE cables, or industry standard BNC cables. Channel type: differential (with MTE) or single-ended (with BNC) Access to logic analyzer, pattern generator, and triggers: MTE cables.
- Breadboard canvas includes power supply outputs controlled by physical switches, common I/O built-in, and a large breadboardable surface.
Supported Instruments
| Supported instruments | Main features |
| Oscilloscope | 2 channels, 14 bit, 9 MHz with MTE cables, 30 MHz with BNC, 100 MS/s per, memory depth 16,384 S/ch |
| Spectrum analyzer | 2 channels shared with oscilloscope, 0 to 50 MHz; display modes magnitude, average, peak hold, min. hold, count; windowing functions rectangular, triangular, Hamming, Hann, cosine, Blackman-Harris, flat top, Kaiser |
| Voltmeter | 2 channels shared with oscilloscope, DC ±25 V, AC ±25 V |
| Data logger | 2 channels shared with oscilloscope; supported measurements DC, True RMS, AC RMS, custom |
| Waveform generator | Function and arbitrary waveform generator, 2 channels, resolution 14 bit, sample rate 100 MS/s, bandwidth 8 MHz; standard waveforms: Sine, square, triangle, sawtooth, ramp up/down, DC voltage, noise, trapezium, others; advanced waveforms: Sweep, modulation (AM, FM), math, play mode, custom |
| Network analyzer | Shared with oscilloscope and waveform generator; frequency sweep range 1 mHz...10/25 MHz, frequency steps 1 to 1000 |
| Impedance analyzer | Shared with oscilloscope and waveform generator; frequency sweep range 100 µHz...25 MHz, frequency steps 1 to 10000, plots: Impedance, admittance, inductance, capacitance, etc. |
| Logic analyzer | 16 lines, sample rate 100 MS/s, max. buffer size 16384 S/ch |
| Digital-I/O, static I/O | 16 lines shared with logic analyzer, specs see above |
| Pattern generator | 16 lines shared with logic analyze, specs see above |
| Protocol analyzer | 16 lines shared with logic analyzer, supported protocols UART, SPI, I2C, CAN |
| Power supplies | 2 programmable, 4 fixed, see specifications below |
Model Overview
| Model | Analog Discovery Studio | Analog Discovery Studio BNC Probe Bundle | |
| 410-384 | 471-031 | ||
| Analog inputs | Number | 2, breadboardable MTE cables, or industry standard BNC cables; channel type: Differential (with MTE) or single-ended (with BNC) | |
| Functions | Oscilloscope, voltmeter, datalogger, network analyzer, spectrum analyzer, impedance analyzer | ||
| Analog bandwidth | MTE: 9 MHz at -3 dB, 2.9 MHz at -0.5 dB, 0.8 MHz at -0.1 dB; BNC: 30 MHz at -3 dB, 15 MHz at -0.5 dB, 6 MHz at -0.1 dB | ||
| A/D conversion | Resolution 14 bit, max. sampling rate 100 MS/s per channel; buffer size 16,384 S/ch | ||
| Max. input range | Low range ±5 V, high range ±50 V | ||
| Accuracy | ±10 mV ±0.5% (scale = 0.5 V/div, VinCM = 0 V); ±100 mV ±0.5% (scale >0.5 V/div, VinCM = 0 V) | ||
| Analog outputs | Number | 2, single-ended, MTE or BNC | |
| Functions | Waveform generator, impedance analyzer, network analyzer, tracer | ||
| Analog bandwidth | MTE: 8 MHz at -3 dB, 2.9 MHz at -0.5 dB, 0.8 MHz at -0.1 dB; BNC: 8 MHz at -3 dB, 4 MHz at -0.5 dB, 1 MHz at -0.1 dB | ||
| D/A conversion | Resolution 14 bit, sample rate 100 MS/s; carrier buffer size up to 16,384 S/ch, AM/FM buffer size up to 2,048 S/ch | ||
| AC amplitude | Low range ±5 V, high range ±50 V | ||
| Digital-I/O | Number | 16 | |
| Functions | Logic analyzer, pattern generator, digital-/static I/O, protocol analyzer | ||
| Levels | Input voltage 0...+3.3 V (5-V tolerant), input type LVCMOS (1.8 V or 3.3 V; 5-V tolerant), input logic level selectable CMOS 1.8 V (low VIL, min. 0 V/max. 0.63 V, high VIH min. 1.17 V/max. 5 V) or CMOS 3.3 V (low VIL, min. 0 V/max. 0.8 V, high VIH min. 2.0 V/max. 5 V); output type LVCMOS (3.3 V), low VOL min. 0 V/max. 0.4 V, high VOH min. 2.4 V/max. 3.3 V | ||
| Logic analyzer interpreters | SPI, I2C, UART, CAN, I2S, 1-Wire, PS/2, HDMI CEC, Manchester codes, JTAG, GPIB, SWD, custom (see WaveForms software) | ||
| Protocol Analyzer | Interpreters: UART, SPI, I2C, CAN, CEC, JTAG, SWD, AVR; generators: UART, SPI, I2C, CAN, CEC, SWD, AVR | ||
| Sampling | 100 MS/s, logic analyzer buffer memory up to 16,384 S/ch, pattern generator buffer memory up to 16,384 S/ch) | ||
| Triggering | Source | Oscilloscope analog channels, waveform generator start, digital I/O lines, external triggers (TRIG1/TRIG2), manual | |
| Modes | Normal, auto, manual/force, single; analog trigger: Edge, pulse, transition, condition, level, hysteresis, hold-off; digital trigger: Edge, level, pattern, glitch | ||
| External trigger | Specs same as digital-I/O-channels, support oscilloscope, waveform generator, logic analyzer, pattern generator, spectrum analyzer | ||
| Additional features | Math channels, automatic measurements | ||
| Power supplies | 2 channels programmable, +1...+5 V, -1...-5 V; max. power 2.1 W for each supply; 4 channels fixed +12 V, -12 V, 5 V, 3.3 V; max. power 2.4 W, 2.4 W, 5 W, 3.3 W | ||
| Interface | USB 2.0 HiSpeed to PC | ||
| Power supply | External power supply adaptor inkluded | ||
| Dimensions (mm) | 234 x 194 x 39; 573 g | ||
| Software | WaveForms software application, SDK (supports Python, C, LabVIEW and others) | ||

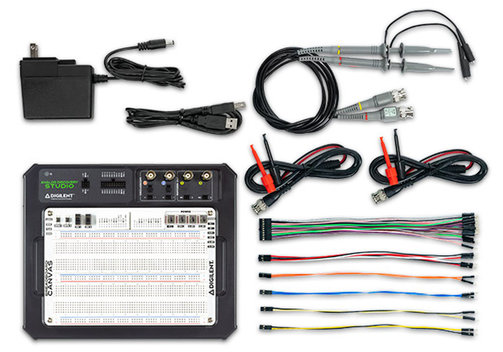

| Included | Breadboard canvas 15 V/2.4 A power supply USB A-to-B cable A set of Analog Discovery Studio MTE cables | Breadboard canvas 15 V/2.4 A power supply USB A-to-B cable A set of Analog Discovery Studio MTE cables 2x BNC to mini-grabber cables one pair of BNC to oscilloscope probes | |
