Digilent AD-BB Breadboard Breakout for Analog Discovery

Digilent AD-BB Breadboard Breakout for Analog Discovery

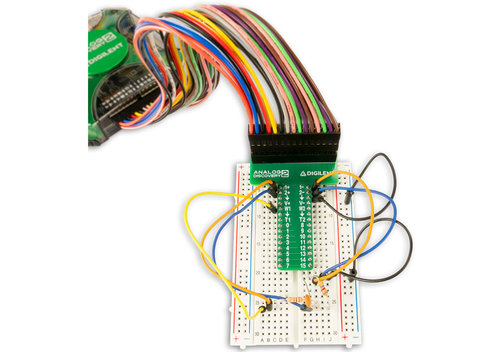

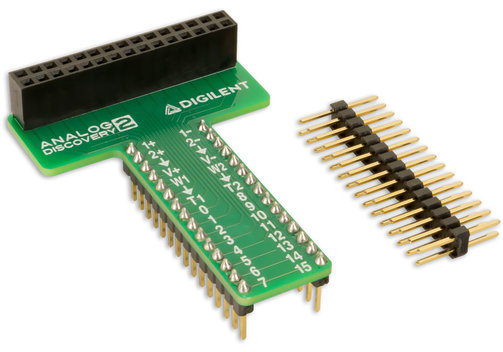

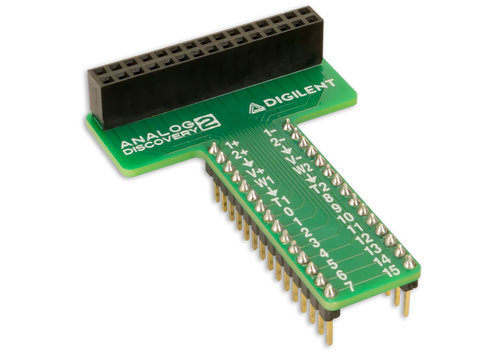

With the Digilent Breadboard Breakout (410-373) you can easily connect your Analog Discovery's signals to a breadboard. The Breadboard Breakout is designed to be used with the Analog Discovery to provide a secure connection with any sized breadboard. It provides a female header to pass through all connections from the Analog Discovery 2 as well as a Cmod style breakout with standard breadboard spaced pins.

• Provides a direct connection with Digilent's Analog Discovery devices.
• Standard spacing for breadboard breakout pins.

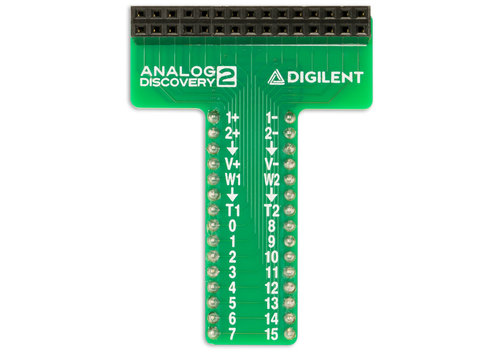

• Labels for breadboard breakout pins corresponding to Analog Discovery header connections.

Information on product safety:

Manufacturer:
Digilent (now a part of Emerson), 1300 NE Henley Ct. Suite 3, Pullman, WA 99163/USA
www.digilent.com

Responsible person:
Meilhaus Electronic GmbH, Am Sonnenlicht 2, 82239 Alling/DEU
