Accessories: Adaptors and Calibration for the Copper Mountain VNA Series
Model Overview
| Adaptors | ||
| Model | Description | |
| PNMDF3.5F adaptor | NMD 3.5 mm female to 3.5 mm female, frequency range up to 26.5 GHz, impedance 50 Ω | |
| NF50 adaptor | N female to N female, frequency range up to 6 GHz, impedance 50 Ω | |
| NM-SF adaptor | N male to SMA female, frequency range DC...18 GHz, impedance 50 Ω | |
| NM-SM adaptor | N male to SMA male, frequency range DC...18 GHz, impedance 50 Ω | |
| NF-SM adaptor | N female to SMA male, frequency range DC...18 GHz, impedance 50 Ω | |
| NF-SF adaptor | N female to SMA female, frequency range DC...18 GHz, impedance 50 Ω | |
| 2.4F-2.9F adaptor | 2.4F to 2.9F, frequency range DC...40 GHz, impedance 50 Ω | |
| 24F-24F adaptor | 24F to 24F, frequency range DC...50 GHz, impedance 50 Ω | |
| Automatic calibration modules | ||
| Model | Description | Datasheet |

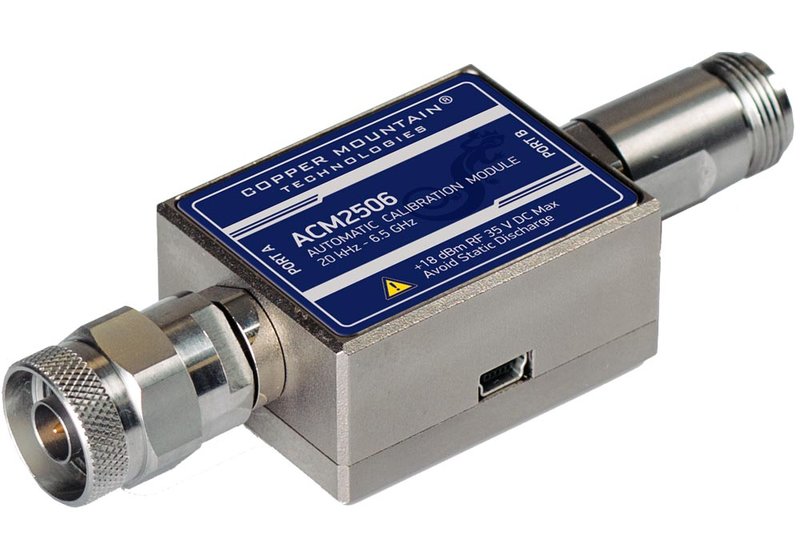

| ACM2506 | Automatic calibration module, frequency range 20 kHz...6.5 GHz, impedance 50 Ω |  |

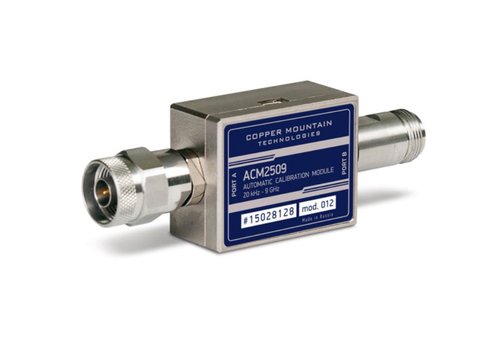

| ACM2509 | Automatic calibration module, frequency range 20 kHz...9 GHz, impedance 50 Ω | |

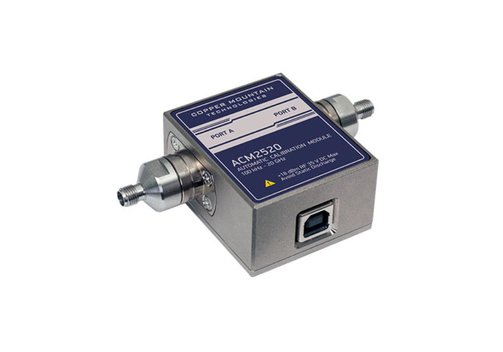

| ACM2520 | Automatic calibration module, frequency range 100 kHz...20 GHz, impedance 50 Ω | |

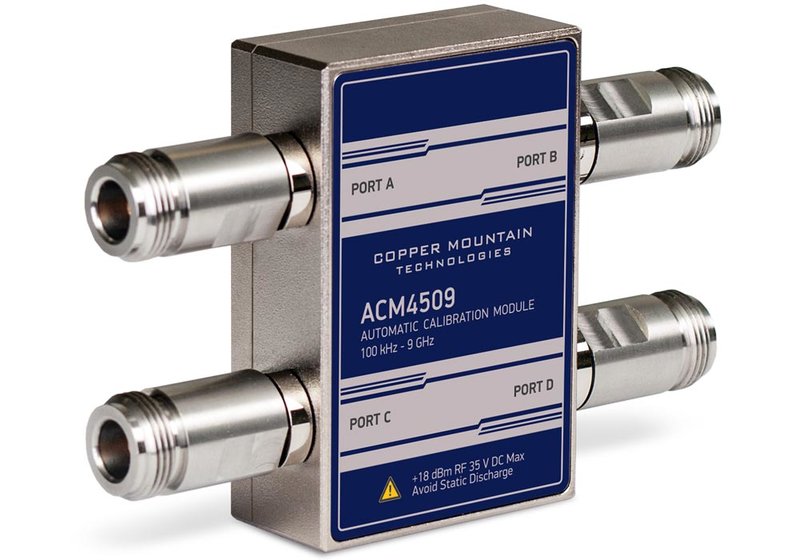

| ACM4509 | Automatic calibration module, frequency range 100 kHz...9 GHz, impedance 50 Ω | |

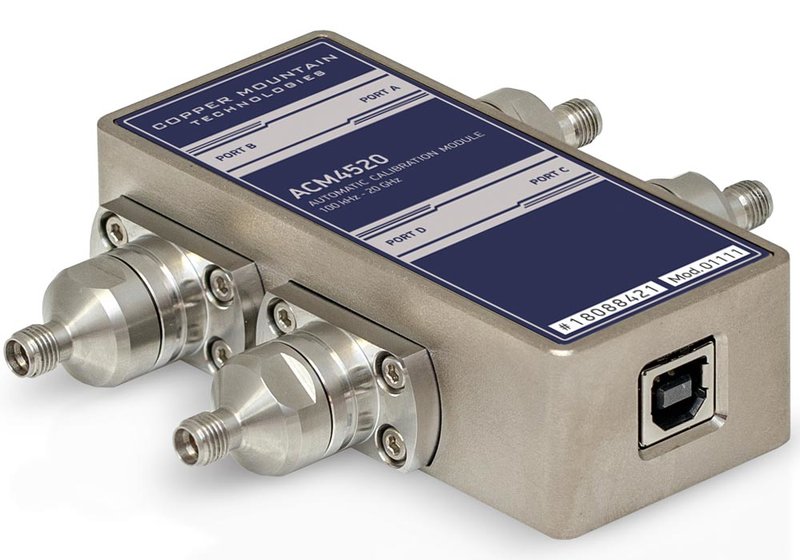

| ACM4520 | Automatic calibration module, frequency range 100 kHz...20 GHz, impedance 50 Ω | |
| Mechanical calibration kits | ||
| Model | Description | |
| N1.2 calibration kit (EOL, obsolete) | Frequency range up to 1.5 GHz, impedance 50 Ω, connector: N-type | |

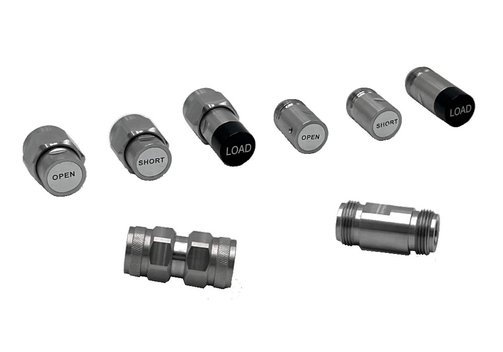

| N3.5 calibration kit | Frequency range up to 3.5 GHz, impedance 50 Ω, connector: N-type | |

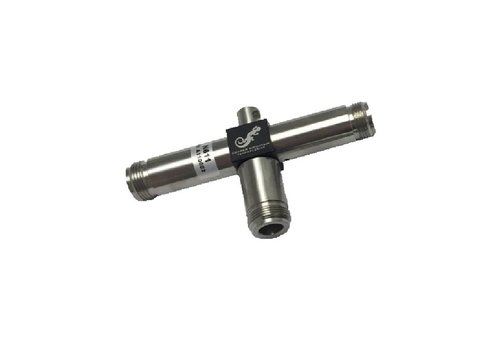

| N611 calibration kit | Frequency range up to 6 GHz, impedance 50 Ω, connector: N-type | |

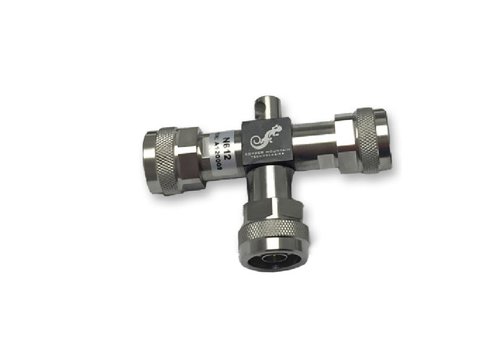

| N612 calibration kit | Frequency range up to 6 GHz, impedance 50 Ω, connector: N-type | |

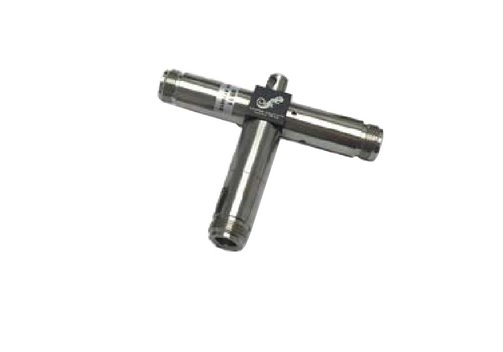

| N911 calibration kit | Frequency range up to 9 GHz, impedance 50 Ω, connector: N-type | |

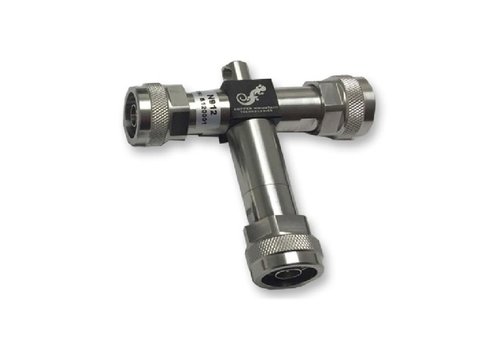

| N912 calibration kit | Frequency range up to 9 GHz, impedance 50 Ω, connector: N-type | |
| Z5411 calibration kit | Frequency range up to 50 GHz, impedance: 50 Ω, connector: 2.4 mm female | |

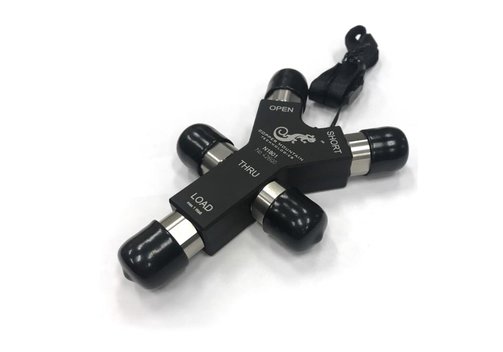

| N1801 calibration kit | Frequency range up to 18 GHz, impedance 50 Ω, connector: N-type female | |

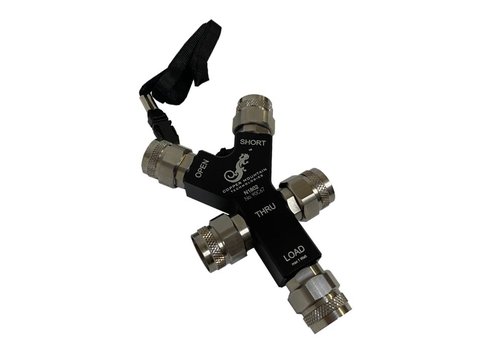

| N1802 calibration kit | Frequency range up to 18 GHz, impedance 50 Ω, connector: N-type male | |

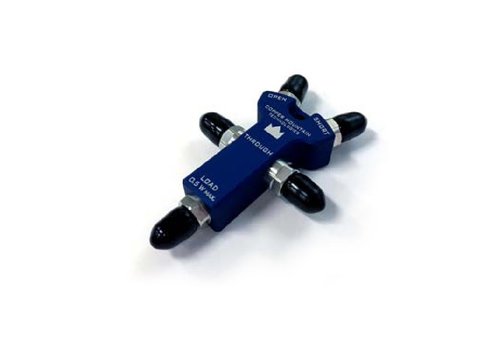

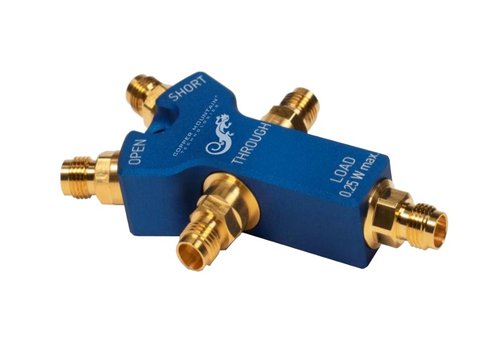

| S911T calibration kit | Frequency range up to 9 GHz, impedance 50 Ω, connector: 3.5 mm female | |
| T4311 calibration kit (EOL, obsolete) | Frequency range up to 40 GHz, impedance 50 Ω, connector: 2.92 mm female | |
| CM24F calibration kit | Frequency range up to 50 GHz, impedance 50 Ω, connector: 2.4 mm female | |

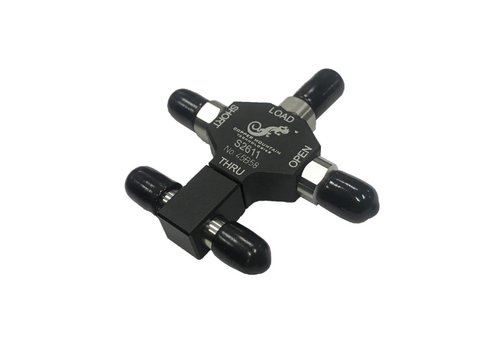

| S2611 calibration kit | Frequency range up to 26.5 GHz, impedance 50 Ω, connector: 3.5 mm female | |

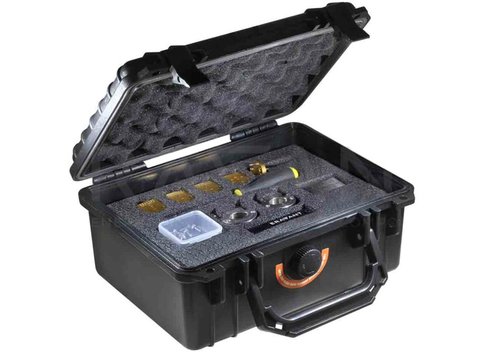

| WR-05 calibration kit | Waveguide calibration kit, 140...220 GHz, impedance 50 Ω, consists of one fixed short, one fixed matching load, waveguide shims, two waveguide quick connects, ten 3/32 hex head waveguide screws, six 3/32 hex head extended waveguide screws, four alignment dowel pins, a 3/32” hex waveguide screwdriver, and one calibration data USB drive. The calibration kit is collected in a ruggedized box | |
| WR-06 calibration kit | Waveguide calibration kit, 110...170 GHz, impedance 50 Ω, consists of one fixed short, one fixed matching load, waveguide shims, two waveguide quick connects, ten 3/32 hex head waveguide screws, six 3/32 hex head extended waveguide screws, four alignment dowel pins, a 3/32” hex waveguide screwdriver, and one calibration data USB drive. The calibration kit is collected in a ruggedized box | |
| WR-08 calibration kit | Waveguide calibration kit, 90...160 GHz, impedance 50 Ω, consists of one fixed short, one fixed matching load, waveguide shims, two waveguide quick connects, ten 3/32 hex head waveguide screws, six 3/32 hex head extended waveguide screws, four alignment dowel pins, a 3/32” hex waveguide screw driver and one calibration data USB drive. The calibration kit is collected in a ruggedized box | |
| WR-10 calibration kit | Precision calibration kit, contains a flush short, offset piece and broadband load which allows for a full 12-term port calibration. For use with with the CobaltFx FEV-10 frequency extension system , impedance 50 Ω | |
| WR-12 calibration kit | Precision calibration kit contains a flush short, offset piece and broadband load which allows for a full 12-term port calibration. For use with with the CobaltFx FEV-12 frequency extension system , impedance 50 Ω | |
| WR-15 calibration kit | Precision calibration kit contains a flush short, offset piece and broadband load which allows for a full 12-term port calibration. For use with with the CobaltFx FEV-15 frequency extension system , impedance 50 Ω | |
| Other accessories | ||
| Model | Description | |

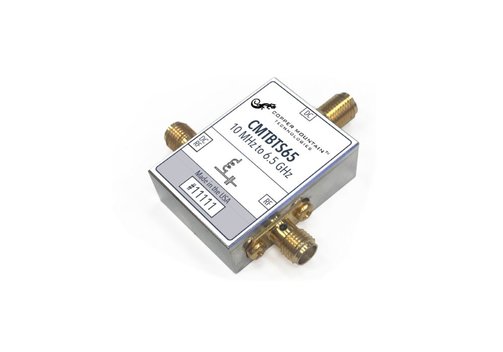

| CMTBTS65 | Bias T with very low insertion loss for entire bandwidth (<1 dB). Minimal return loss and VSWR characteristics across frequency range. Matched to 50 Ω and measured in a 50 Ω test set-up. Extremely flat gain response (no "suck-out") over frequency range. SMA female connectors, frequency range 10 MHz...6.5 GHz, impedance 50 Ω | |

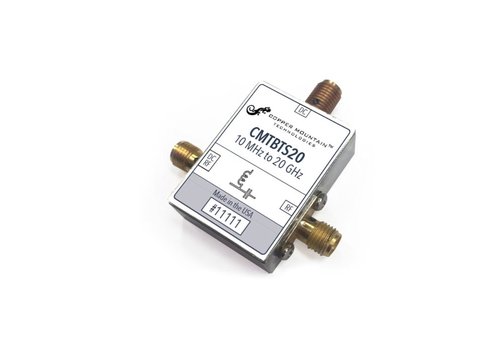

| CMTBTS20 | Bias T with very low insertion loss for entire bandwidth (≪1 dB). Minimal return loss and VSWR characteristics across frequency range. Matched to 50 Ω and measured in a 50 Ω test set-up. Extremely flat gain response (no "suck-out") over frequency range. SMA female connectors, frequency range 10 MHz...20 GHz, impedance 50 Ω | |

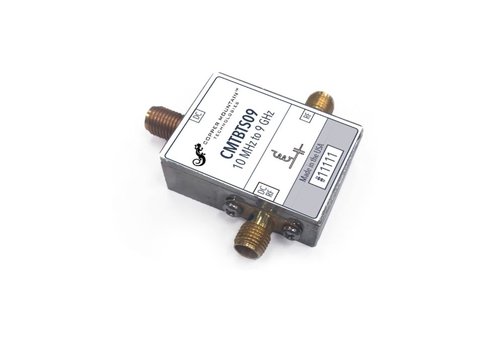

| CMTBTS09 | Bias T with very low insertion loss for entire bandwidth (≪1 dB). Minimal return loss and VSWR characteristics across frequency range. Matched to 50 Ω and measured in a 50 Ω test set-up. Extremely flat gain response (no "suck-out") over frequency range. SMA female connectors, frequency range 10 MHz...9 GHz, impedance 50 Ω | |

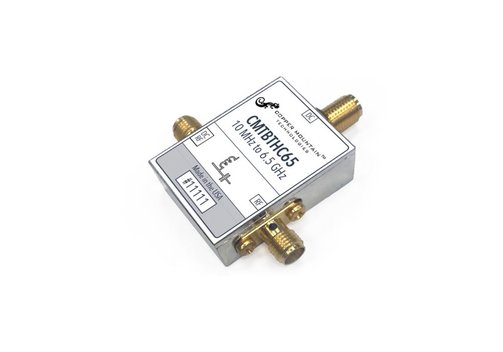

| CMTBTHC65 | Bias T with very low insertion loss for entire bandwidth (≪1 dB). Minimal return loss and VSWR characteristics across frequency range. Matched to 50 Ω and measured in a 50 Ω test set-up. Extremely flat gain response (no "suck-out") over frequency range. SMA female connectors, frequency range 10 MHz...6.5 GHz, high current, impedance 50 Ω | |

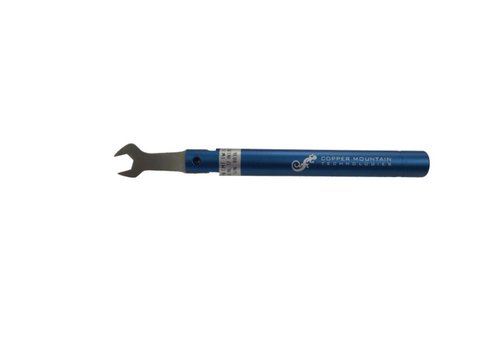

| CMT TW-S | SMA type torque wrench, for SMA 3.5 mm, 2.92 mm, 2.4 mm and 1.85 mm type connectors. 8.0 mm; 1.70 Nm | |

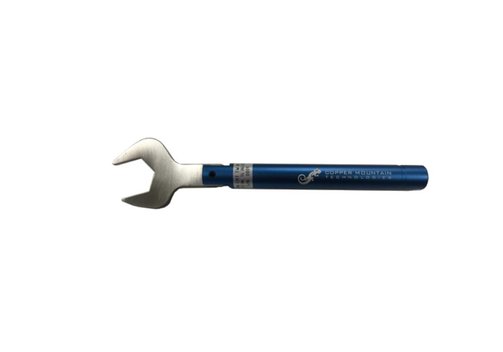

| CMT TW-N | N-type torque wrench, for a wide range of coaxial connectors. HEX size 20.0 mm; 1.60 Nm | |
| C1209 | VNA rack mount kit for Cobalt C1209. Includes track slides and handles for the full size USB VNA | |
| C1220 | VNA rack mount kit for Cobalt C1220. Includes track slides and handles for the full size USB VNA | |
| Test cables | ||
| Model | Description | |
| FEV | Set of 5 cables at a standard length of 1.2 m for one extender: 4 RF cables and 1 DC cable. Impedance 50 Ω | |
| C50NMNM-x | N male to N male; frequency of 18,000 MHz; length 0.6 m, 0.9 m, or 1.5 m; impedance 50 Ω | |
| C50SMNM-x | SMA male to N male; frequency of 18,000 MHz; length 0.6 m, 0.9 m, or 1.5 m; impedance 50 Ω | |
| C5024NMDF24M-x | 2.4 NMD female to 2.4 mm male; frequency of 50 GHz; length 0.6 m, 0.9 m, or 1.5 m; impedance 50 Ω | |
| C50292MM | 2.92 mm to 2.92 mm; frequency of 40,000 MHz; length 0.6 m; impedance 50 Ω | |
