Cleverscope CS328A, USB/LAN, 12/14 bit, 100 MS/s, MSO
Benefits of the Cleverscope CS328A for Mobile Applications with a Laptop or Stationary Applications on the Lab Bench
- PC oscilloscope for USB 2.0 or Ethernet. Resolution 12 or 14 bit.
- Ideal for mixed signal applications: 8 digital channels standard.
- Models with sine or signal generator.
Cleverscope CS328A, USB/LAN, 12/14 bit, 100 MS/s, MSO

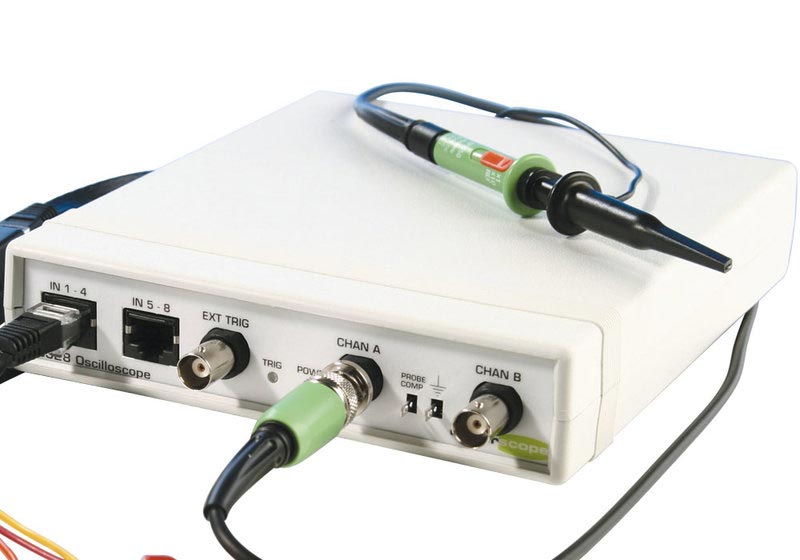

Looking for a compact, modular scope to replace your bulky "classic" oscilloscope? The Cleverscope has 2 channels - you can also cascade 2 scopes and get a 4-channel device. Or add a signal generator or digital channels for mixed-signal applications. The Cleverscope connects to the PC via USB or Ethernet/LAN.
- Two channels, available with a 12 or 14 bit sampler.
- Simultaneous sampling with 100 MS/s. AC or DC coupling.
- Automatic gain between 20 mV to 800 V (FS).
- Automatic offset between 0 to ±4 or 40 V in steps of 10/100 mV.
- Deep 4 or 8 MSamples memory per channel.
- Very flexible mixed-signal triggering.
- View small AC signals superimposed on large DC or AC offset.
- Self-calibrating.
- Probes included.
- Mixed siganl: 8 digital inputs (100 MS/s), selectable threshold between 0...8 V in steps of 10 mV for mixed-signal applications.
- Models with signal (0...10 MHz, sine, square, triangle) or sine generator module.
- Upgradeable firmware.

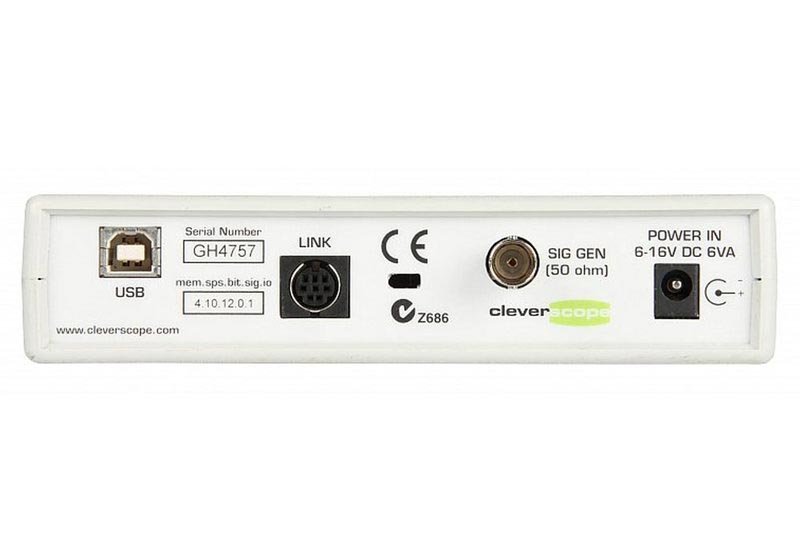

- Connects to the PC via USB 2.0 or 10/100 Mbit ethernet/LAN (isolated from PC).
Model Overview
| Model | Analog channels | Resolution | Sample rate | Memory | Digital channels | Signal generator | Interface | Probes incl. |
| CS328A-XS | 2 | 14 bit | 100 MS/s | 8 MS | 8 | CS700A | USB 2.0 (CS740) | 2x CS1001 and CS1004/5 |
| CS328A-XSi | 2 | 14 bit | 100 MS/s | 8 MS | 8 | CS701 | USB 2.0 (CS740) | 2x CS1001 and CS1004/5 |
| CS328A-XSE | 2 | 14 bit | 100 MS/s | 8 MS | 8 | CS700A | isol. ethernet (CS741) | 2x CS1001 and CS1004/5 |
| CS328A-XSEi | 2 | 14 bit | 100 mS/s | 8 MS/s | 8 | CS701 | isol. ethernet (CS741) | 2x CS1001 and CS1004/5 |
| CS328A-FRA | 2 | 12 bit | 100 MS/s | 8 MS | 8 | CS701 | USB 2.0 (CS740) | 2x CS1001 and CS1004/5 |
| CS328A | 2 | 12 bit | 100 MS/s | 8 MS | 8 | - | USB 2.0 (CS740) | 2x CS1001 and CS1004/5 |
| CS328AE | 2 | 12 bit | 100 MS/s | 8 MS | 8 | - | isol. ethernet (CS741) | 2x CS1001 and CS1004/5 |
Included: Modular oscilloscope with features and probes see table above, power adaptor, USB models: USB cable, user manual. CS300 application software on CD.
Software: For Windows - software CS300 - oscilloscope and spectrum-analyzer displays. Web-server for remote viewing of ethernet/LAN connected units. DLL. LabVIEW driver.
Upgrades - at Time of Order Only!
| Model | Description |
| CS800 | Upgrade to 8 MSample memory |
| CS810 | Ext. sample clock interface 1...105 MHz sinus/square 0.5...3 V |
| CS714U | Upgrade to 100 MHz, 14 bit 2-channel sampler |
| CS741U | Upgrade to ethernet interface, 10/100 Mbit/s, isolated from PC |
Modules
| Model | Description |
| CS700A | Signal generator (0...10 MHz, sine, square, triangle) |
| CS701 | Sine wave generator isolated 300 VRMS (0...65 MHz sine) |
| CS714 | 100 MHz, 14 bit 2-channel Sampler |
| CS740 | USB 2.0 interface module |
| CS741 | Upgrade to ethernet interface, includes new back panel. Please supply existing serial number! |
