ClampMan Light Vice Holding Fixture for PCBs and Component Modules
Benefits of the ClampMan Vice Holding Fixture
- The "small" ClampMan: Solid holding vice fixture for PCBs.
- Ideal for measurement/test, soldering, repair, thermal imaging.
- Rugged design with hydraulic joint stand - multiple degrees of freedom.
"Rock-Solid!" - It's so Easy to Hold your Probes and Board Under Test in the Right Position

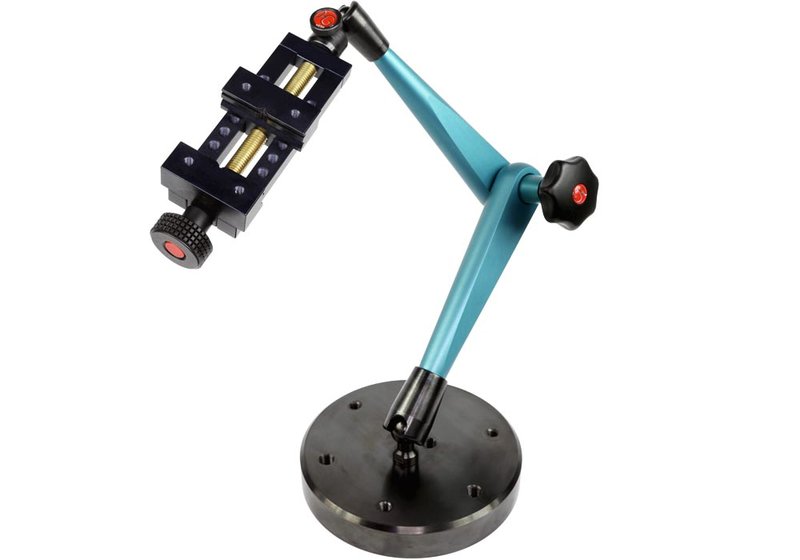

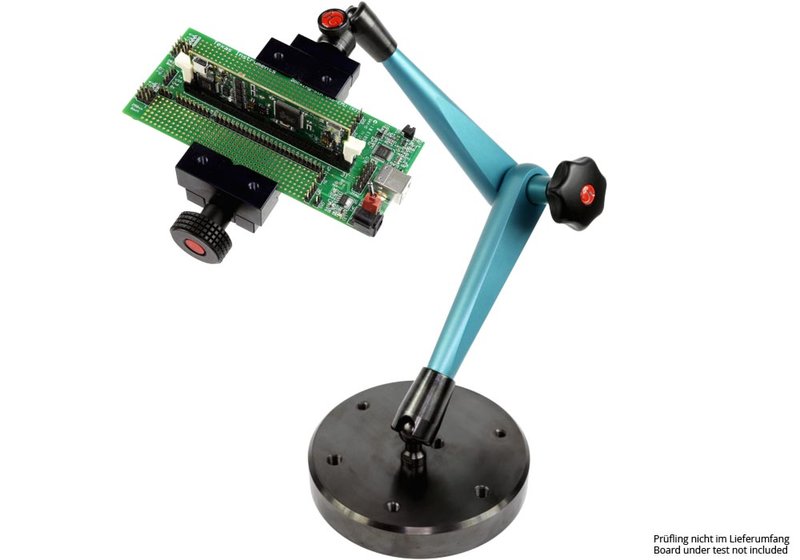

Didn't you often wish to have at least two additional hands to hold PCBs or electronic modules for the process of measurement, test, soldering or documentary pictures with a thermal camera? ClampMan is the perfect solution for this. In the "Light" version it has a solid, heavy round foot with a stand arm with multiple degrees of freedom, and a vice fixture - now also availbale as a version with isolating vice chucks. And it's so easy to use: Open star grip knob at the hydraulic arm, bring arm into desired position, fix star grip knob - done!

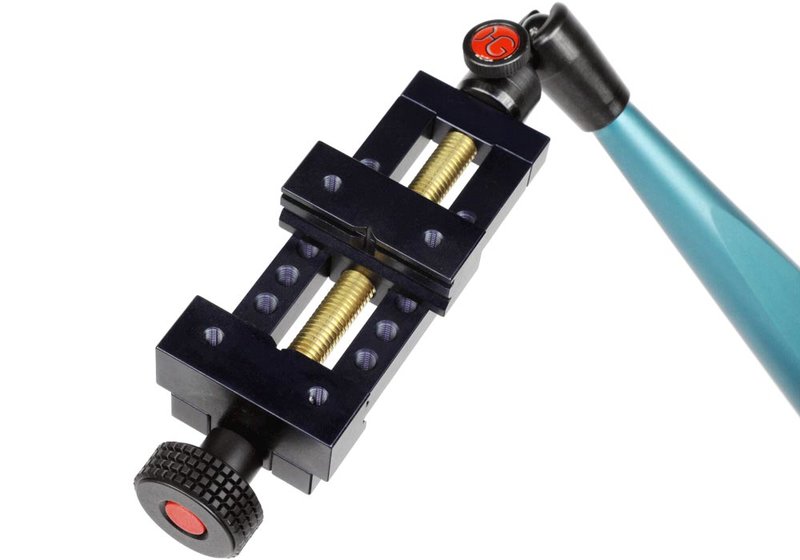

- Flexible vice fixture, use to hold various shapes and formats of PCBs in a high variety of different ways.
- Just like "additional hands": Enables the fixing of PCBs in many different positions with multiple degrees of freedom.
- High quality, rugged design with hydraulic joint stand and precise vice fixture.

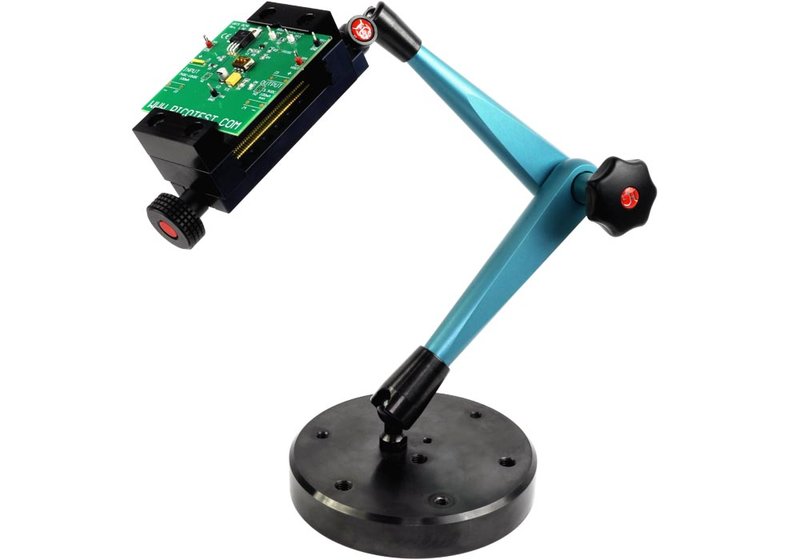

- Version "ISO" with two isolating vice chucks.
- Expand with additional fixtures according to your application. For example, add the ClampMan Probe to hold one probe.
No Matter for Which Measurement Tasks...
...ClampMan Will Hold Your PCBs/DUTs, Probes etc.!
- Ideal accessory for USB/LAN DAQ labs: RedLab Series or LabJack Series.
- Ideal accessory for all kinds of measurement instruments - oscilloscopes, spectrum analyzers, waveform generators, multimeter from various suppliers.
- Ideal accessory for high quality ME series PC plug-in boards.
- Ideal accessory for handheld instruments - for repair, service and development.
Model Overview
| Model | ClampMan Light Short | ClampMan Light | ClampMan Light ISO |
| Ordering code | CLM-1030 | CLM-1060 | CLM-1080 |

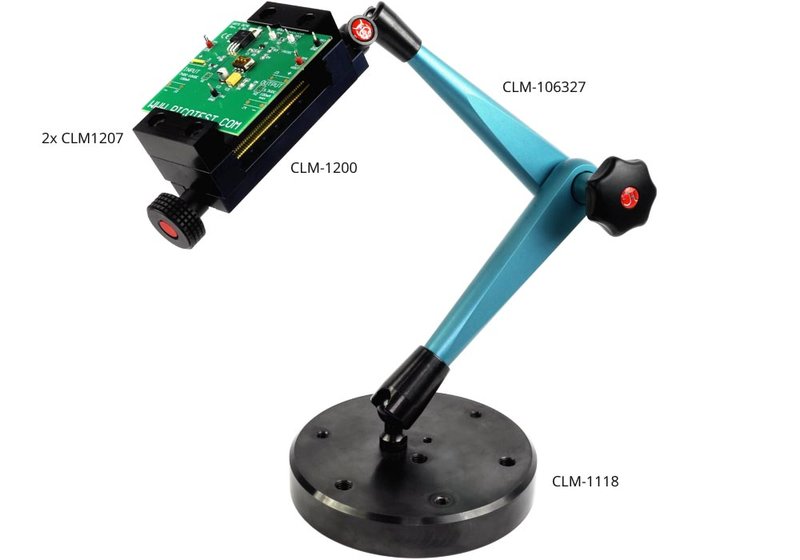

| Includes | CLM-1118, 104352, CLM-1200 | CLM-1118, 106327, CLM-1200 | CLM-1118, 106327, CLM-1200, CLM-1207 |
| Description | Round foot with 1 stand arm size 300, vice | Round foot with 1 stand arm size 400, vice | see ClampMan Light/CLM-1060, additional 2x isolating vice chucks/jaw tops CLM-1207 |
Information on product safety:
Manufacturer:
Hörger & Gässler OHG Gelenkstative und Präzisionstechnik, Weinstraße 35, 89567 Sontheim an der Brenz/DEU
www.hoerger-gaessler.de
