Calibration Kits for the Ceyear Measurement Instruments
Model Overview
| Model | Description | Also called option (or for series)... |
| 20201 | Calibration kit, type N, DC...9 GHz | 3656-H21 |
| 20202 | Calibration kit, type 3.5 mm, DC...9 GHz | 3656-H22 |
| 20204 | Calibration kit, type N 75 Ω, DC...3 GHz | 3656-H06 |
| 20205 | Calibration kit, type N, DC...3 GHz | 3656-H05 |
| 20402 | Calibration kit, type N, female-male, 300 kHz...18 GHz, 2-port | 3656-H11 |
| 20403 | Calibration kit, type 3.5 mm, female-male, 10 MHz...26.5 GHz, 2-port | 3656-H12, 3672A, A-S, B, B-S |
| 20404 | Calibration kit, 10 MHz...50 GHz, 2-port | 3672C, C-S, D |
| 20405 | Calibration kit, type 3.5 mm, female, 10 MHz...20 GHz;, 4-port | 3656-H13, -H11, 3672A, B |
| 20409 | Calibration kit | 3672E |

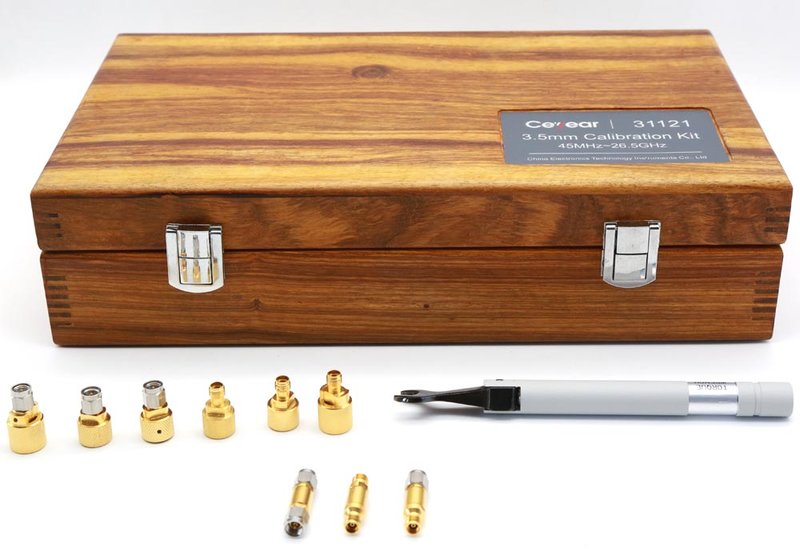

| 31121 | Calibration kit, type 3.5 mm | 3656-H30, 3672A, A-S, B, B-S, 4958-H04 |
| 31123 | Calibration kit, type 2.4 mm | 3672C, C-S |
| 31123A | Calibration kit, type 2.4 mm | 3672D |
| 31128 | Calibration kit, type 1.85 mm | 3672E |
| 32111 | Calibration kit, wave guide, 1.72...2.61 GHz | 3656-H23 |
| 32112 | Calibration kit, wave guide, 2.60...3.95 GHz | 3656-H24 |
| 32113 | Calibration kit, wave guide, 3.94...6.00 GHz | 3656-H25 |
| 32114 | Calibration kit, wave guide, 4.64...7.05 GHz | 3656-H26 |
| 32115 | Calibration kit, wave guide, 5.88...8.17 GHz | 3656-H27 |
| 32116 | Calibration kit, wave guide, 7.00...10.0 GHz | 3656-H28 |
| 20201A | Calibration kit, type N male, DC...9 GHz | 3680A-014 |
| 20201B | Calibration kit, type N female, DC...9 GHz | 3680A-015 |
| 20201AE | Econ. Calibration kit, male, DC...9 GHz | 3680A-028 |
| 20201BE | Econ. Calibration kit, female, DC...9 GHz | 3680A-029 |
| 31101A | Calibration kit, type N male, DC...18 GHz | 3680A-012, 4958-H02 |

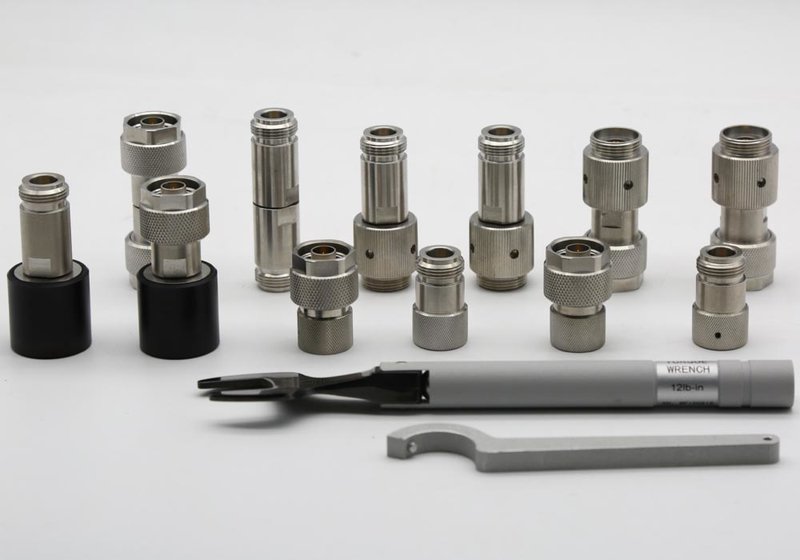

| 31101B | Calibration kit, type N female, DC...18 GHz | 3680A-013, 4958-H03 |
