EOL/obsolete. ▸Click here to find the current CableEye models.

Benefits

Intuitive and easy testing of cables and complex cable harnesses.
Also find and locate intermittent connections with loop test.
Detailed test documentation with all relevant test data and results.

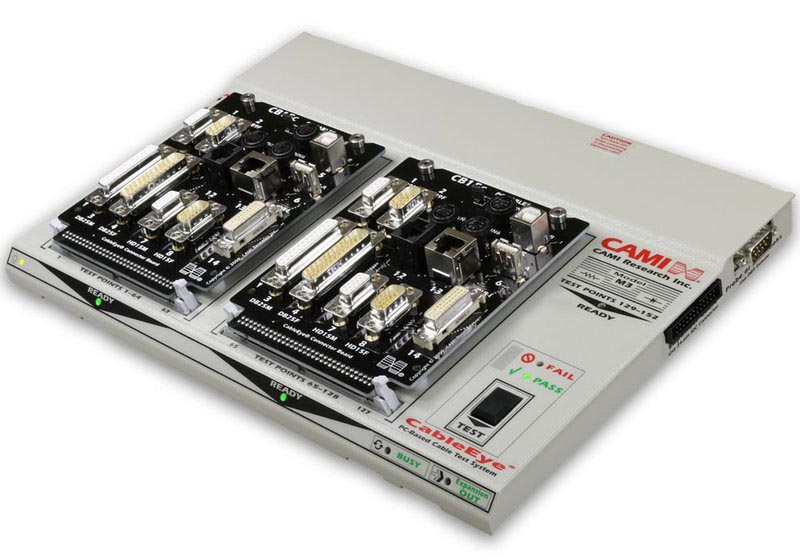

CAMI CableEye M3U(H) Cable Tester Enhanced System 1: 152 Testpoints, Expandable to 2560, USB

With the CableEye test system you can easily test any cable or cable farnesses with your PC, for example for continuity, open wires, short circuits or miswiring. The CableEye cable tester is particularly suitable for cable production, research and development, maintenance, network technology and prototyping as well as for everyday testing in industry, event technology etc. With different connectior boards and a flexible software for Windows the system "learns" your cables and then tests them. Choose from a wide variety of plug-on connector boards to mate with most standard cables, and easily mount custom connectors for unusual applications.

CableEye M3U(H) (CAMI-821UH) - the enhanced system 1 for 152 test points, expandable to 1024/2560. Obsolete - replaced by CableEye M3Z (CAMI-826).
Store full cable documentation.
Print out cable wiring diagrams.
Print labels.
Log and print error protocols.
Visualize cable wiring: Automatically draw schematics from measured cable connections. Compare cables.
Easy testing of cable leads.

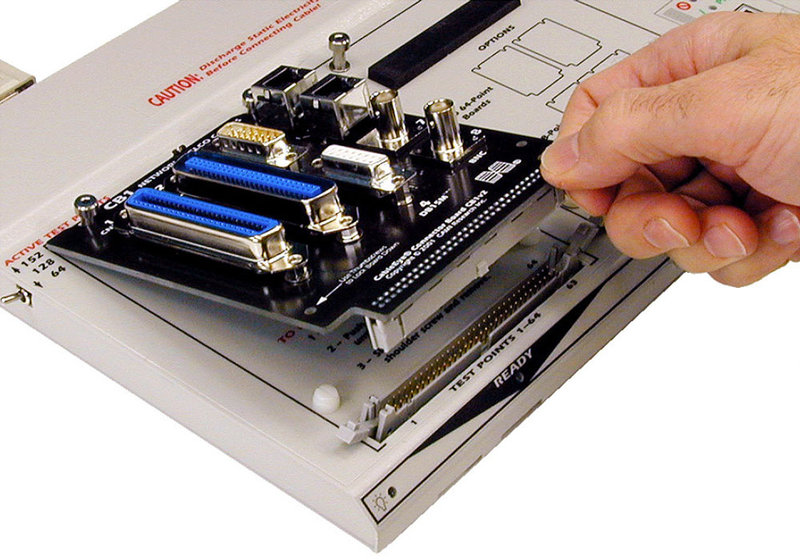

Plug-in connector boards, easy to install, for various connector types like BNC, RJ45, D-sub, ribbon cable/IDC and many more.
Connects to the PC via USB.
Easy-to-use Windows software. Can be set up for one-button operation to speed production testing. Unskilled operators need only to press the TEST pushbutton on the fixture to trigger an involved test sequence set up by the quality control engineer, with results automatically logged to disk for later analysis and report generation.
Continuity test:
Detects open lines, short circuits and miswired cables.
Pass/fail test with a 'known good' sample.
Locate intermittent connections and identify their position in the cable.
Resistance measurement:
Testing of resistors integrated in the cable, e.g. termination, pullup/pulldown (depending on model).
Test of diode orientation.

CableEye Systems - Technical Specifications

Model		Low voltage - M3U - CAMI-821U
Control module test points		128 + 24 accessory test points
Max. test points		2560
Test time (128 test points) - continuity only		0.20 s
Test time (128 test points) - with resistance test		0.25 s
Resistance thresholds		0.3 Ω...10 MΩ
Resistance accuracy - 10Ω...100Ω		±0.3Ω
Resistance accuracy - 100Ω...1MΩ		1%
Resistance accuracy - full range		Lesser accuracy over full range
Resistance Range		0.3 Ω...10 MΩ
4-Wire Kelvin		-
Intermittent connection scan rate		90 Scans/s - 64 test points
Diode measurement		Orientation, forward voltage and reverse breakdown <10 V
Test voltage		10 V
Test voltage accuracy		-
Max. test current		1.0 mA
Capacitance range		-
Capacitance accuracy		-
Capacitance measurement rate		-
Twisted pair measurement		-
Measurement cable length		-
Measurement distance to break		-
Dwell time range		1 µs...100 ms
Insulation resistance measurement		10 MΩ at 10 V
Digital-I/Os		Pairs of test points used as inputs, 50+ relay outputs with optional relay boards (item 765)
Calibration		Recommended yearly
Test point connectors		64-pin dual-row headers, 2.54 mm/0.1" centers; two per 128-point module
Remote control socket		Yes, MiniDIN8 Connector for use with e.g. footswitch, external control panel
Probe socket		Yes; probe included with tester; accessory port also usable with minihook cables
Power requirement		18 VDC/500 mA (max.)/9 W, from wall module or desktop supply
Weight		1.2 kg
Computer requirements		Any Windows-capable machine running Windows 7 or later; compatible with touchscreen and laptop PCs
USB interface		USB 1.1, fast

CableEye System - Measurement Functions

Model		M2U-Basic*	M2U-Full*	M3U*	M3Z	M4	HVX	HVX-21
Continuity	Opens, shorts, miswires	✓	✓	✓	✓	✓	✓	✓
	Intermittent faults	✓	✓	✓	✓	✓	✓	✓
	Complex networks, backplanes	✗	✗	✗	✓	✓	✓	✓
Resistance	Connection, non-Connection quality	✗	✗	✓	✓	✓	✓	✓
	Resistance (2-wire)	✗	✗	✓	✓	✓	✓	✓
	Continuous resistance scan	✗	✗	✓	✓	✓	✓	✓
	Fixture resistance nulling	✗	✗	✓	✓	✓	✓	✓
	Resistance (4-wire Kelvin)	✗	✗	✗	✗	✓	(✓) option	(✓) option
	High current resistance	✗	✗	✗	✗	✓	(✓) option	(✓) option
Capacitance	Wire length, cable length	✗	✗	✗	✗	✓	(✓) option	(✓) option
	Length to break	✗	✗	✗	✗	✓	(✓) option	(✓) option
	Twist pairing	✗	✗	✗	✗	✓	(✓) option	(✓) option
Single channel safety test	Chassis, panels, transformers, etc.	✗	✗	✗	✗	✗	✓	✓
Insulation quality	Dielectric strength, withstand voltage	✗	✗	✗	✗	✗	✓	✓
	Insulation resistance	✗	✗	✗	✓	✓	✓	✓
	Presence of contaminants	✗	✗	✗	✗	✗	✓	✓
In-Line Components	Resistors	✗	✗	✓	✓	✓	✓	✓
	Diodes - orientation	✓	✓	✓	✓	✓	✓	✓
	Diodes - forward voltage	✗	✗	✓	✓	✓	✓	✓
	LEDs - orientation	✓	✓	✓	✓	✓	✓	✓
	LEDs - color detection	✗	✗	✓	✓	✓	✓	✓
	Zener diodes - orientation	✓	✓	✓	✓	✓	✓	✓
	Zener diodes - forward voltage	✗	✗	✓	✓	✓	✓	✓
	Zener diodes - reverse breakdown voltage <10 V	✗	✗	✓	✓	✓	✓	✓
	Zener diodes - reverse breakdown voltage >10 V	✗	✗	✗	✗	✗	✓	✓
	Capacitors	✗	✗	✗	✗	✓	(✓) option	(✓) option

* Obsolete/EOL.

CableEye is a modular system. A variety of optionens and connector boards are available. The webshop only shows a small selection. Contact us for individual configurations or special connector board designs. Find a CB board compatibility chart and other overviews ▸here.
