Brainboxes US Series USB-to-Serial Converters
Benefits of the US-Series USB-to-RS232/RS422/RS485 Converters/Adaptors for Industrial Applications
- Interface converters from USB to serial RS232, RS422, RS485 in various compact housing designs.
- Ultra compact IP50 models with extended temperature range and galvanic isolation.

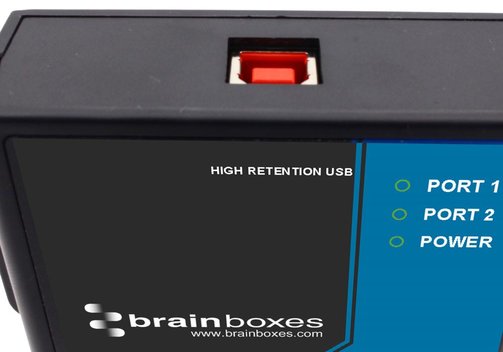

- The modelle also with high retention USB connector.
Brainboxes US Series USB-to-Serial Converters
The Brainboxes series US are USB to serial adaptors with 1, 2, 4 or 8 serial ports. They feature a serial rate of up to 1 MBaud and - depending on the model - RS232 or RS422/RS485 ports. The US series products are available in four housing formats:

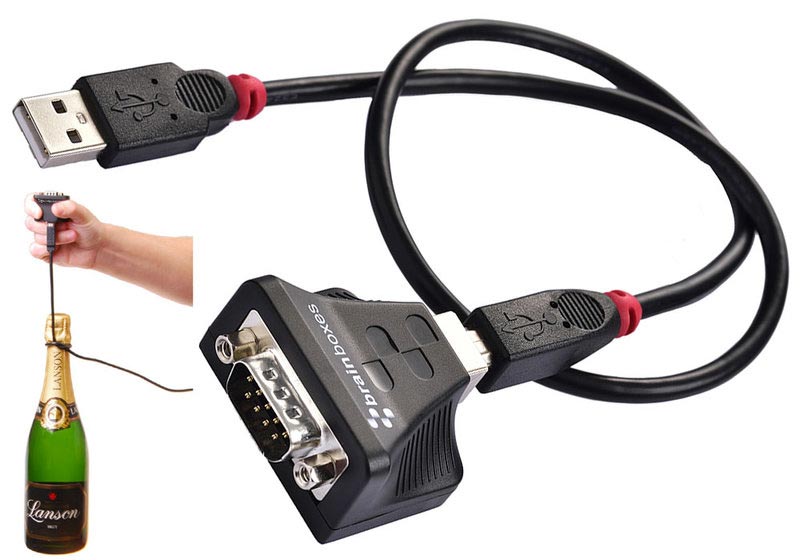

- Compact "dongle" housing, directly plugs into RS232 or RS422/RS485 or USB port. 25 cm USB cable is included.
- Ultra compact IP50 "dongle" housing, directly plugs into RS232 or RS422/485 port. 50 cm USB cable is included. The device has a high retention USB connector for an unshakeable connection as well as a extended temperature range. Model with galvanic isolation available.
- Wall-mountable models (optional DIN-rail mounting kit).

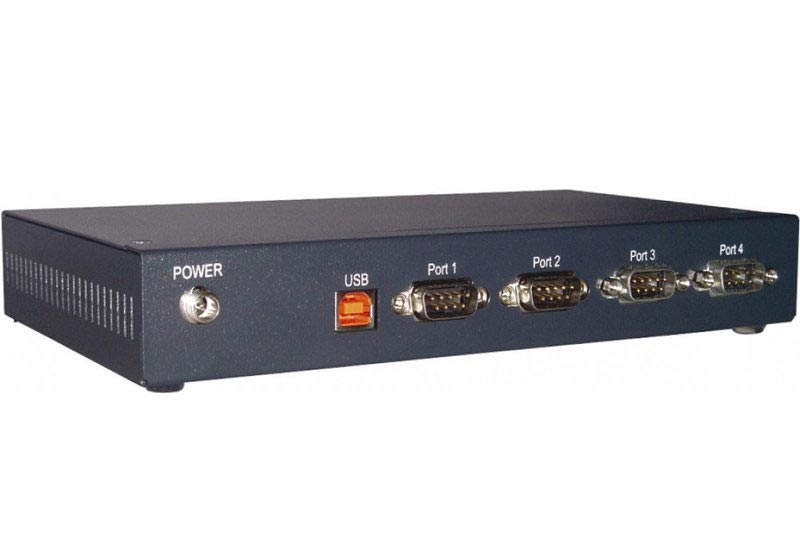

- Multi-port box models (4- and 8-port; optional DIN-rail mounting kit).
Model Overview
Models US-101, US-324 in Compact "Dongle" Housing
| Model | Galvanic isolation | USB | Serial | Power | Operating temperature | Housing/design | ||
| Ports | Type | Connector(s) | ||||||

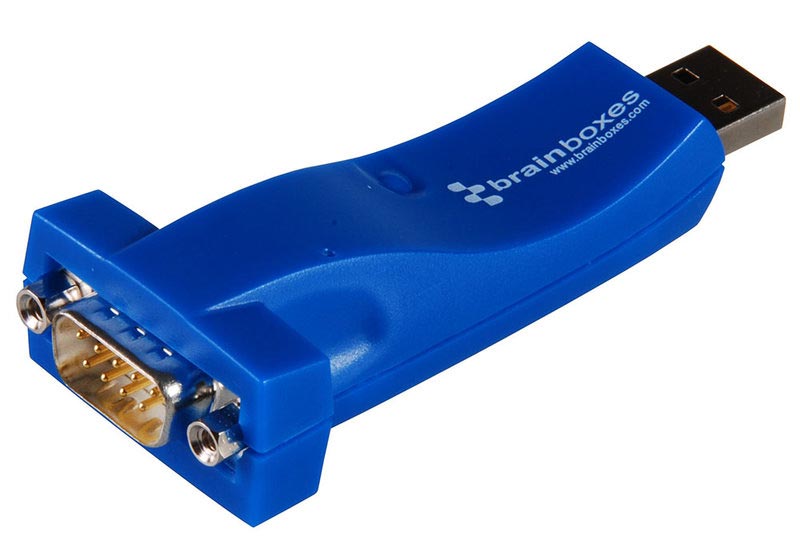

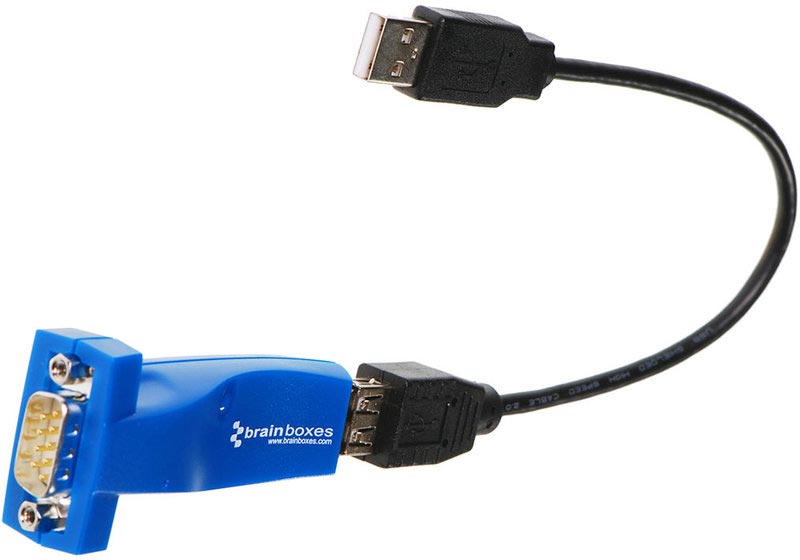

| US-101 | - | 2.0 | 1 | RS232, 1 MBd | 9-pin D-sub male | USB-powered | n. s. | Compact "dongle" housing, directly plugs into serial or USB port; 25 cm USB cable included |
| US-324 | - | 2.0 | 1 | RS422/485, 1 MBd | 9-pin D-sub male | USB-powered | n. s. | Compact "dongle" housing, directly plugs into serial or USB port; 25 cm USB cable included |
Models US-159, US-235, US-320, US-720, US-735, US-759 in IP50 "Dongle" Housing
| Model | Galvanic isolation | USB | Serial | Power | Operating temperature | Housing/design | ||
| Ports | Type | Connector(s) | ||||||

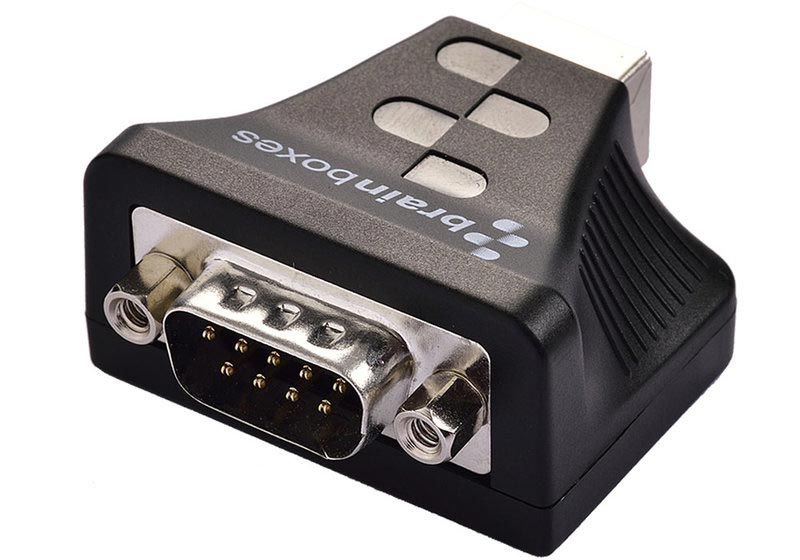

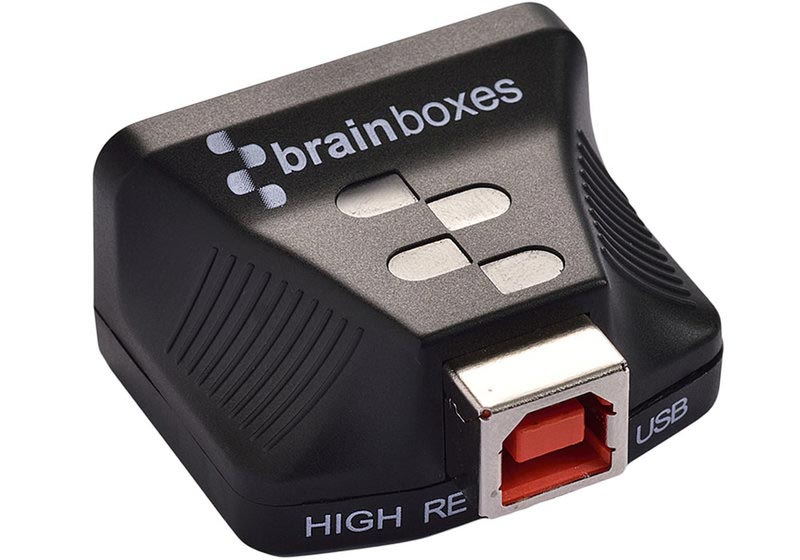

| US-159 | Yes, 2 kV | n. s. | 1 | RS232, 1 MBd | 9-pin D-sub male | USB-powered | -40...80°C | Ultra compact IP50 "dongle" housing, directly plugs into serial port; 50 cm USB cable included, high retention USB connector |
| US-235 | - | n. s. | 1 | RS232, 1 MBd | 9-pin D-sub male | USB-powered | -40...80°C | Ultra compact IP50 "dongle" housing, directly plugs into serial port; 50 cm USB cable included, high retention USB connector |
| US-320 | - | n. s. | 1 | RS422/485, 1 MBd | 9-pin D-sub male | USB-powered | -40...80°C | Ultra compact IP50 "dongle" housing, directly plugs into serial port; 50 cm USB cable included, high retention USB connector |
| US-720 | - | 2.0 (C) | 1 | RS422/485, 1 MBd | 9-pin D-sub male | USB-powered | -40...+80°C | Ultra compact IP50 "dongle" housing, directly plugs into serial port; 50 cm USB cable included, high retention USB connector |
| US-735 | - | 2.0 (C) | 1 | RS232, 1 MBd | 9-pin D-sub male | USB-powered | -40...+80°C | Ultra compact IP50 "dongle" housing, directly plugs into serial port; 50 cm USB C cable included, high retention USB connector |

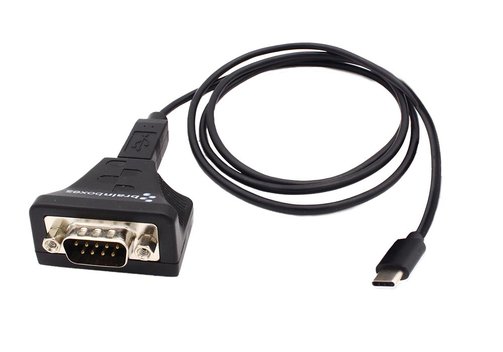

| US-759 | Yes | 2.0 (C) | 1 | RS232, 1 MBd | 9-pin D-sub male | USB-powered | -40...+80°C | Ultra compact IP50 "dongle" housing, directly plugs into serial port; 50 cm USB C cable included, high retention USB connector |
Models US-257, US-313, US-757 für Wall-mountable
| Model | Galvanic isolation | USB | Serial | Power | Operating temperature | Housing/design | ||
| Ports | Type | Connector(s) | ||||||

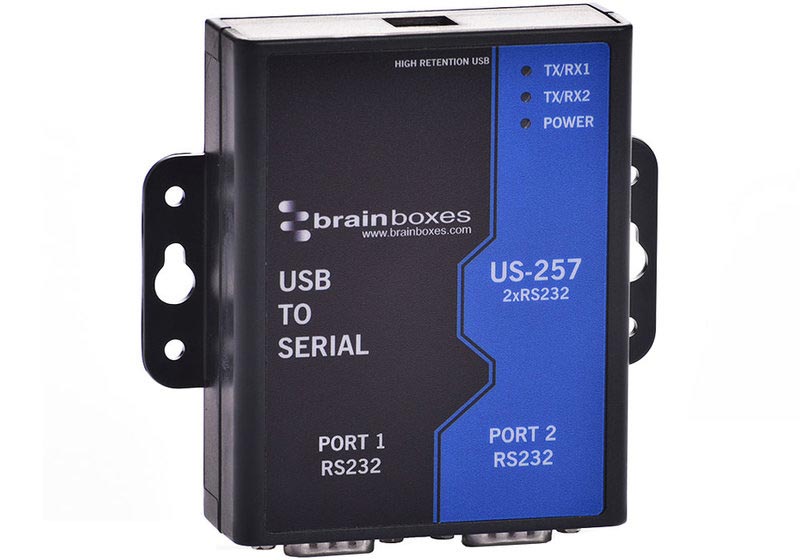

| US-257 | - | 2.0 | 2 | RS232, 1 MBd | 9-pin D-sub male | USB-powered | n. s. | Wall-mountable IP30 housing (optional DIN-rail mounting kit); 1 m USB cable included |

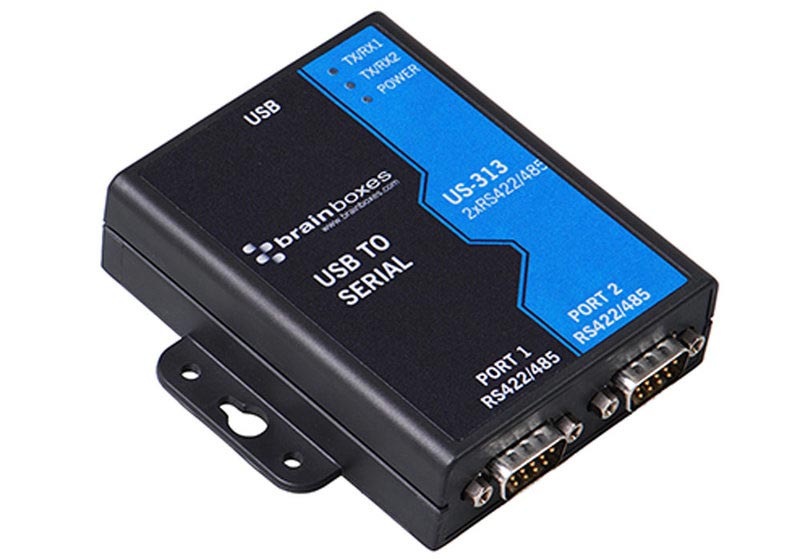

| US-313 | - | 2.0 | 2 | RS422/485, 1 MBd | 9-pin D-sub male | USB-powered | n. s. | Wall-mountable IP30 housing (optional DIN-rail mounting kit); 1 m USB cable included |

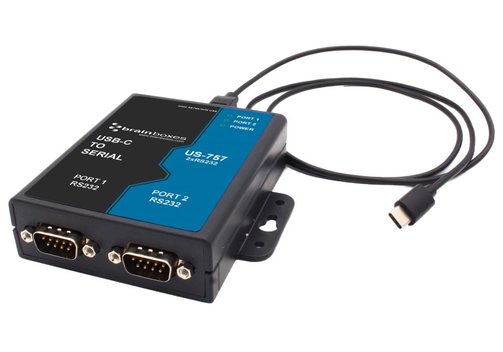

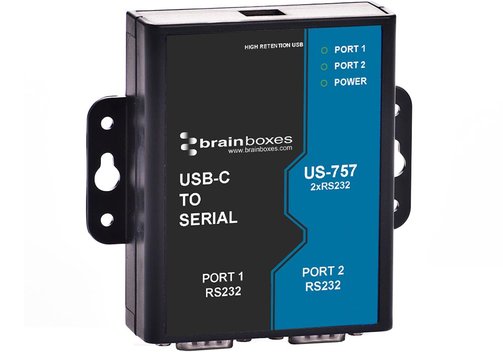

| US-757 | - | 2.0 (C) | 2 | RS232, 1 MBd | 9-pin D-sub male | USB-powered | -0...+60°C | Wall-mountable IP30 housing (optional DIN-rail mounting kit); 1 m USB cable included |
Models US-279, US-346, US-601, US-701, US-842 Multi-port Boxes
| Model | Galvanic isolation | USB | Serial | Power | Operating temperature | Housing/design | ||
| Ports | Type | Connector(s) | ||||||

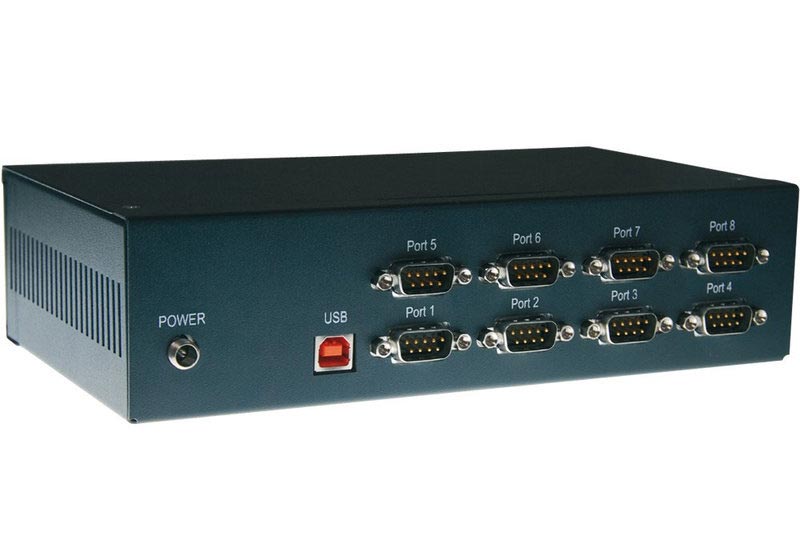

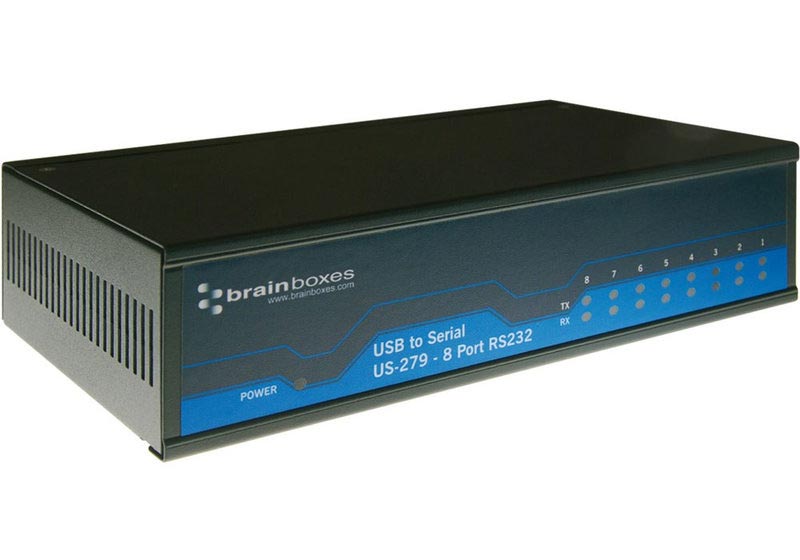

| US-279 | - | 2.0 | 8 | RS232, 1 MBd | 9-pin D-sub male | optional power supply adaptor | n. s. | IP30 multi-port box housing (optional DIN-rail mounting kit); 1 m USB cable included |

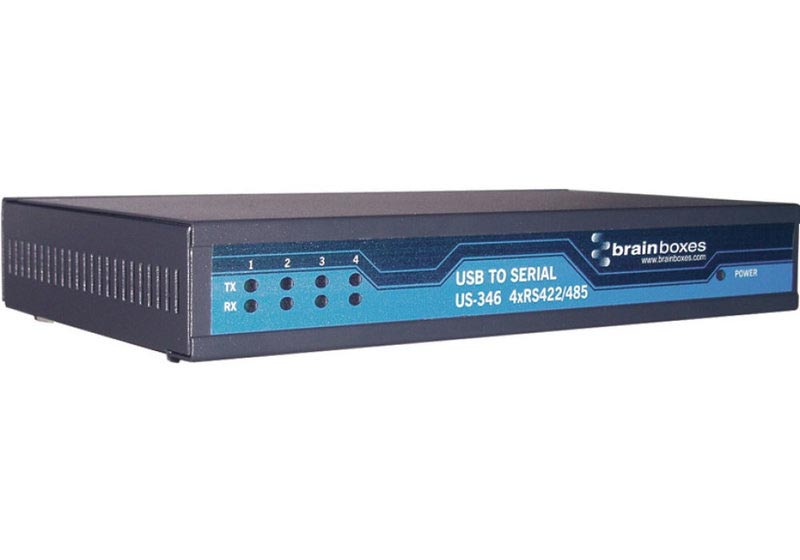

| US-346 | - | 2.0 | 4 | RS422/485, 1 MBd | 9-pin D-sub male | optional power supply adaptor | n. s. | IP30 multi-port box housing (optional DIN-rail mounting kit); 1 m USB cable included |

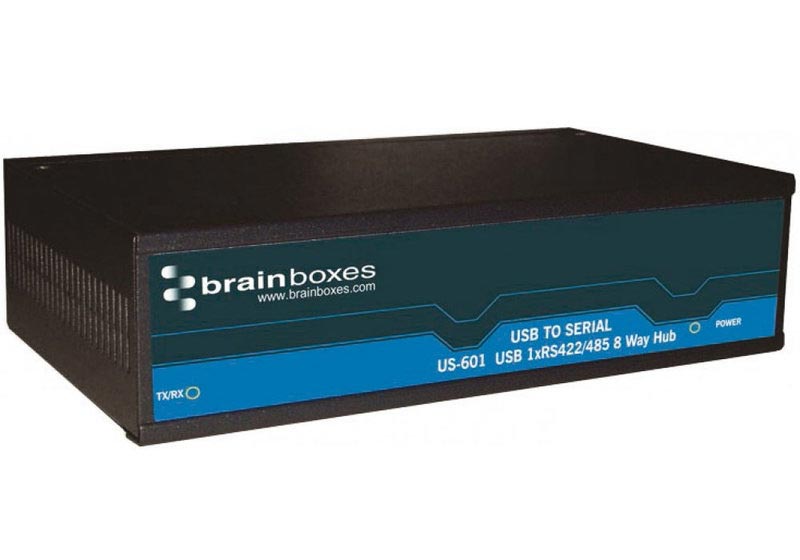

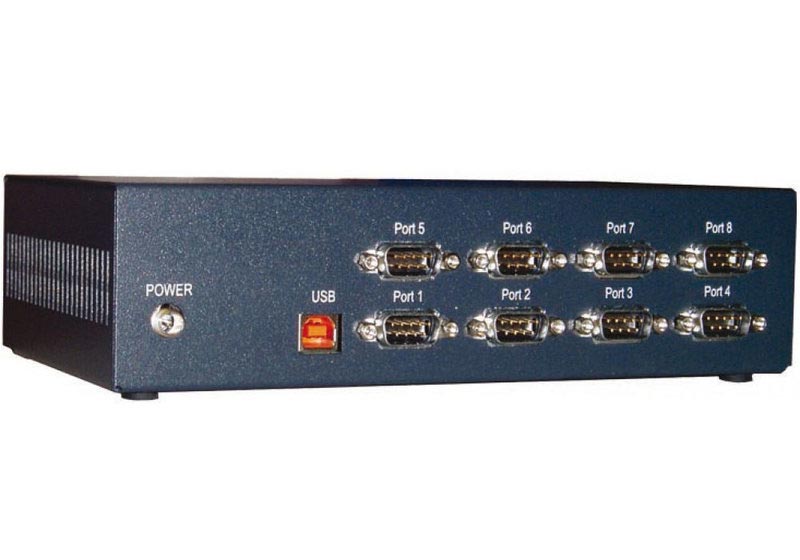

| US-601 | - | 2.0 | 8* | RS422/485, 1 MBd | 9-pin D-sub male | optional power supply adaptor | n. s. | IP30 multi-port box housing (optional DIN-rail mounting kit); 1 m USB cable included |

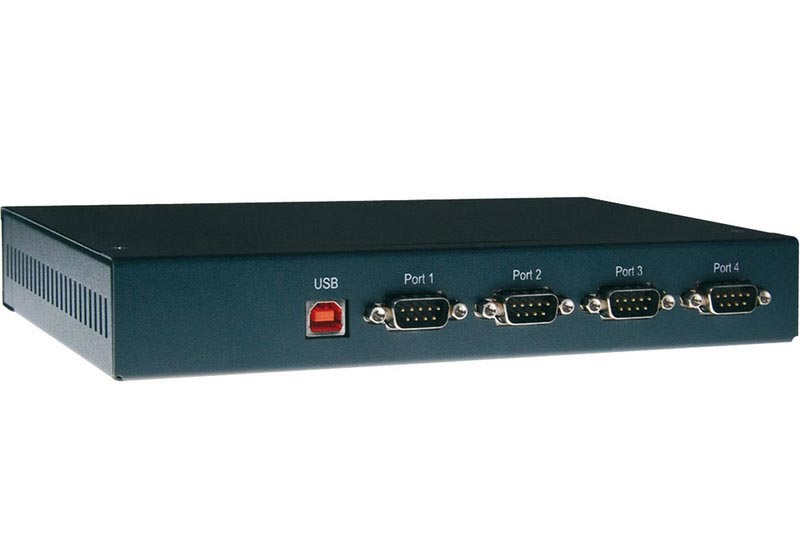

| US-701 | - | 2.0 | 4 | RS232, 1 MBd | 9-pin D-sub male | optional power supply adaptor | n. s. | IP30 multi-port box housing (optional DIN-rail mounting kit); 1 m USB cable included |

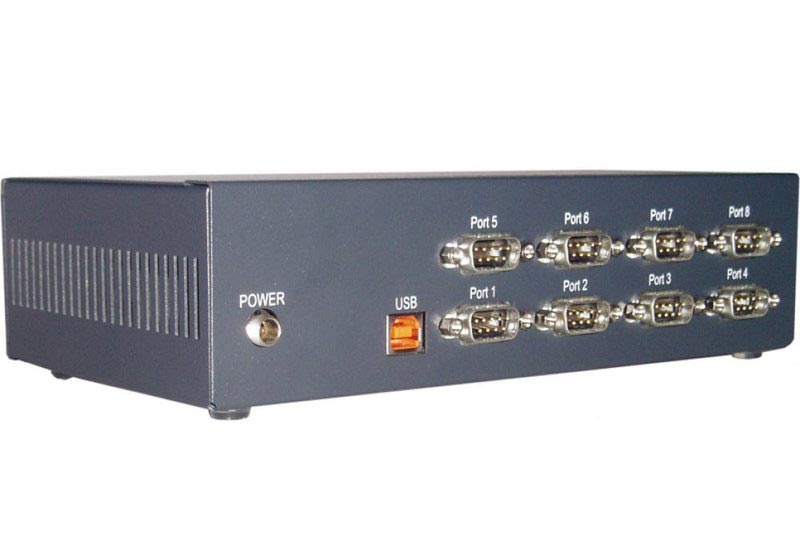

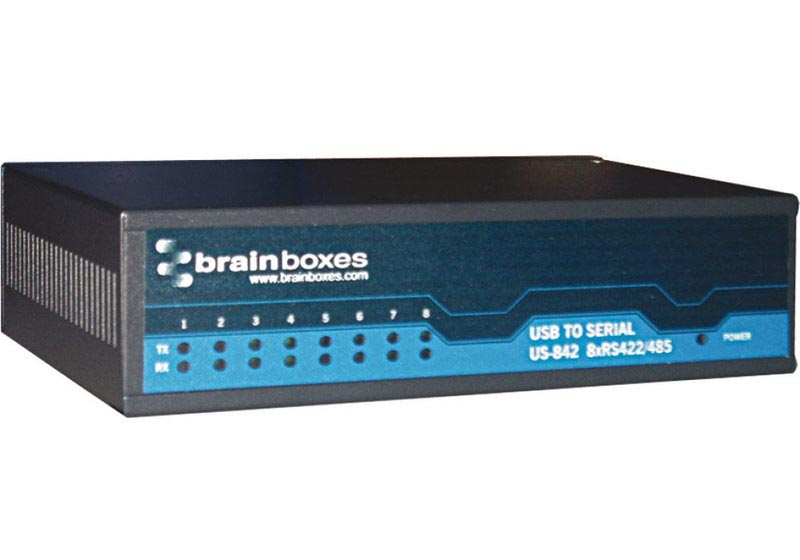

| US-842 | - | 2.0 | 8 | RS422/485, 1 MBd | 9-pin D-sub male | optional power supply adaptor | n. s. | IP30 multi-port box housing (optional DIN-rail mounting kit); 1 m USB cable included |
* USB to serial multi drop hub, RS422/485 serial port multiplexed 8 times for multibus applications.
Included: Module, installation CD including manual, Microsoft signed drivers and utilities, quick start guide, USB cable as mentiones in table above.
Supported opersting systems:Microsoft Windows 10
Microsoft Windows 8 (32 bit and 64 bit editions),
Microsoft Windows 7 (32 bit and 64 bit editions),
Windows Server 2008 (32 bit and 64 bit editions),
Windows Vista (32 bit and 64 bit editions),
Windows XP 32 bit and 64 bit editions),
Mac OS X,
Linux,
single-port versions also Raspberry Pi.
Information on product safety:
Manufacturer:
Brainboxes Limited, 18 Hurricane Drive, Liverpool International Business Park, Speke, Liverpool L24 8RL/GBR
www.brainboxes.com
Responsible person:
Meilhaus Electronic GmbH, Am Sonnenlicht 2, 82239 Alling/DEU
info@meihaus.com
