Brainboxes MK Series Mounting Kits
Description
Files/Downloads
Brainboxes Mounting-Kits
Help to mount Brainboxes modules to DIN rails, wall, in cabinets etc.
Model Overview
| Model | Description | For... |

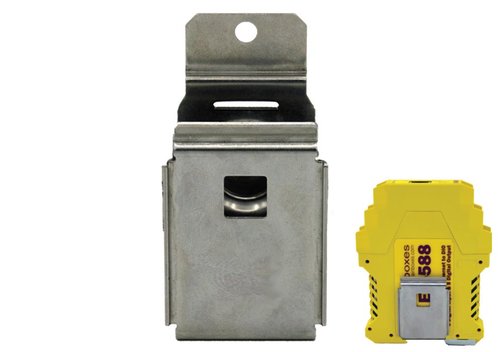

| MK-081 | DIN rail module wall/surface mounting clip, cabinet space saver | ES-511, 522, 551, 571, ED-588, 527, 516, 560, 549, 582, 492, 538, SW-504, 505, 515, 525 |

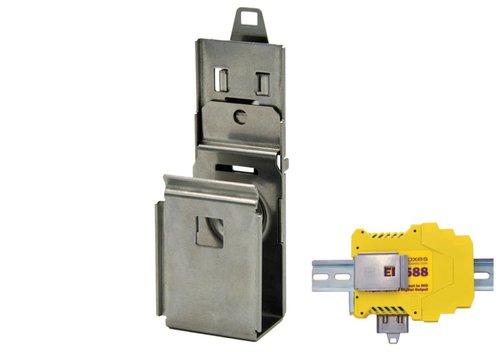

| MK-092 | DIN rail module right angle mounting clip, cabinet space saver | |

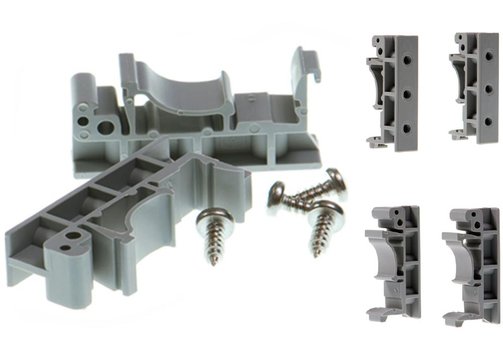

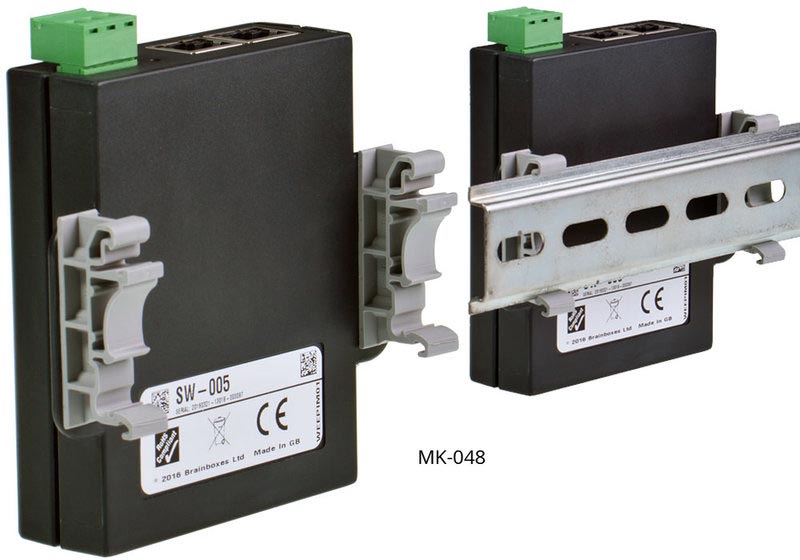

| MK-048 | DIN rail mounting kit for 2-port ES/US/ED | ES-246, 257, 313, 320, 357, 057, 020, 042, 446, 457, 420, 413, US-257, 313, ED-008, 004, 038, 204, SW-005 |

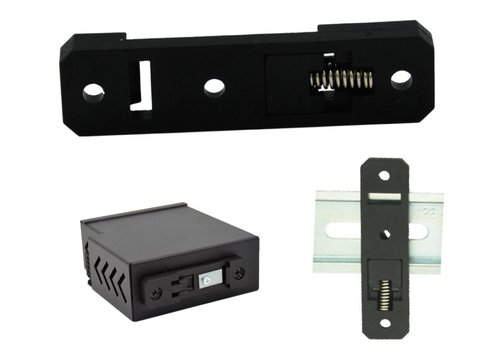

| MK-103 | Spring loaded DIN rail mount, 15 mm width | All Brainboxes modules |

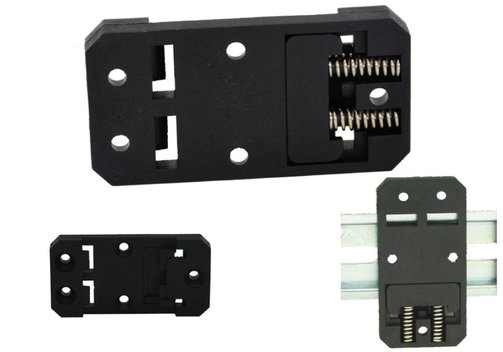

| MK-114 | Spring loaded DIN rail mount, 35 mm width | All Brainboxes modules |

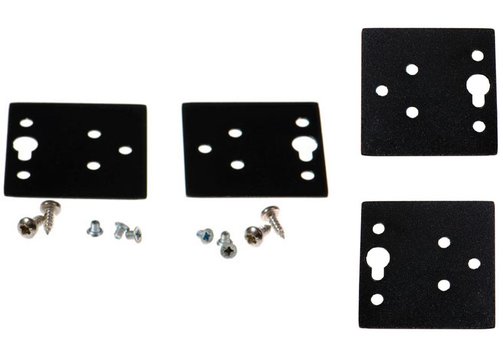

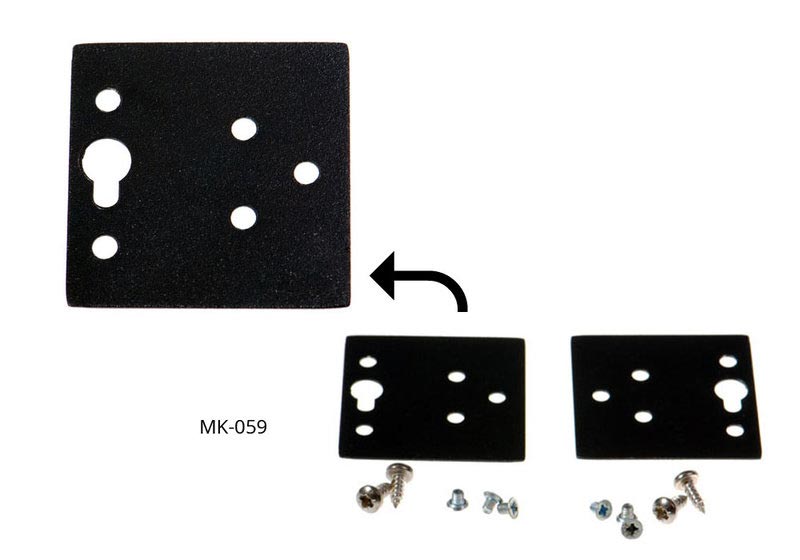

| MK-059 | Wall mounting kit for ES/US 4- and 8-port | ES-279, 346, 701, 842, US-279, 346, 601, 701, 842 |

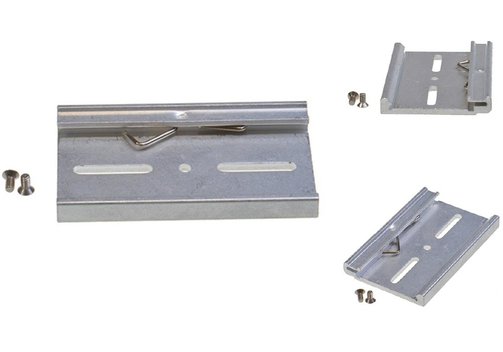

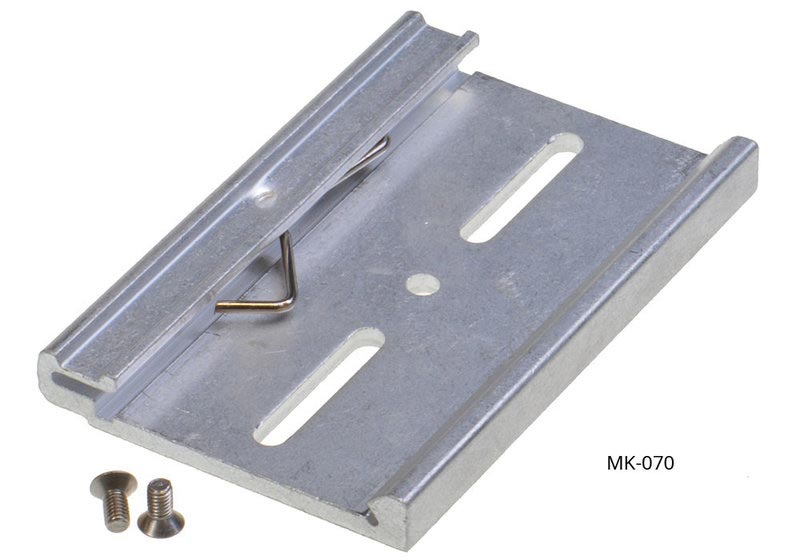

| MK-070 | Snap-in DIN rail clip kit for ES/US 4- and 8-port | |

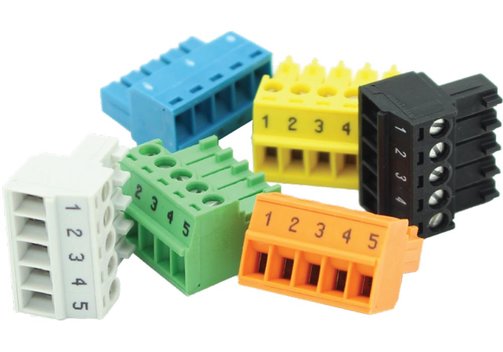

| MK-588 | 6 pack colored ED-5XX/ES-5XX 5-way 3.5 mm pitch pluggable blocks | ES-511, 522, 551, 572, ED-516, 527, 538, 549, 560, 582, 588, 593, BB-400 |

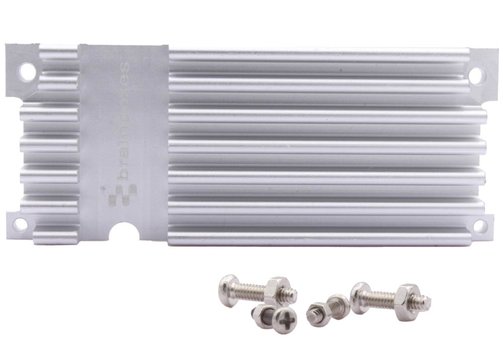

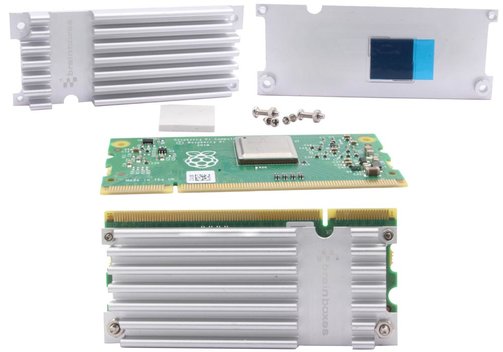

| MK-923 | Aluminum heatsink; sits in direct contact with the BB-400's Raspberry Pi compute module’s integrated processing chip (SoC). The surface area of the heatsink is maximised to most efficiently utilise thermal conduction and draw heat away from the processor | BB-400, BB-411 |
