B+K Precision BK5335 Power Meter

Benefits of the BK5335B/C - Measurement Device for Single-phase AC/DC Power and Power Quality

• Power meter for power consumption and power quality parameters.
• Supports input ranges up to 600 V_RMS and 20 A_RMS.
• Bandwidth up to 100 kHz.

B+K Precision BK5335 Power Meter

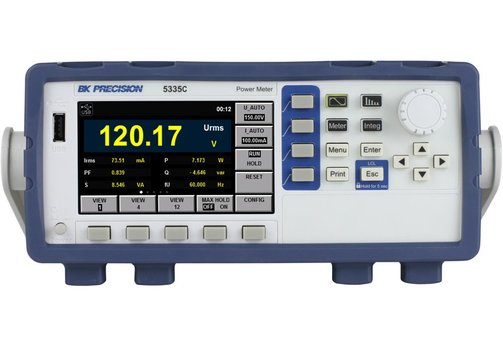

The B+K Precision Model BK5335 is a compact, single-phase AC/DC power meter for measuring and analyzing power consumption and power quality parameters quickly and accurately. It supports power measurements up to 600 V_RMS and 20 A_RMS, with a bandwidth up to 100  kHz. The device measures all AC and DC parameters, including power, current, voltage, power factor, frequency, and phase. Additionally, the meter features a powerful integration function, the ability to perform harmonic measurements to the 50th order and an oscilloscope mode.

• Power meter with 600 V_RMS (CatII) and 20 A_RMS direct input ranges.
• Frequency ranges DC, 0.5 Hz...100 kHz.
• 0.1% basic accuracy for voltage and current measurements.
• 4.3-inch (10,9 cm) color LCD (TFT).
• Simultaneously measure and display up to 12 different measurement parameters.
• Capture inrush current and voltage surge with the peak function.
• Harmonic measurements to the 50th order.
• Integration function with automatic range switching.
• Ability to measure electric energy which is produced or consumed.
• Pre-compliance testing according to IEC/EN62000-3-2/4-7.

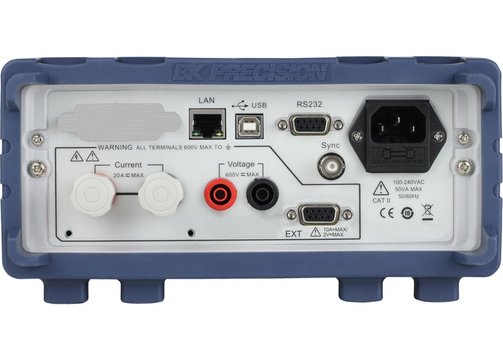

• Standard USB (USBTMC-compliant), RS232 and LAN interfaces (version B with GPIB EOL/obsolete).
• Line and frequency filter capability for reducing unwanted signal noise.
• Optional universal breakout box to simplify connection between power meter and DUT.
