Obsolete. Recommended replacement product: ▸B2900B series

Benefits

6½ digit source measure unit - the versatile combination of source and meter.
Wide application coverage from 100 nV/10 fA to 210 V/3 ADC and 10.5 A pulsed.
Ethernet/LXI, USB and GPIB interfaces.

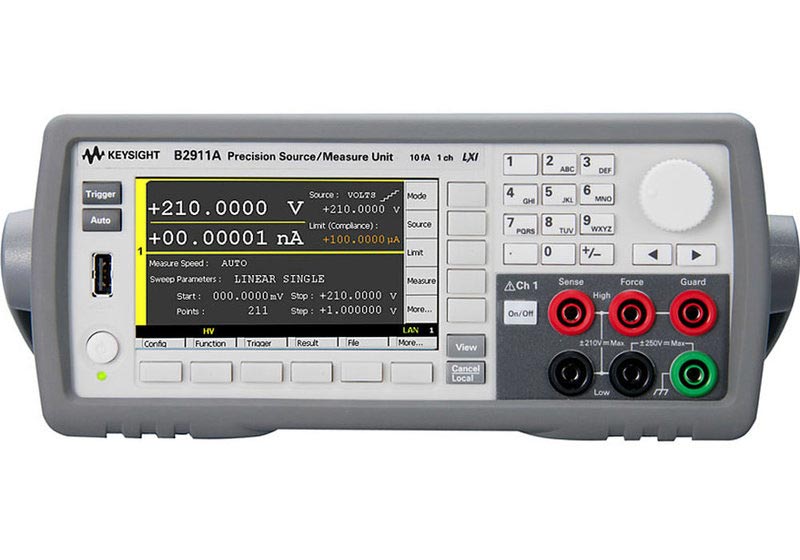

Keysight SMU/Source Measure Unit B2911A, 1-Channel

Keysight B2911A - precision 1-channel source/measure unit (SMU) with the capability to source and measure both voltage and current. Graphic user interface, USB, Ethernet/LXI and GPIB interfaces.

1 channel.
Integrated, high precision voltage/current source (4-quadrant) and measurement capabilities.
Wide range up to 210 V, 3 ADC/10.5 A pulse.
4,3" (approx. 11 cm) colour display for graphic and numeric modes.
High resolution arbitrary waveform generator (AWG) and list sweep functions.
Fast digitizing function.
LXI core conformant, USB 2.0, GPIB, LAN and digital-I/O interface. SCPI compatible.
A BenchVue software licence (BV0003B) is now included with your instrument purchase. BenchVue makes it simple to connect, control instruments, and automate test sequences.

Model Overview

Model			B2911A
Channels			1
Max. output	Voltage		210 V
	Current	DC	3.03 A
		pulsed	10.5 A
	LPower		31.8 W
Source	Max. digits	Digits	6½
	Min. resolution	Voltage	100 nV
		Current	10 fA
Measurements	Max. digits	Digits	6½
	Min. resolution	Voltage	100 nV
		Current	10 fA
Min. programmable intervall for list sweep/AWG waveform			10 µs
Min. trigger intervall for digitizing (max. sample rate)			10 µs (100,000 pts/s)
View modes	Single view		yes
	Dual view		-
	Graph view		yes
	Roll view		yes

Included: SMU B 2911A, power cord, quick start guide, product reference CD, software CD.
Software: Application software, IVI-COM driver. BenchVue enabled. A BenchVue software licence (BV0003B) is now included with your instrument purchase. BenchVue makes it simple to connect, control instruments, and automate test sequences.
Note: The recommended calibration interval for these devices is 12 months. Call or send an E-Mail for more information on calibration!
