GMC-I Apollo 600+ (M711B) Tester per EN50678/EN50699 (DIN VDE 0701/DIN VDE 0702)
Benefits of the Apollo 600+ Safety Tester
- Color graphic display and integrated camera.
- Tester per EN50678/EN50699 (DIN VDE 0701/DIN VDE 0702).
- Customizable sequences for device testing.
GMC-I Apollo 600+ (M711B) Tester per EN50678/EN50699 (DIN VDE 0701/DIN VDE 0702)

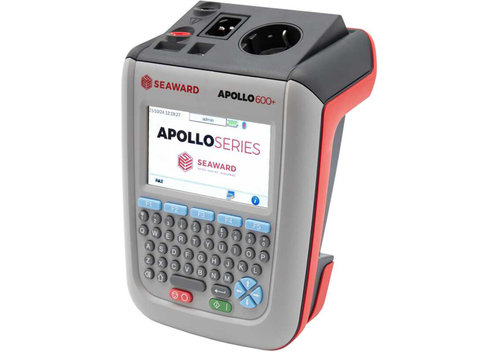

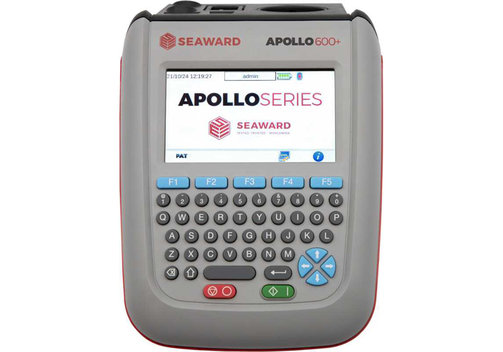

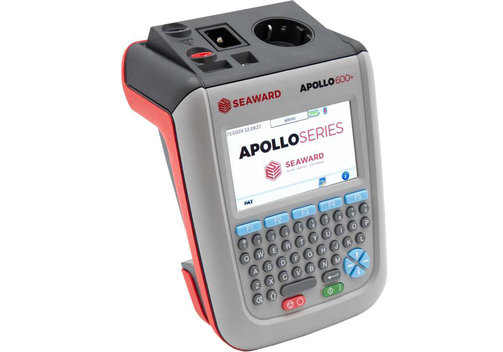

The GMC-I/Seaward Apollo 600+ is a test instrument for testing per EN50678/EN50699 (DIN VDE 0701/DIN VDE 0702). The device is equipped with an earthing contact plug and an earthing contact test socket. The comprehensive test instrument has a German-language user menu. The Apollo 600+ features an integrated camera for photo documentation, a USB port for data transfer and an extensive range of test functions for testing portable equipment with user-configurable test sequences. The Apollo 600+ offers sufficient memory capacity for up to 50,000 test objects.
- Color graphic display.
- Integrated rechargeable battery (for passive tests and backup).
- Integrated camera for photo documentation.
- Customizable sequences for device testing (up to 100 sequences can be stored).
- Bidirectional data transmission by means of PATGuard3 Elite.
- 2 probe tests for permanently installed devices are possible (RPE and RISO).
- Integrated data storage for up to 50,000 objects.
- Protective conductor resistance measurement with 200 mADC.
- Insulation resistance measurement (500/250 V).
- Leakage current measurement.
- Direct method, differential current method, alternative method: protective conductor current, touch current.
- Continuity testing for cold appliance cables and extension cords (single-phase).
- PRCD time to trip (30 mA 1xIΔN and 5xIΔN).
- Protection class I per EN 61140.
- Measuring category: 300 V CAT II.
Included: APOLLO 600+, 1x storage pouch, 2x measurement cables (red and black, 1.2 m), 2x test probes (red and black), 2x plug-on alligator clips (red and black), 1x cold appliance cable (0.5 m, black), 1x Apollo check box (for self-test), 1x USB cable (USB A-to-B), 1x UKAS calibration certificate, 1x condensed operating instructions (German), 1x one-year license for PATGuard3 Elite.
Information on product safety:
Manufacturer:
Gossen Metrawatt GmbH GMC-Instruments Group, Südwestpark 15, 90449 Nürnberg/DEU
www.gossenmetrawatt.com
