AnyplaceUSB-S2/-S4 2- and 4-Port USB over Ethernet Server
Benefits of the AnyplaceUSB-S2/-S4 Networked USB 2.0 Over Ethernet Device Ports
- USB over IP server.
- 2 or 4 USB ports can be shared over Ethernet network.
- High data security with password authorization and traffic encryption.

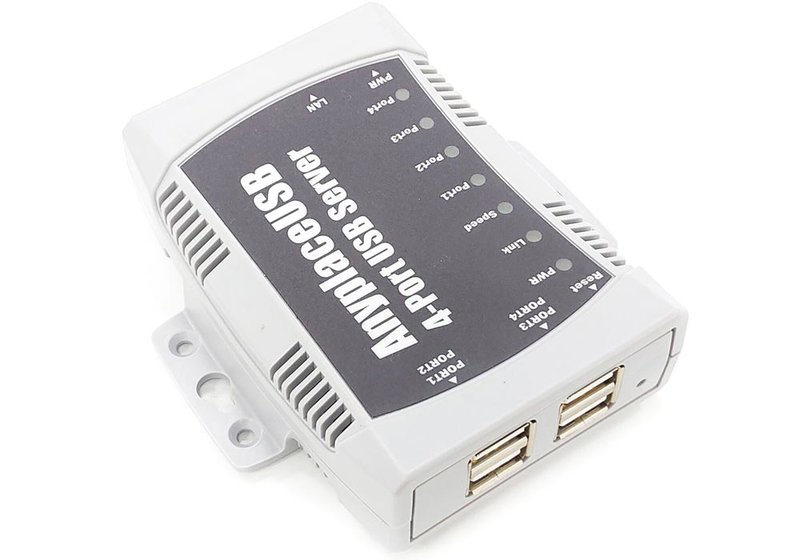

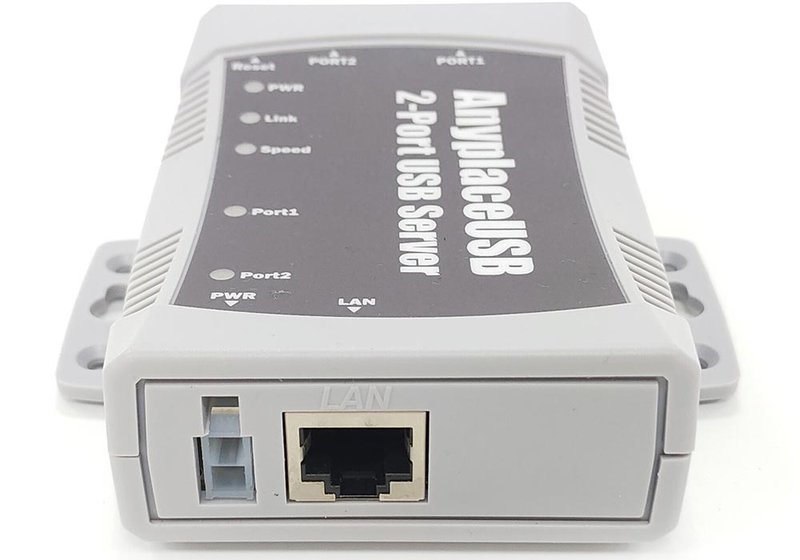

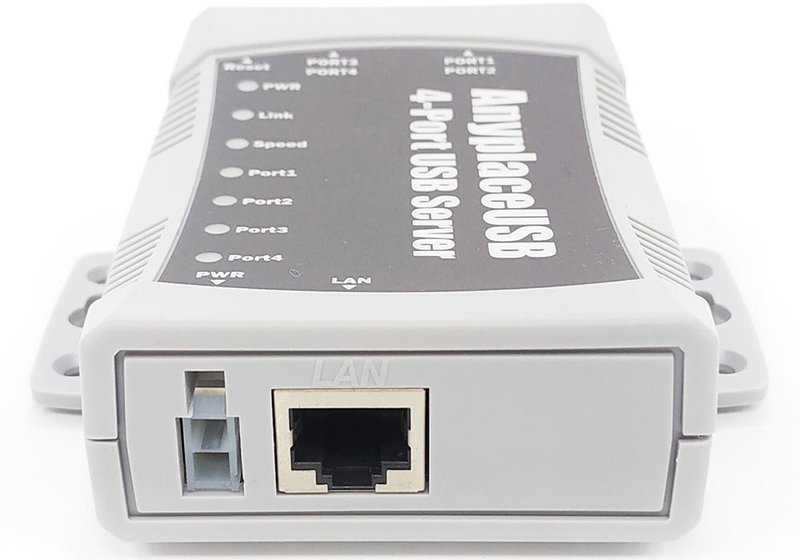

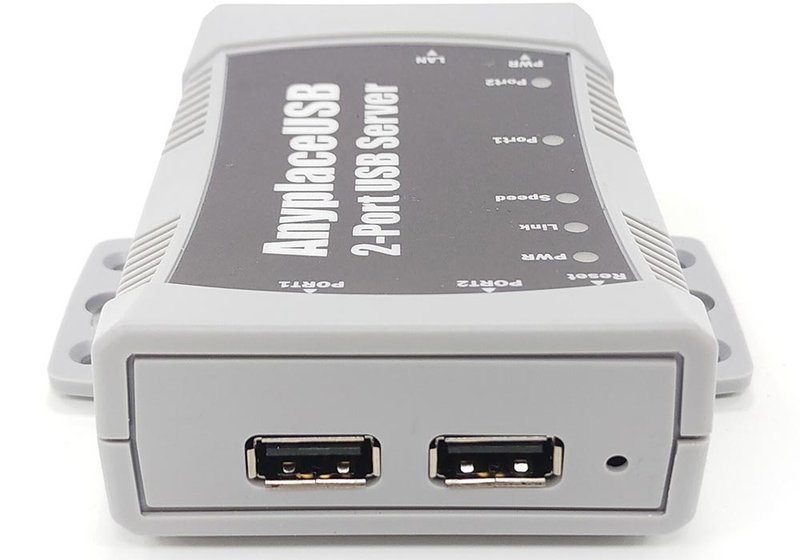

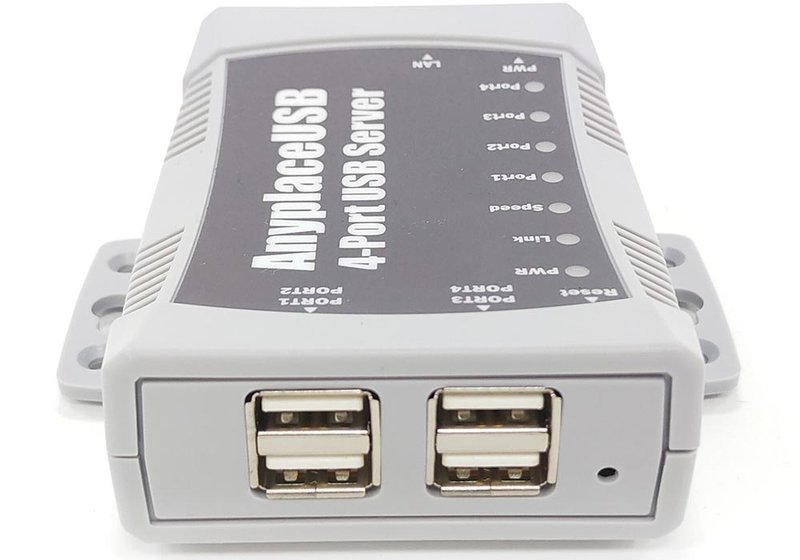

AnyplaceUSB-S2/-S4 2- and 4-Port USB over Ethernet Server

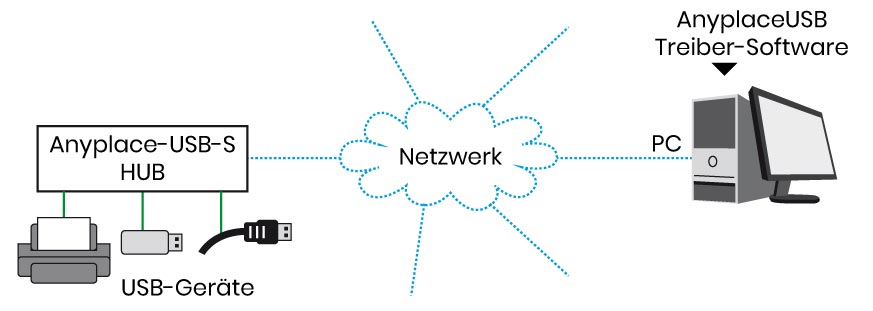

AnyplaceUSB-S2 and -S4 are compact USB over IP servers. They support two or four USB 2.0 ports. The servers offer USB over network sharing functionality. The USB device connected to the AnyplaceUSB-S2/-S4 module can be shared and accessed by network computers over a wired or wireless network from anyplace in the world. The USB over IP server, when used in conjunction with the AnyplaceUSB software, enables USB remote connection. The software app makes the USB port available to be accessed, shared and used over IP, LAN, WAN, VLAN, VPN and the internet from any remote location.
- Provides two or four networked USB 2.0 over Ethernet device ports.
- Password authorization and traffic encryption for data security and safety.
- Any authorized users in an office next door or in another country may remotely access your USB devices through AnyplaceUSB app client.
- Supports high speed isochronous USB devices.
- Able to share USB security software protection dongles conveniently using features of AnyplaceUSB software program.
- LEDs for power and USB status indication.
- Includes a DC 12 V/1 A switching power adapter.
- CE, FCC approval.
Model Overview
Model | AnyplaceUSB-S2 | AnlyplaceUSB-S4 |
Part number | 856021 | 856041 |
USB ports | 2 | 4 |
USB | USB 2.0 and 1.1 compatible; 480 Mbps, USB 2.0 HighSpeed | |
Ethernet ports | 1 | 1 |
Ethernet | 10/100 Base-T Fast Ethernet, RJ45 connector; protocols: TCP/IP, static IP, DHCP | |
Protection | Overcurrent protection 500 mA | |
LED | System status, network | |
Power | External power adaptor (included), DC 12 V/1 A; 500 mA downstream power | |
Dimensions (mm) | 106 x 97 x 32; 110 g; plastic chassis suitable for DIN rail mounting | |
Environmental | Temperature 0...55°C (operating), -20...75°C (storage), 5...90% relative humidity, non-condensing | |
Safety Approvals | CE, FCC |
Information on product safety:
Manufacturer:
Titan, 7F., No.111, Xiyuan Rd. Zhongli Dist., Taoyuan County 320/TWN
www.titan.tw
