Keysight AC6802B AC Power Source, 1000VA
Benefits of the Keysight AC6802B AC/DC Power Supply up to 1000 VA/800 W
- Single-phase AC power source up to 1000 VA. DC output mode 800 W.
- Max. RMS current 10 A/5 A.
- Measurement of AC voltage, current, power.
Keysight AC6802B AC Power Source, 1000 VA

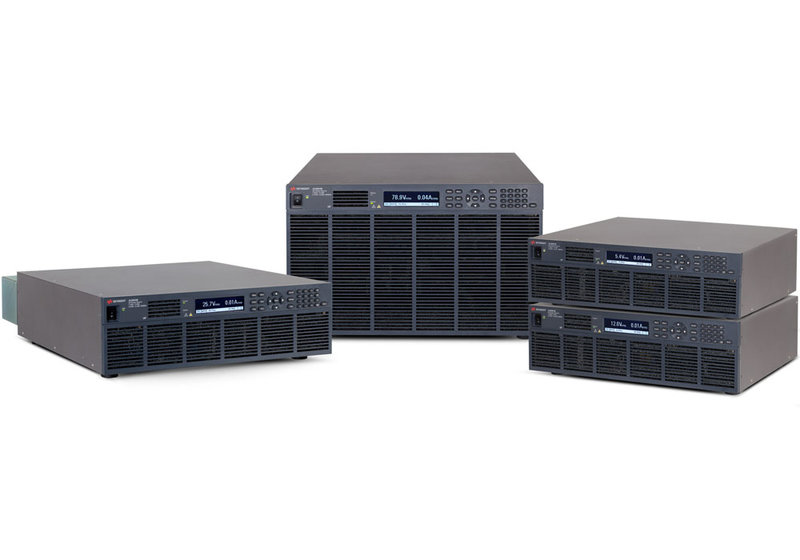

Keysight's AC6800 Series basic AC sources (model AC6802B) offer the quality and capability you need: Intuitive user interface - if you've used an Keysight DC power supply, you'll feel right at home with these AC sources. The AC6802B is the model with 1000 VA power. Flexible I/O - LAN/LXI Core and USB (standard), and GPIB (optional). And you can access and control the source remotely via a standard browser.
- Single-phase AC source with max. power up to 1000 VA to meet your basic AC source requirements.
- Voltage range 155 VRMS/310 VRMS.
- DC output mode max. power 800 W.
- An intuitive user interface tested over time.

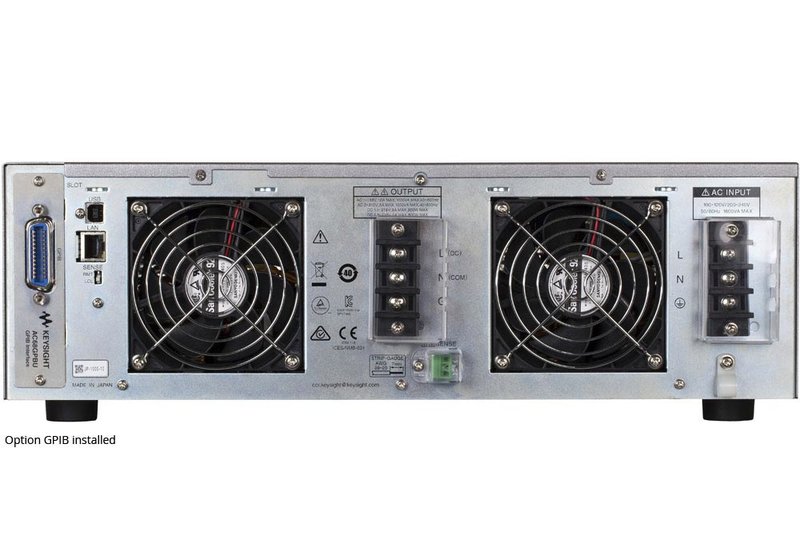

- Flexible IO: LAN/LXI Core and USB (standard), and GPIB (optional).
- Remote sensing.
Model Overview
| Model | AC 6802A |
| Phases | Single-phase |
| Max. output power | 1000 VA |
| AC output mode | |
| Voltage range | 155 VRMS/310 VRMS |
| Voltage setting accuracy | 0.3%/0.25% full-scale |
| Max. RMS current | 10 A/5 A |
| Maximum peak current | 30 A/15 A |
| Frequency | 500 Hz |
| Measurement | Voltage, current, power |
| DC output mode | |
| Voltage range | 219 V/438 V |
| Max. current | 8 A/4 A |
| Maximum instantaneous current | 24 A/12 A |
| Power | 800 W |
| Interfaces | LAN/LXI-Core with remote web interface, USB, optional GPIB |
Note: The recommended calibration interval for these devices is 12 months. Call or send an E-Mail for more information on calibration!
Agilent’s Electronic Measurement Group is now Keysight Technologies.
Information on product safety:
Manufacturer:
Keysight, 1400 Fountaingrove Parkway, Santa Rosa, CA/USA
www.keysight.com
(Keysight Technologies Deutschland GmbH)
