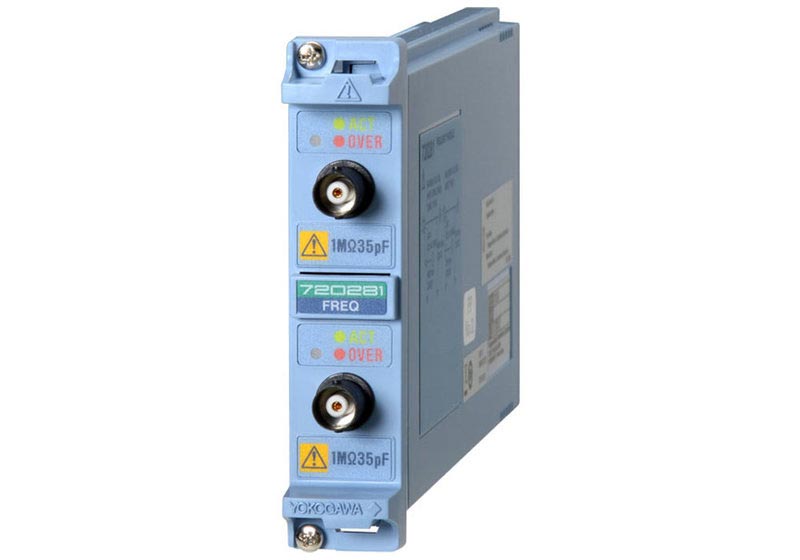

Module 720281 for Yokogawa DL350, Frequency

Module for the Yokogawa ScopeCorder DL350 - Frequency - 720281

• Module 720281 for frequency.
• Sample rate 1 MS/s.
• Resolution 16 bit.
• Resolution 625 ps.
• 2 channels, isolated.
• Max. measurement voltage 420 V (with optional probe), 42 V (direct).
• Accuracy ±0.1% (frequency).
• Measurement frequency of 0.01 Hz to 500 kHz.
• Measured parameters frequency, rpm, period, duty, power supply frequency, distance, speed.
